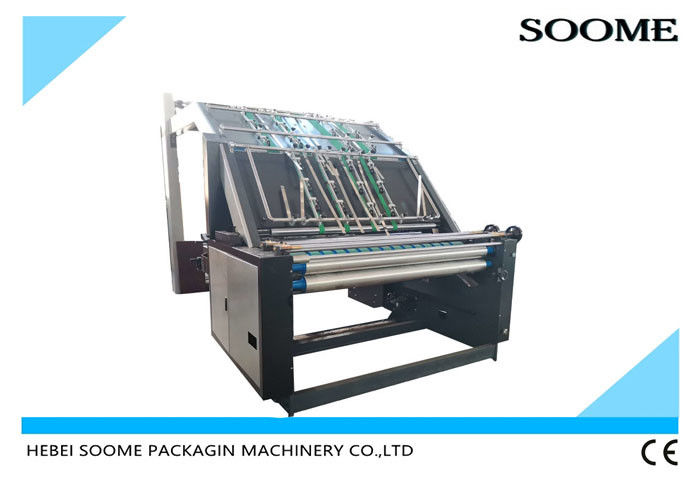

Semi Auto Vacuum 100pcs/Min Flute Laminating Machine

Place of Origin Hebei province China
Brand Name SOOME
Certification CE
Model Number 1300A/1450A/1550A/1650A
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details plastic film wrapping
Delivery Time 25 days after depoist
Payment Terms T/T, Western Union, L/C
Supply Ability 100 set/mounth
Product Details
Economic Speed 0-100pcs/min Laminating Precision ±1
Power 7KW Size 10m×2m×2.2m
Weight Bout 3.5t Touch Screen Control PLC
Display Screen Delta (Taiwan) Automatic Grade Semi-Automatic
Driven Type Electric Color Customer's Request
High Light

Vacuum Flute Laminating Machine

,

Semi Auto Flute Laminating Machine

,

100pcs/min Flute Laminating Machine

Leave a Message
Product Description

Semi-auto vacuum automatic feeding system flute laminator machine



This semi-auto corrugated flute laminating machine use bottom sheet automatically snet by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. Flute laminating machine suitable for color top sheet and corrugated paper laminating , color top sheet and grey cardboard laminating.



Main electrical configuration:



Flute laminating machine full computer touch screen control, Panasonic PLC, INVT servo drive motor. The pressure and transmission of the main engine are Taiwan Delta frequency conversion control, automatic gluing control, no glue alarm, counting, counting reached alarm and other functions.



Main motor:



 Flute laminating machine with high-frequency hardening of sprocket and synchronous wheel, synchronous belt and synchronous wheel are the products of Xiamen joint venture; positioning belt is Italian technology.



1. Semi auto corrugated flute laminating machine

2. Flute laminating machine using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking

3. The humanized design that manually feeding from the front makes delivery more easier and efficient.

4. Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.

5. Flute laminating machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm

6. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste.

7. The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue at high speed.

8. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick

9. Control of water tank cleaning cycle using an independent method, clean, hard rubber product

10.Flute laminating machine suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating

11. This flute laminating machine used for color top sheet 175-500g and grey cardboard paper laminating

Technical index:



Model 1300A 1450A

Max size of laminating

1300mm×1250mm

1400mm×1250mm

Min size of laminating

360mm×360mm

360mm×360mm

Economic speed

0-100pcs/min

0-100pcs/min

Laminating

±1

±1

Power

7KW

7.5KW

Size

10m×2m×2.2m

10m×2.1m×2.2m

Weight

About 3.5t

About 4 t
