Touch Screen Auto Flute Laminator Corrugated Cardboard Box Lamination Machine

Basic Information
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: SMTM-QZD
Minimum Order Quantity: 1 Set
Price: Contact
Packaging Details: Wooden case or plastic film 1*40'' container
Delivery Time: 20 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets/month
Detail Information
Packaging Material: Paper,plastic Usage: Laminating Cardboard Material
Automatic Grade: Automatic Voltage: As Your Country Requirement
Function: Pressing Warranty: 12 Months
High Light:

paper mounting machine

,

auto feed laminator


Product Description

Touch Screen Auto Flute Laminator Corrugated Cardboard Box Lamination Machine



Introduction:



◆ The vacuum suction-type feeding system can lead the paper accurately into the machine;cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient.

◆ Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking.

◆ The machine operation is stable, surface paper with corrugated paper joint very Accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust.

◆ Machine uses touch-screen/PLC/servo motor control system, the circuit system is stable, and can automatically display the failure alarm.

◆ Automatic gluing, and the glue can be used circulatory, avoid glue waste.

◆ Roller design scientifically, avoid glue fly out when the speed is high.

◆ Pressure rollers adopt unilateral adjustment, convenient and fast.

◆ Rocker controls wash roller's fluctuation, easy cleaning.

◆ Counter designs scientifically, easy recording the amount you have been worked.



Technological parameter:



Model SMTM-QZD1300A SMTM-QZD1450A SMTM-QZD1550A SMTM-QZD1650A
Max size of laminating 1300mmX1100mm 1400mmX1100mm 1500mmX1100mm 1600mmX1100mm
Min size of laminating 400mmX400mm 400mmX400mm 400mmX400mm 400mmX400mm
Economic speed 0-100pcs/min 0-100pcs/min 0-100pcs/min 0-100pcs/min
Laminating precision ±1.5 ±1.5 ±1.5 ±1.5
Power 10kw 12kw 12kw 12kw
Size 10mX2mX2.4m 10mX2.05mX2.4m 10mX2.15mX2.4m 10mX2.25mX2.4m
Weight About 5t About 6t About 6t About 6t



Main equipment:



Display screen Delta (Taiwan)
Switching power supply OMRON
Mainframe Motor Tianjin Tong'de'li
Feeder Japanese Rigung
Geared motors Shanghai Renmin
Vacuum pump EUROVAC (Taiwan)
Vortex Pump Shanghai Hengli
Synchronous belt Ningbo Beidi(Joint venture)
Bearing WTJB,HRB,LYC
The host chain CHOHO (sino-JapaneseJoint venture)
Transfer press belt Italy(Joint venture)
PLC Panasonic(Japanese)
Contactor SCHNEIDER(The French)
The host inverter Delta (Taiwan)
Pressure platform inverter Delta (Taiwan)
Pressure platform motor Shanghai oute

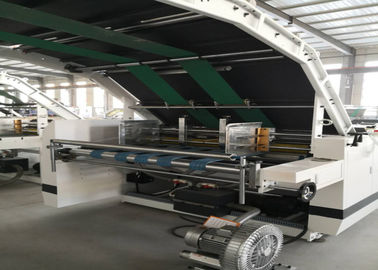

Touch Screen Auto Flute Laminator Corrugated Cardboard Box Lamination Machine 0Touch Screen Auto Flute Laminator Corrugated Cardboard Box Lamination Machine 1
