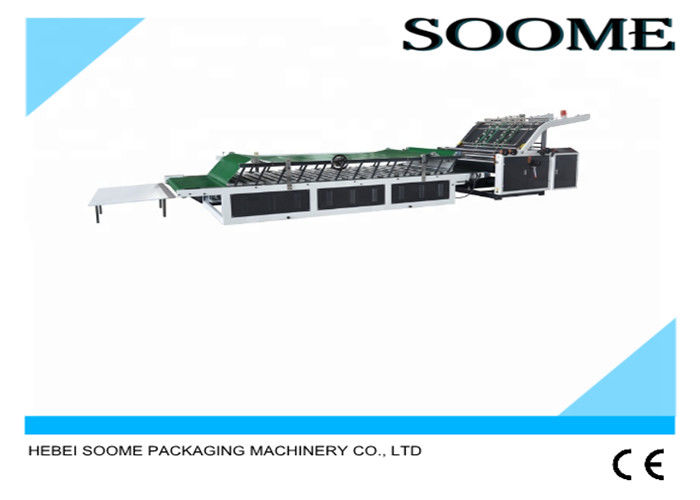

Semi Automatic Flute Laminating Machine Heavy Duty Corrugated Laminator Machine
| Place of Origin | Made in China |
|---|---|
| Brand Name | SOOME |
| Certification | CE |
| Model Number | SMTM-BZD-1500 |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | Wrapped with film or in wooden case |
| Delivery Time | 30-35 days after deposit |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Automaticity | Semi Automatic | Economic Speed | 0-120pcs/min. |
|---|---|---|---|
| Bottom Board Range | A / B / C / E Flute | Max. Size Of Cover Face | 1500x1100mm |
| Min. Size Of Cover Face | 360x360mm | Warranty | 1 Year |
| Machine Size | 10.66×2.23×1.26m | Machine Weight | 2500kg |
| High Light | paper mounting machine,auto feed laminator |
||
Product Description
Semi Automatic Flute Laminating Machine Heavy Duty Corrugated Laminator Machine
I. General introduction
Flute laminating machine is used in packaging field. For high quality corrugated cartons making.Usually for the high quality cartons, the top surface paper is printed by offset machinery so the patterns is very clear and beautiful. Surface paper quality also is high grade. So use laminating machine to paste the high quality surface paper on the corrugated board which without top paper. Then the flat board can be very delicate.
II. Features
This machine has adsorbing wind belt transmission function, and settle the problern of corrugating paper arch and hold up.Adopt bottom paper pushing feeding paper,orientation exact,convenience stable,high speed,low noise.Ensure the machine capability stable and reliable,users can adopt two jointing function of in-phase and front according to self need.
III. Technological parameter
| Model | SMTM-BZD-1300 | SMTM-BZD-1500 |
| Max. size of cover face | 1300×1100mm | 1500×1100mm |
| Min. size of cover face | 360×360mm | 360×360mm |
| Machinery speed | 0-120m/min | 0-120m/min |
| Whole machine size | 10.66×1.98×1.26m | 10.66×2.23×1.26m |
| Total power | 4.3kw | 4.3kw |
| Tissue request clip paper | ≥200g/m2 | ≥200g/m2 |
| Bottom paper request dip paper | ≥250g/m2 | ≥250g/m2 |
