Heavy Duty Flute Laminating Machine , Top Paper Auto Flute Laminator 12kw

Place of Origin Cangzhou, China
Brand Name SOOME
Certification CE
Model Number SMTM-QZD-1450
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Wrapped with film or in wooden case
Delivery Time 30-35days after deposit
Payment Terms T/T, L/C, Western Union
Supply Ability 35sets per month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Application For Printed Top Paper Pasting On Bottom Corrugated Board Automaticity Automatic
Design Speed 6000 Sheets / H Bottom Board Range A / B / C / E / F Flute
Max. Size Of Cover Face 1100mm X 1450mm Min. Size Of Cover Face 350mmx350mm
Lminating Precision ≦±1.5mm Power 12kw
Machine Size 12.5m X 2.25m X 1.5m Machine Weight 7200kgs
High Light

paper mounting machine


automatic flute laminator

Leave a Message
Product Description

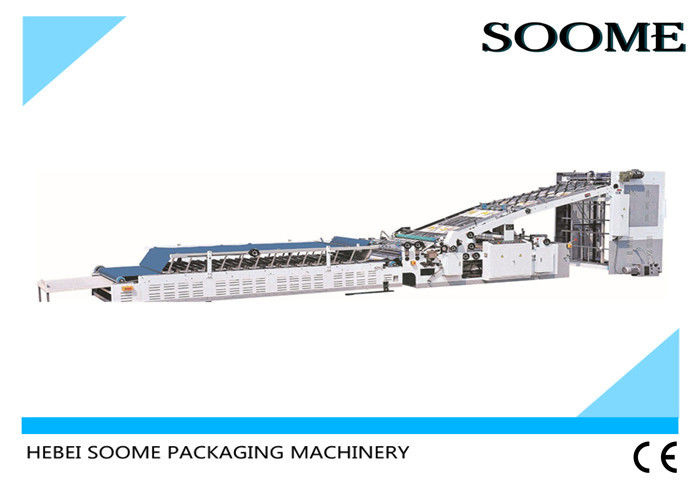

Heavy Duty Flute Laminating Machine , Top Paper Auto Flute Laminator 12kw


I. General introduction


Flute laminating machine is used in packaging field. For high quality corrugated cartons making.


Usually for the high quality cartons, the top surface paper is printed by offset machinery so the patterns

is very clear and beautiful. Surface paper quality also is high grade. So use laminating machine to paste the high quality surface paper on the corrugated board which without top paper. Then the flat board can be very delicate.


II. Main feature


1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.


2. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.


3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.


4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.


5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.


6. Roller design scientifically, avoid glue fly out when the speed is high.


7. Pressure rollers adopt one side adjustment, convenient and fast.


8. Rocker controls wash roller's fluctuation, easy cleaning.


9. Counter designs scientifically, easy recording the amount you have been worked.


III. Technological parameters:


Model SMTM-QZD-1300 SMTM-QZD-1450 SMTM-QZD-1600

Max. size of cover face

1100mmx1300mm 1400mm x 1250mm 1600mm x 1250mm

Min. size of cover face

350mm x 350mm 350mm x 350mm 350mm x 350mm

Design speed

6000sheets/h 6000sheets/h 6000sheets/h


≦±1.5mm ≦±1.5mm ≦±1.5mm

Total power

12kw 12kw 13kw

Machine length

12.5m 12.5m 15m


About 6.8T About 7.2T About 8.0T
