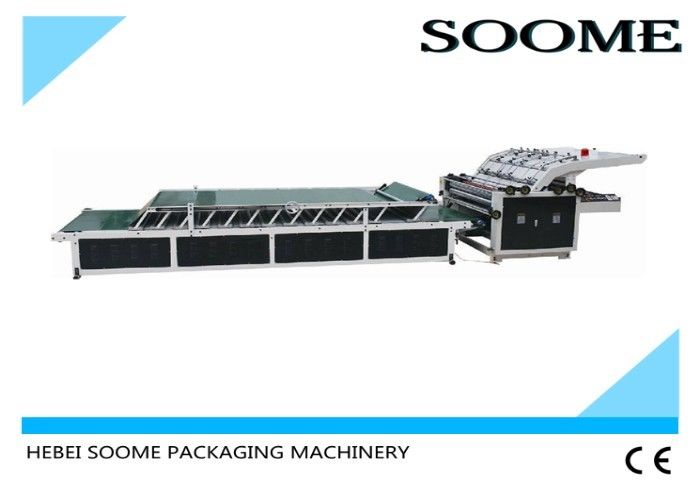

PLC Control Paper Lamination Machine Adsorption Flute Corrugated 1300mm Size

Place of Origin China Hebei Dongguang
Brand Name SOOME
Certification CE
Model Number SMTM-BZD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wooden or plastic * 20”container or LCL
Delivery Time Goods in stock
Payment Terms L/C, T/T, Western Union
Supply Ability 30 set / month
Product Details
Color Customized Automatic Grade Semi-automatic
Machine Size Machine Model Usage For Corrugated Paperboard Box
Near Airport Beijing,Tianjin,Jinan,Zhengding Warranty 1 Year
High Light

paper mounting machine


automatic flute laminator

Leave a Message
Product Description

PLC Control Paper Lamination Machine Adsorption Flute Corrugated 1300mm Size


  Paper mounting machine belongs to the field of paper making machinery, especially a papermounting machine used to paste two sheets of paper together. It is composed of paper feeding mechanism, paper mounting mechanism and press paper mechanism. It sets two wind heads together on the paper feeding mechanism. It sets the intermediate positioning mechanism on the paper mounting mechanism and divides the paper mounting mechanism into two paperboards. A wing shaped spring piece is arranged on both sides of the paper mounting mechanism. The intermediate positioning mechanism is composed of a middle orientation guide block and a lifting mechanism. The utility model has simple structure, improves production efficiency and adapts to different sizes of paper requirements.


Important features:


1. Independent research and development,we are the first manufacturer for servo semi-automatic flute laminating.

2. Adopt PLC control system,working is more precision and stable,improved the speed,circuit faults can automatically alarm.

3. This machine adopts Taiwan servo motor,instead of the break,clutch and electronic eye,realized PLC&servo single control independently.

4. Corrugated cardboard auto feeding,as fast as the surface paper’s working.

5. The machine operation is stable,surface paper with corrugated paper joint very accurate.The corrugated paper never pull ahead,surface paper’s location is easy adjust.

6. Automatic gluing,and the glue can be used circulatory,avoid glue waste.

7. Roller design scientifically,avoid glue fly out when the speed is high.

8. Pressure rollers adopt unilateral adjustment,convenient and fast.

9. Rocker controls wash roller’s fluctuation,easy cleaning.

10. Counter designs scientifically,easy recording the amount you have been worked.


Technological parameter:


Model SMTM-BZD1300 SMTM-BZD1500 SMTM-BZD1600
Max size of cover face 1300*1250mm 1500*1250mm 1600*1250mm
Min size of cover face 360*360mm 360*360mm 360*360mm
Economic speed 0-100 Pcs/min 0-100 Pcs/min 0-100 Pcs/min
Laminating precision ±1 ±1 ±1
Power 6 kw 6 kw 6 kw
Size 8.8*1.95*1.7m 8.8*2.15*1.7m 8.8*2.25*1.7m
Weight About 3t About 3.5t About 3.5t


Our service:


Pre-sale: product introduction, technical exchange, non-standard product design, troubleshooting.

In sale: keep good faith contract, ensure timely delivery, keep in touch at any time, to special or complex products, I plant arrange technical personnel to the user for product use and troubleshooting, debugging and maintenance guidance.

After sale: the guarantee period is 12 months out of the factory, in the course of use, regular return visit, consult the user to the product quality use condition, the improvement opinion and so on aspect feedback, in order to further improve the product quality.
