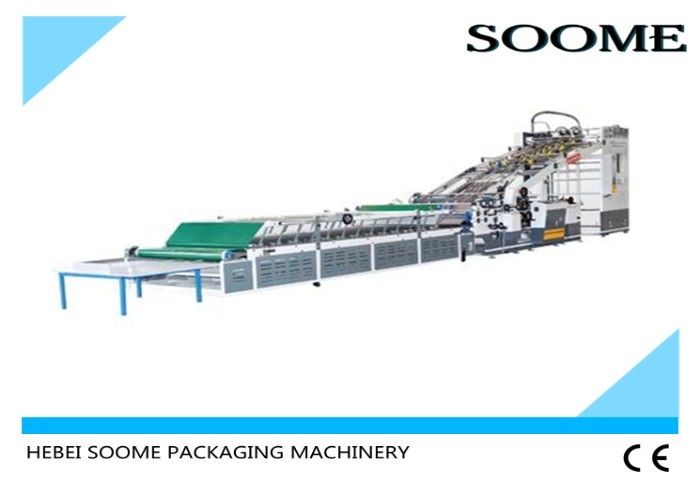

High Precision Lamination Machine With Auto Cutter Tight Assembling Technique

Place of Origin China Hebei Dongguang
Brand Name SOOME
Certification CE
Model Number SMTM-QZD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wooden or plastic * 40”container
Delivery Time 35 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 25 set/month
Product Details
Type Paper Laminator Machine Automatic Grade Automatic
Machine Color Customer's Request Condition New
Max Paper Length 1300,1450,1600mm After-sales Engineer Available To Service Machinery
High Light

paper mounting machine


automatic flute laminator

Leave a Message
Product Description

High Precision Lamination Machine With Auto Cutter Tight Assembling Technique


Performance of the machine:


1. Automatic flute laminating adopts chain pusher and back registion system together with spring blade side lay and vacuum sucking conveying system make this series of machine fit a larger of paper,high precision while remaining the features of easy operation and maintenance.

2. This machine glue roller adopts high design,match with anilox roller and rubber roller,the uniformity of the coating was improved greatly,increase the intensity of draping.Reduce the cost of the customer production.

3. Balance-tested rollers,tight assembling technique,plus timing and tooth belt driving mechanic system makes the machine run at low noise with high precision.

4. The machine adopts automatic glue supply and recyclable glue circulating system.

5. Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable.The electric parts used are all world wide available brand or well-known Chinese brand.

6. All material are inspected according to ISO-9001 standard and key parts such as the harmonic gear and bearings are imported ones.

7. The bottom sheet for this machine can be A,B,C,D,E,F flute corrugated sheet.It can do 3 or 5 ply board to sheet lamination or board to board lamination.The rannge for top paper can be 200-600 GSM with top paper advance or alignment function.




Model SMTM-QZD1300 SMTM-QZD1450 SMTM-QZ1600
Max.size(W*L) 1100*1300mm 1100*1450mm 1400*1600mm
Min.size(W*L) 350*350mm 350*350mm 450*450mm
Laminate precision ≦±1.5mm ≦±1.5mm ≦±1.5mm
Speed 6000 sheets/h 6000 sheets/h 6000 sheets/h
Total power 12kw 12kw 13kw
Length 12.5m 12.5m 15m
Weights 6.8t 7.2t 8.0t


Our service:


Pre sale: product introduction, technical exchange, non-standard product design, troubleshooting.

In sale: keep good faith contract, ensure timely delivery, keep in touch at any time, to special or complex products, I plant arrange technical personnel to the user for product use and troubleshooting, debugging and maintenance guidance.

After sale: the guarantee period is 12 months out of the factory, in the course of use, regular return visit, consult the user to the product quality use condition, the improvement opinion and so on aspect feedback, in order to further improve the product quality.
