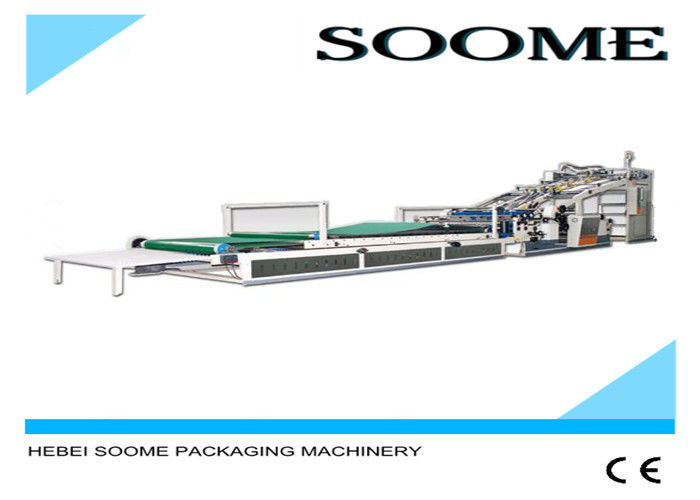

Industrial Flute Laminating Machine Stable Mounting For Corrugated Paper




Laminating machine consists of a paper feeding mechanism, a paper mounting mechanism and a paper pressing mechanism. The paper feeding mechanism is composed of two layers of upper and lower layers. The paper mounting mechanism is composed of two layers of upper and lower mechanisms. It is characterized by setting up two wind heads on the upper mechanism of the paper feeding mechanism and setting a intermediate positioning mechanism on the paper mounting mechanism, and the paper mounting mechanism will be mounted. It is divided into two paper paths. A wing shaped spring sheet is arranged on both sides of the paper mounting mechanism. The intermediate positioning mechanism is composed of a middle orientation guide block and a lifting mechanism, and the middle orientation guide is connected with the lifting mechanism.


Main Feature


1. Suitable for 175-350 grams of cardboard and corrugated paper.

2. The whole machine is controlled by PLC control system with high stability.

3. The bottom paper adopts the suction automatic feeding paper.

4. The facial tissue is humanized and positive for paper feeding, saving labor and convenience.

5. The flattening section is floating type movable flat.

6. Automatic glue replenishment system, and glue recycling.

7. The new concept of the pre - positioning, the bottom paper never ahead of time;

8. Scientific design of measuring roller line speed to avoid glue throwing at high speed.

9. Fast speed, easy to send paper, smooth and accurate operation.

10. use scraper plus circulating water to clean the bottom roll, and the bottom of the paper is cleaner.

11. Single side adjusting mechanism is adopted to adjust the pressure of the press roller.

12. Rack and pinion control the lifting of the sink to facilitate removal and cleaning.


Information For Laminating Machine


1. Top paper must be flat.
2. Ply thickness and quality can feed in this machine:Min.: 2ply E flute,Max.: 4ply A+A flute less than 10mm corrugated sheet must be flat.
3. Servo Specification:1.5KW SERVO MOTOR, Brand: Shilin or Delta from TAIWAN.
4. Electrical parts/ PLC/Motor brand:Adopt 3 Inverter, 1 PLC, brand: Shilin or DELTA from TAIWAN.
5. What component will come along with machine and what other equipment has to arrange by customer:

Machine include: Host machine 1 set, pressure part 1 set, Air compressor 1set, wind pump 1set, glue pump 1 set, table 1 set.Customer arrange: Glue, top paper, corrugated sheet, wire
6. Required Power supply inputs:14kw.
7. What support you will give in first Installation:Operation book and circuit diagram.
8. What spares I have to keep in stock for after sales service and what is dealer and customer price of that list:I will give you some spring as free spare parts. The others are not easy to broken.
9. Specification of glue applying system and glue circulatory system:Automatic gluing, and automatic circulatory.



Max. paper size 1600×1400mm
Min. paper size 450×450
Mini. weight of bottom paper 300gsm
Max. weight of bottom paper 800gsm
Max. thickness of paper 10mm
Mini. weight of face paper 180gsm
Max. weight of face paper 800gsm
