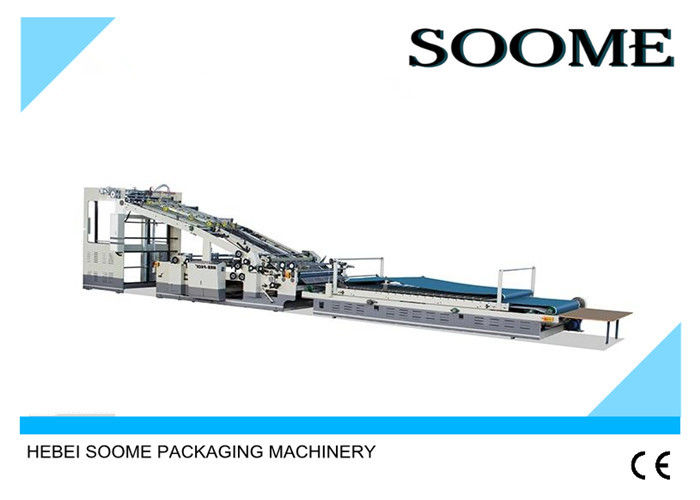

Sheet To Sheet Lamination Machine Corrugated Laminator With Auto Feeder

Place of Origin Made In China
Brand Name SOOME
Certification CE
Model Number SMTM-QZD-1300
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Wapped With Film
Delivery Time 2 Month
Payment Terms L/C, T/T, Western Union
Supply Ability 30 Sets/Month
Product Details
Condition New Material Stainless Steel
Voltage 220V/380V Warranty 1 Year
Power 6KW After Service Engineers Provide Overseas Service.
High Light

automatic flute laminator


auto feed laminator

Leave a Message
Product Description

Sheet To Sheet Lamination Machine Corrugated Laminator With Auto Feeder




Laminating machine belongs to the field of paper making machinery, especially a paper mounting machine used to paste two sheets of paper together. It is composed of paper feeding mechanism, paper mounting mechanism and press paper mechanism. It sets two wind heads together on the paper feeding mechanism. It sets the intermediate positioning mechanism on the paper mounting mechanism and divides the paper mounting mechanism into two paperboards. There is a wing shaped spring piece on both sides of the paper mounting mechanism. The intermediate positioning mechanism is composed of intermediate positioning guide and lifting mechanism. The utility model is simple in structure, improves production efficiency and adapts to different sizes of paper requirements. It is a paper mounting machine with no limit on the size of paper and single and double paper delivery.


Main Feature


1. Independent research and development, adopt advance clutch drive.

2. Adopt PLC control system, working is more precision and stable, improved the speed, circuit faults can automatically alarm.

3. This machine adopts taiwan servo motor, instead of the break, clutch and electric eye, realized PLC & servo single control independently

4. Corrugated cardboard auto feeding, as fast as the surface paper’s working.

5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.

6. Roller design scientifically, avoid glue fly out when the speed is high.

7. Rocker controls wash roller’s fluctuation, easy cleaning.


Information For Laminating Machine


1.Top board/Paper thickness- minimum and maximum:Min.:175g, Max.:350g,Top paper must be flat.
2. Ply thickness and quality can feed in this machine:Min.: 2ply E flute,Max.: 4ply A+A flute less than 10mm corrugated sheet must be flat.
3. Servo Specification:1.5KW SERVO MOTOR, Brand: Shilin or Delta from TAIWAN.
4. Electrical parts/ PLC/Motor brand:Adopt 3 Inverter, 1 PLC, brand: Shilin or DELTA from TAIWAN.
5. What component will come along with machine and what other equipment has to arrange by customer:

Machine include: Host machine 1 set, pressure part 1 set, Air compressor 1set, wind pump 1set, glue pump 1 set, table 1 set.Customer arrange: Glue, top paper, corrugated sheet, wire
6. Required Power supply inputs:14kw.
7. What support you will give in first Installation:Operation book and circuit diagram.
8. What spares I have to keep in stock for after sales service and what is dealer and customer price of that list:I will give you some spring as free spare parts. The others are not easy to broken.
9. Specification of glue applying system and glue circulatory system:Automatic gluing, and automatic circulatory.
10. Scope of standard warranty:1 year warranty for the machine. But not include electric parts.


Model SMTM-QZD-1300
Max. paper size 1300×1100mm
Min. paper size 400×400
Mini. weight of bottom paper 300gsm
Max. weight of bottom paper 800gsm
Max. thickness of paper 10mm
Mini. weight of face paper 180gsm
Max. weight of face paper 800gsm


Sheet To Sheet Lamination Machine Corrugated Laminator With Auto Feeder 0
