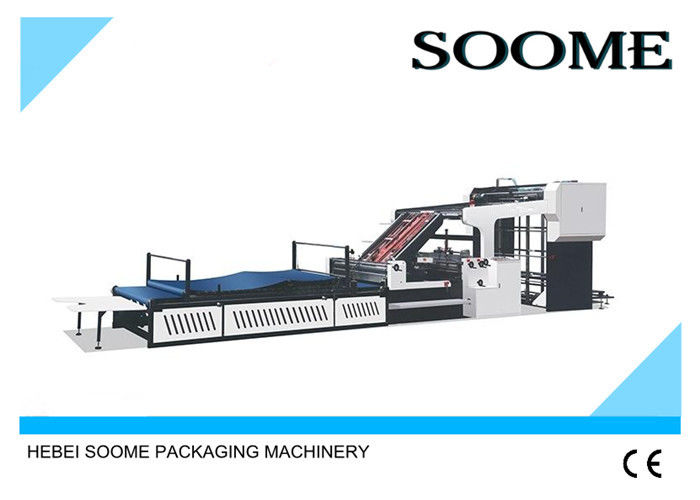

Electrical Auto Lamination Machine Intelligent With Vacuum Suction Type

Electrical Auto Lamination Machine Intelligent With Vacuum Suction Type

  • Electrical Auto Lamination Machine Intelligent With Vacuum Suction Type
  • Electrical Auto Lamination Machine Intelligent With Vacuum Suction Type
  • Electrical Auto Lamination Machine Intelligent With Vacuum Suction Type
Electrical Auto Lamination Machine Intelligent With Vacuum Suction Type
Product Details:
Place of Origin: Made In China
Brand Name: SOOME
Certification: CE
Model Number: SMTM-QZD1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wapped With Film
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Condition: New Automatic Grade: Automatic
Voltage: 220V/380V Weight: 4.5T
Design Speed: 120 PCS/Min Driven Type: Electric
High Light:

automatic flute laminator

,

auto feed laminator

Electrical Auto Lamination Machine Intelligent With Vacuum Suction Type



Main Feature



1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.

2. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.

3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.

4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.

5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.

6. Roller design scientifically, avoid glue fly out when the speed is high.

7. Pressure rollers adopt one side adjustment, convenient and fast.

8. Rocker controls wash roller's fluctuation, easy cleaning.

9. Counter designs scientifically, easy recording the amount you have been worked.



Information For Laminating Machine



1.Top board/Paper thickness- minimum and maximum:Min.:175g, Max.:350g,Top paper must be flat.
2. Ply thickness and quality can feed in this machine:
Min.: 2ply E flute,Max.: 4ply A+A flute less than 10mm corrugated sheet must be flat.
3. Servo Specification:
1.5KW SERVO MOTOR, Brand: Shilin or Delta from TAIWAN.
4. Electrical parts/ PLC/Motor brand:
Adopt 3 Inverter, 1 PLC, brand: Shilin or DELTA from TAIWAN.
5. What component will come along with machine and what other equipment has to arrange by customer:

Machine include: Host machine 1 set, pressure part 1 set, Air compressor 1set, wind pump 1set, glue pump 1 set, table 1 set.Customer arrange: Glue, top paper, corrugated sheet, wire
6. Required Power supply inputs:
14kw.
7. What support you will give in first Installation:
Operation book and circuit diagram.
8. What spares I have to keep in stock for after sales service and what is dealer and customer price of that list:
I will give you some spring as free spare parts. The others are not easy to broken.
9. Specification of glue applying system and glue circulatory system:
Automatic gluing, and automatic circulatory.
10. Scope of standard warranty:
1 year warranty for the machine. But not include electric parts.



Model SMTM-QZD-1300
Max. sheet size 1300*1250mm
Min. sheet size 500*500mm
Top paper thickness 150-600g
Max. speed 12000 PCS/hour
Precision ±0.5mm
Size 11.5*2*2.4m
Weight 6500kg
Power 20KW/380V
Bottom paper thickness A B C E F corrugated paper



  Main Electronics



No. Name Brand Add
1 SERVO MOTOR DELTA TAIWAN
2 AC DRIVE DELTA TAIWAN
3 INVERTER DELTA TAIWAN
4 MAIN MOTOR MENGNIU

CHINA



5 TOUCH SCREEN MCGS

CHINA



6 PLC

DELTA



TAIWAN
7 TRANSFORMER RENMIN SHANGHAI
8 OTHER ELECTRIC SYSTERM

CHINT



CHINA
9 BEARING Rhonda CHINA
11 BELT

MEGAPOWER



ITALY
12 COMPRESSOR JINZENG CHINA





Electrical Auto Lamination Machine Intelligent With Vacuum Suction Type 0
