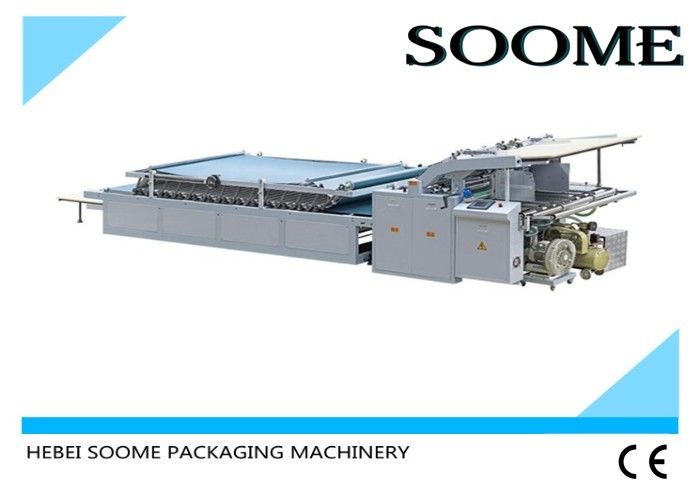

Semi Automatic Flute Laminating Machine , High Speed Carton Box Making Machine

Place of Origin Hebei Dongguang
Brand Name SOOME
Certification CE
Model Number SMTM-BZD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wooden or Plastic 40 container
Delivery Time Goods in stock
Payment Terms L/C, T/T
Supply Ability 20 set / month
Product Details
Usage Making Carton Box Color Customer Requirements
Power 6 KW After-sales Service Provided Engineers Available To Service Machinery Overseas
Warranty 12 Months Machine Size 1600mm
High Light

paper mounting machine


automatic flute laminator

Leave a Message
Product Description

Semi Automatic Flute Laminating Machine , High Speed Carton Box Making Machine


Major feature:


The high speed, high accurate flute laminate which developed by our Company is the most advanced in our country.

This machine operation is stable, joint accurate, easy operation, need not skilled


This machine is used for making Print paper and bottom paper(card paper, corrugated paper) match together accurately, then the paper level off, and high precision.

1. Feeding of high table, automatic feeding for bottom sheet, elastic front register, simple operation.

2. just need one person to feed the paper. It has low request to paper, suitable for laminating paperboard to bottom paperboard, ABCDE Flute corrugated cardboard. Even filmed paper can be laminated.

3. Top sheet forwarded by manual on high table and the sheet can be piled up to 1.8m.

4. Bottom sheet is automatically fed; the two sheets are piled freely; High efficiency
5. Advanced elastic front register is used for location, high register precision, bottom paper will never exceed. When laminating, it is very easy to make top paper and bottom paper alignment, or top sheet exceeded.
6. Fully automatic glue supply system: glue will be automatically supplied during lamination, and recovered, avoiding glue wasted.
7. Scientific design for linear speed of metering roller, avoiding glue thrown when high-speed running.
8. The whole machine adopts PLC control system, compared with other time-delay device or middle relay control, the bottom paper is transferred more precise and stable, furthermore, speed is greatly increased, and circiut breakdown can automatically display and alarm.
9. Clean the lower roller in gluing section by blade with circulated water, complete cleaning, convenient to replace the blade
10. Floating movable pressing section is adopted to make the laminated paperboard smooth. This section can be moved front and back to take in paper conveniently.

11. Gear rach is used to control the lift of water tray, which is easily taken out for cleaning.


Technological parameter:


Model SMZX-D type-1300 SMZX-D type-1500 SMZX-D type-1600
Max size of cover face 1300mmX1100mm 1500mmX1150mm 1600*1250mm
Mix size of cover face 360mmX360mm 360mmX360mm 360*360mm

Economic speed


0-80 piece/min 0-80 piece/min 0-80 piece/min



+-1 +-1 +-1



6kw 6kw 6.5kw



8.8m x 1.95m x 1.7m 8.8m x 2.15m x 1.7m 8.8*2.25*1.5m



About 3T About 3T

About 3.5t
