2500mm Touch Screen Corrugated Sheet Cutter Machine Online Cardboard Packing Line
| Place of Origin | China |
|---|---|
| Brand Name | SOOME |
| Certification | CE |
| Model Number | SMBD-2500 |
| Minimum Order Quantity | 1 Set |
| Price | Contact |
| Packaging Details | Wooden case or plastic film;LCL or 1*20'Container |
| Delivery Time | 45 Days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 Sets/Month |
Product Details
| Speed | 80m/min | Min.paper Cut Length | 200mm |
|---|---|---|---|
| Max.paper Cut Length | 2000mm | Usage | Corrugated Line Sheet Cutting Machine |
| Cutting Accuracy | ±1.5 Mm | Voltage | 380V Or As You Need |
| Upper Roller | Rubber Roller | Lower Roller | Anilox Roller |
| High Light | 2500mm corrugated sheet cutter machine,touch screen corrugated sheet cutter machine,touch screen corrugated sheet cutter |
||
Product Description

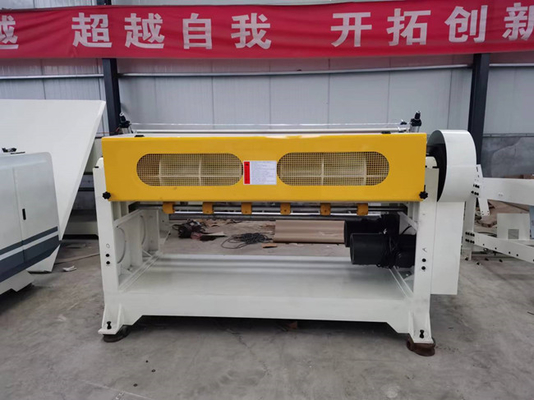

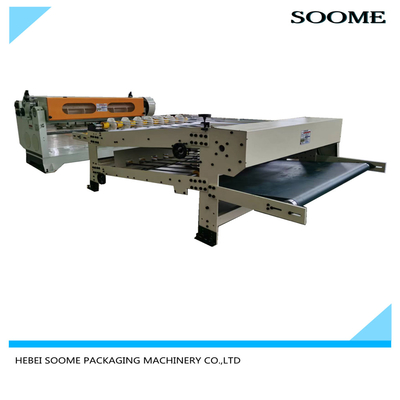

2500MM Corrugated Sheet Cutter Machine Online Cardboard Packing Line
1 . The sheet cutter adopts light dynamic balance cutter shaft to make the machine run more stable, and the blade is inlaid with front steel blade.
2 . Feeder paper roller upper roller is the rubber roller,lower roller is the anilox roller.
3 . Main machine wallboard adopt high grade gray cast iron, high strength, strong vibration resistance.
4 . INVIT Frequency conversion controller, 5.7 inch color touch screen display.
5 . Length :50 mm—9000mm, Cutting accuracy :±1.5 mm.
Technical parameters:
| Work wide size | 2500mm |
| Machine speed | 80m/min |
| Min.paper cut length | 200mm |
| Max.paper cut length | 2000mm |
| Paper cut accuracy | uniform ±1.5mm |
Power motor and electrical parameters:
1 . Paper cutter shaft motor power:4.0KW ( frequency control )
2 . Feeder paper rubber roller motor power:2.2KW( frequency control )
