Corrugated Carton Production Line Corrugated Cardboard Production Line Double Corrugated Cardboard

Basic Information
Place of Origin: China
Brand Name: Soome
Certification: CE
Model Number: SCX-FSB
Minimum Order Quantity: 1 set
Price: contact
Packaging Details: plastic film
Delivery Time: 210 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 set per year
Detail Information
Voltage: 220V/380V After-sales Service Provided: Engineers Available To Service Machinery Overseas
Type: Packaging Line Automatic Grade: Automatic
Driven Type: Electric Application: Machinery & Hardware
Power: 260-380KW Name: Corrugated Cardboard Production Line
High Light:

corrugated box production line

,

carton production line


Product Description

Corrugated Carton Production Line Corrugated Cardboard Production Line Double Corrugated Cardboard



Parameter:



Max. Working Width 2200mm
Min. Working Width 900mm
Max. Paper Mill Dia 1500mm
Main Shaft Dia Φ242mm
Max. Working Pneumatic Pressure 0.6-0.9Mpa
Max. Supporting Weight (One side) 3T
Pneumatic Source Pressure(Mpa) 0.4---0.8Mpa

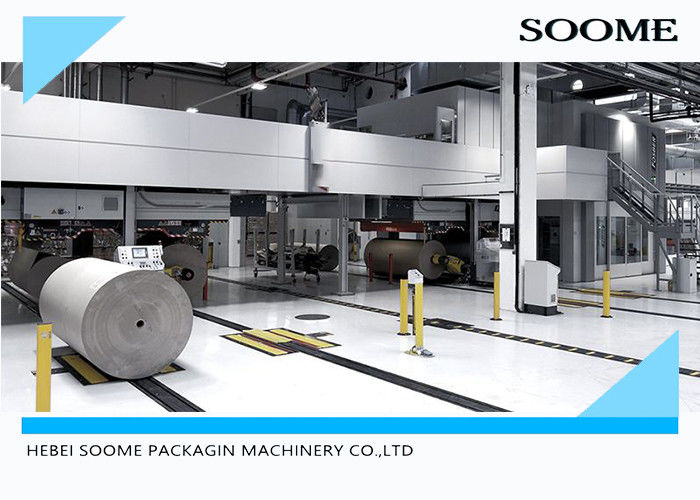

Corrugated Carton Production Line Corrugated Cardboard Production Line Double Corrugated Cardboard 0
Reel Stand ODM* equipped with air ventilated brakes and solid chucks

Reel Feeding ODM*

- one motorized trolley per track

- reel tracks, each 9 m travel way

Pos. 2

Splicer SP-180 SP-180

Splicer SP-250 SP-250
Tear Control  for automatic release of splice

Rest Roll Computer RRC



Pos. 3

1 Steady Facer SF-180

- including one cassette equipped

- peripheral heating of corrugating rolls

- one manual cassette trolley

- Heavy Duty pressure roll

- BHS LPC System for constant Line Pressure Control

- hydraulic control for corrugating roll

- “Soft Touch Control”

- motorized glue dam positioning

- fully retractable glue unit

- automatic glue gap control

- center roll vacuum system including piping

- full size steam shower chest with drain

- condensate traps and steam piping

- PLC control with touch screen

1 Inclined conveyor up
1 Air conditioning unit
1 Integrated Preheater 900 mm ODM*

- with AC drive energy refeeding

- with automatic wrap adjustment
1 Integrated Liner Boost Hot Plate
1 Integrated Preconditioner 400 mm ODM*

- with AC drive energy refeeding

- with automatic wrap adjustment
1 Width-related glue dam positioning

1 Additional cassette module equipped with one set of E-flute including chrome coated corrugating rolls



Pos. 5


1 Simplex Bridge ODM* consisting of :

Steel construction with steel catwalk on operator side
1  WEBTROL duplex bridge guide
1  bridge brake with pneumatic brake
1 Assembly frame for simplex bridge to take up control frame of bridge guide and bridge brake



Pos. 6


1 Double Preheater 900mm ODM*

- operator control and display integrated

- with AC drive energy refeeding

- with automatic wrap adjustment



Pos. 7


1  Simplex Glue Unit GU-180

- with individual servo drives

- self-adjusting pressure shoe system

- integrated touch panel
1 Automatic glue dam adjustment and glue level control for GU-180



Pos. 8


1 1 Floating BARTROL Loading System for improved printing surface of light papers between 50 - 90 g/m2 on C-, B- and E-flute

- pre-set loading pressure from full load

- automatic lifting of edge bars to prevent extensive belt wear when running small width papers

operating screen combined with GU-180



Pos. 9

1 Rotary Shear RD-180 RD-180 for normal order change

- 30 kW A.C. drive

- max. cutting speed 180 m/min.
1 Remote Control remote initiation from DF-230 infeed stand for precize release of waste ejection
1 Synchro Cut  triggered cut at order changes for max. 0.5 m order change waste
1 Waste carriage



Pos. 10

1 Slitter Scorer SR-180

SR-180 - scorer, scorer, slitter

- for 5 outs

- trim tube positioning

- Disc-Cut system

- Swing Change for uninterrupted web during order change

Air conditioning unit for machine side switch cabinets
Lateral brush roll movement
3-in-1-profile



Pos. 11



1 Transfer Tables, Simplex, in stainless steel construction between Rotary Shear / Slitter Scorer and Slitter Scorer / Cutoff

1 Protection devices for SR-230 and HQ-230



Pos. 12


1 Simplex High Speed Cutoff HQ-180

HQ-180 steel knife bars for board weight up to 1,500 g/m²

1 Double roll infeed for improved pulling of heavy boards



Pos. 13


1 Automatic Simplex Stacker US-180
Upstacker

- chamber length: 3,600 mm - stack height : 1,800 mm

- plastic belt cross conveyor

- air conditioning unit

Pos. 14


CORRUGATOR CONTROL SYSTEM
Wet End Control
1 Duplex Bridge Level Control BLC with light barrier detection
1 Parallel operating screen
