2200mm 180m/Min Corrugator Line Automatic Gantry Stacker

Basic Information
Place of Origin: Made In China Hebei
Brand Name: SOOME
Certification: CE
Model Number: XLM
Minimum Order Quantity: 1Set
Price: Contact
Packaging Details: Wooden case or plastic film;40' Container
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 30 Pcs/month
Detail Information
Effective Width: 1800 2200 2500mm Stacker Speed: 150 180 200m/min
Stacker Length: 3500mm Stacker Height: 280mm
Usage: Corrugated Production Line Stacker Driven Type: Electric
Operation Direction: Left Or Right(assured By Plant) Packaging Type: Carton Box, Corrugated Sheet
High Light:

180m/min corrugator line

,

2200mm corrugator line

,

corrugator line automatic gantry stacker


Product Description

2200mm 180m/min Automatic Corrugated Production Line Gantry Stacker



Feature:



1 . Gantry type stacker, counting exact, change piles and orders automatically, stacking tidily.

2 . The 1st section use vacuum suction conveying sheets, 4 rows of carbon fiber strips to control the sheets pressing automatically, stacking sheets tidily and conveying sheet steadily.
3 . VFD motor & controller controls stable conveying, synchronizes conveying speed with production line speed.
4 . VFD motor & inverter controls up down stacking, ensures neat and fast stacking.
5 . Back baffle with permanent magnet synchronous servo motor (PMSM), positioning is servo control, fast order changing and exact adjustment.

6 . Flat-belt stacking platform, PMSM controls stable auto transverse expulsion of pile when reach the setting qty.

7 . Standard #10 colorful touch screen, convenient in operation and monitor.

8 . Match with communication and control interface, connect with center monitoring and management system, can change and manage orders automatically.

9 . Equip with industrial air conditioner, electrical equipment run in the dust-free, constant temperature and constant humidity environment.

10 . Designed and manufactured according to CE standards, make sure the machines working safety.



Technical parameters:



1 . Effective width:1800,2200,2500mm

2 . Stack speed:150,180,200m/min

3 . Stack length:3500mm

4 . Stack height:280mm



Parts brand and origin:



Parts Brand and origin
Contactor France Schneider
Motor China Yongshun
Conveying motor Taiwan Chengbang
Bearing China HRB

Pneumatic (air cylinder, electromagnetic valve, etc)

China Tian’ao
Synchronous belt Japan SUBAKE
Frequency converter Taiwan Delta
Button China CHINT
Baffle servo Germany Kinco
Baffle servo driver Germany Kinco
Touch screen Taiwan Weinview
Detection optoelectricity Korea Autonics
Pneumatic brand China Tian’ao

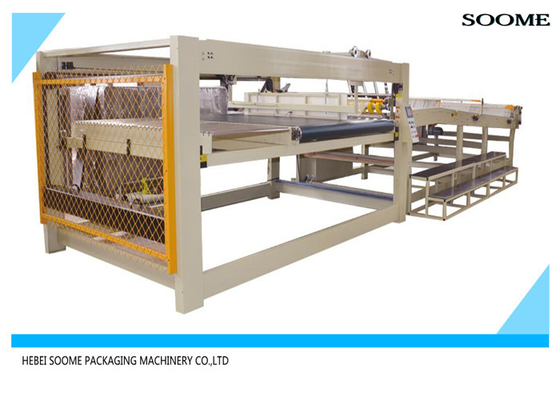

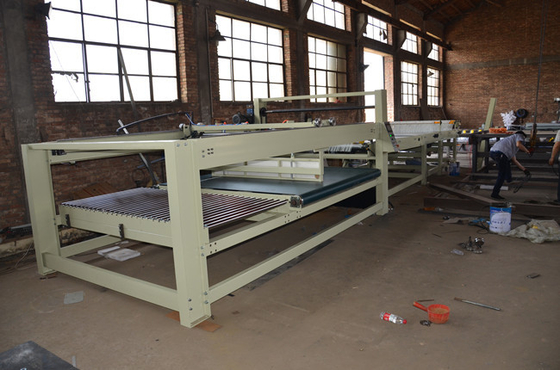

2200mm 180m/Min Corrugator Line Automatic Gantry Stacker 02200mm 180m/Min Corrugator Line Automatic Gantry Stacker 12200mm 180m/Min Corrugator Line Automatic Gantry Stacker 2
2200mm 180m/Min Corrugator Line Automatic Gantry Stacker 3
