Cassette Type Changed Fast 1600mm Corrugated Production Line Single Facer A Flute
| Place of Origin | China Hebei Dongguang |
|---|---|
| Brand Name | SOOME |
| Certification | CE |
| Model Number | SMDM |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Wooden or plastic * 20”container or Shipping LCL |
| Delivery Time | 45 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 set / 3 months |
Product Details
| Corrugated Roller | Diameter Φ320 | Roller Material | Alloy Steel,or Tungsten Carbide |
|---|---|---|---|
| Flute Type | ACBEF | Design Speed | 150m/min |
| Working Speed | 120m/min | Size | 1600/1800/2000/2200/2500 |
| Usage | Making Corrugated Cardboard | Changed Roller Time | 10 Min |
| High Light | 1600mm corrugated production line,a flute single facer,corrugated production single facer |
||
Product Description

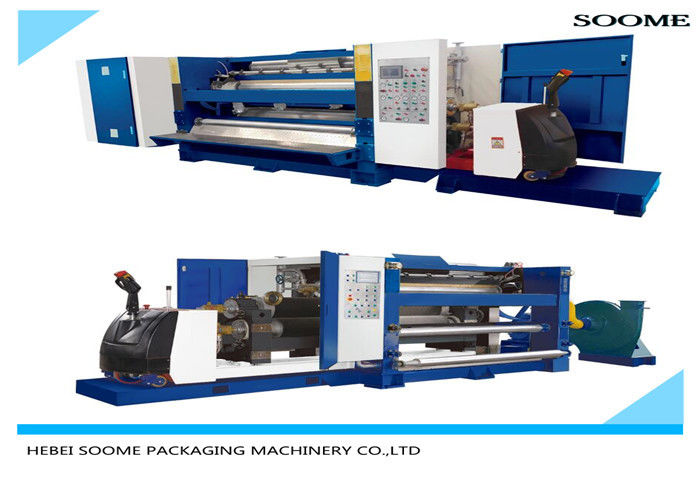

Cassette Type Changed Fast Corrugated Production Line Single Facer
| No. | Name | Qty | Feature |
| 1 |
Cassette Type Single Facer
|
1 |
--Corrugated rollerφ320mm,48CrMo high quality alloy steel, tungsten carbide treatment --Fast change the roller in 15 minus by electrical trailer --Airbag ballast structure --Independent glue unit with PLC control,circulating supply glue --Man-machine interface display --Automatic stopping machine and relief pressure without paper |
| Roller Fast Changed Model | 1 |
--Fast change the corrugated roller for the cassette type single face --The module part includes: two ends of the shaft seat,bearings,steam components, suction box,pneumatic components and so on |
|
Machine Description:
*Single facer is design for producing single-face corrugated paper:This machine is cassette type design, easy and quick to change flute in 15mins with dolly by hydraulic system
Machine Function:
*Corrugated Rollers:
| Diameter |
Φ320mm
|
| Material | 48CrMo high quality alloy steel, rigidity HRC55°-58° |
| Processing Way | After quenching and tempering,The surface of upper-lower roller is ground, then tungsten carbide |
| Control Way | Airbag control Lifting Up-down |
| Driving Way | frequency motor |
| Way of Transmit cardboard | Vacuum Cover absorbable style, Height pressure Draw fan with noise deadening device |
| Way of Bearing lubricating | High temperature grease |
| Flute Type | (U/V) ACBEF(According to customers requirements) |
*Press Rollers:
| Diameter |
Φ370mm
|
| Material | Carbon steel (MS)45# |
| Processing Way | After quenching and tempering,The surface of roller is ground, then plating chrome |
| Control Way | Airbag control Lifting Up-down |
| Way of Bearing lubricating | High temperature grease |
*Glue Rollers:
| Diameter |
Φ269mm
|
| Material | Carbon steel (MS)45# |
| Processing Way | Surface is ground,inscribed with 25 lines of pitted mesh,then plated chrome |
| Driving Way | frequency motor |
| Way of Bearing lubricating | High temperature grease |
| Glue Supply | Automatic glue circulating system(storage tank+glue pump);PLC automatic control glue and electric adjust glue width；Independent glue unite |
*Preheater Rollers:
| Diameter | Φ400mm |
| Material | seamless steel tube |
| Processing Way | After quenching and tempering,The surface of roller is ground, then plating chrome |
Machine Technical Parameter:
| Working Width | 1800mm |
| Design Speed | 150m/min |
| Working Speed | 120m/min |
| Pneumatic Source Pressure(Mpa) | 0.4---0.8Mpa |
| Main Drive Motor | 30KW |
| Suction Motor | 15KW |
| Glue Adjusting Reducer | 0.1KW |
| Glue Gap Adjusting Motor | 0.25KW |
| Glue Pump | 2.2KW |
