| Place of Origin: | Hebei China |
| Brand Name: | Soome |
| Model Number: | SM-2200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | contrat |
| Packaging Details: | film or plastic |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2set per year |
| Certification: | CE | Name: | Corrugated Cardboard Production Line |
|---|---|---|---|
| Usage: | Cardboard | Function: | Corrugated Cardboard Making |
| Speed: | 250m/min | Automatic Grade: | Automatic Grade |
| Voltage: | 220/380/440V | Condition: | New Condition |
| Type: | 3&5&7 Ply High Speed Corrugated Cardboard Production Line | Weight: | 195T |
| High Light: | 380v corrugated cardboard production line,high speed corrugated cardboard production line,3 ply corrugated cardboard production line |
||

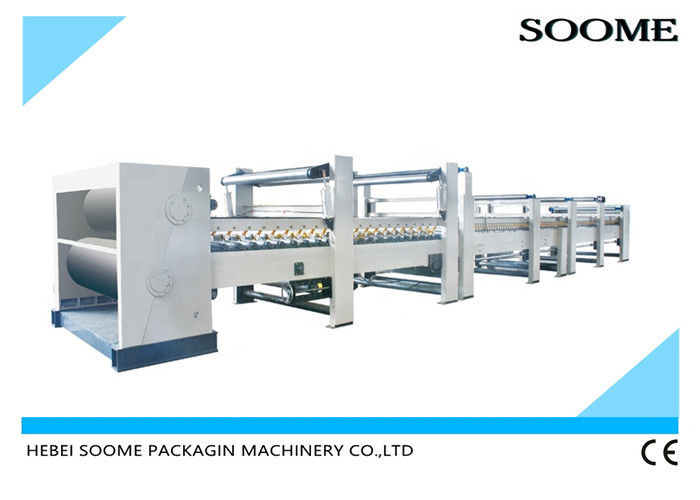

3 Ply High Speed Corrugated Cardboard Production Line
Europe Market 1800/2200/2500 JS Brand Cottugation Product Line
Use for corrugated paperboard making machine
Second hand high speed corrugated line
|
specification |
Equipment name |
UN IT |
QT Y |
|
Remark |
|
ZJ-V6B |
Hydraulic shaftless mill roll stand |
a |
7 |
Cottugation Product Line |
Spindle ￠270mm, hyperbolic heavy rocker, toothed chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle. |
|
YXC |
Hydraulic pressurePap er system |
a |
14 |
Cottugation Product Line |
Double groove width 10m. guide rail length and the ground level, on the double position paper design, hydraulic clamp for paper, paper unloading hydraulic push rod save manpower, hydraulic motor traction feeding trolley. |
|
JZJ |
Automatic splicer |
a |
7 |
Cottugation Product Line |
Automatic splicer keep corrugating cardboard assembly line uninterrupted work,Reduce paper consumption,Greatly improve productivity.Maximum speed 250m/min |
|
RG-1-1000 |
Top paper preheat cylinder |
a |
3 |
Cottugation Product Line |
roller ￠1000mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
|
RG-1-1000 |
Core paper preheat cylinder |
a |
3 |
Cottugation Product Line |
roller ￠1000mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
|
SF-500A |
Multi-casset te positive pressure single facer |
a |
3 |
Cottugation Product Line |
Main corrugating roller ￠500mm,corrugating roller group flute quick change.corrugated roller with spraying tungsten carbide dealing.with maintenance-free airbag loading,PLC automatic control glue, HMI touch screen, Breaks automatic parking relief. |
|
DY-C |
Electric hydraulic roller change forklift |
set |
1 |
Cottugation Product Line |
Large capacity battery, power walking, hydraulic lift, centralized control. |
|
RG-4-1060 |
Triple preheater |
a |
1 |
Cottugation Product Line |
roller ￠1060mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
Main Structure and Features
Tools up-loaded or lower-loaded.
Servo robot for tool set-up, ensuring quick and accurate tool positioning.
Variable frequency drive ensures accurate synchronization with the line
Automatic regrinding device keeps tool-edge sharp and heat volatilization, prolong the knife lifespan.
Motorized scoring gap adjustment and digital readout.
Automatic web edge tracking, ensuring even trimming and reducing waste
Automatic slitting trim vents positioning for clean removal.
Fore and back scoring wheels reduces the scoring space and pre-scores the crisp and high strength paper
3 scoring profiles enable up to three scoring profiles (point to point, male to female, point to flat); Motorized switchover between scoring profiles, motorized scoring depth adjustment to meet different caliper
Friendly computer interface featuring convenient and easy operation.
Both automatic and manual order change are available. Order management function. System recovery function and software interface is available for third-party.
