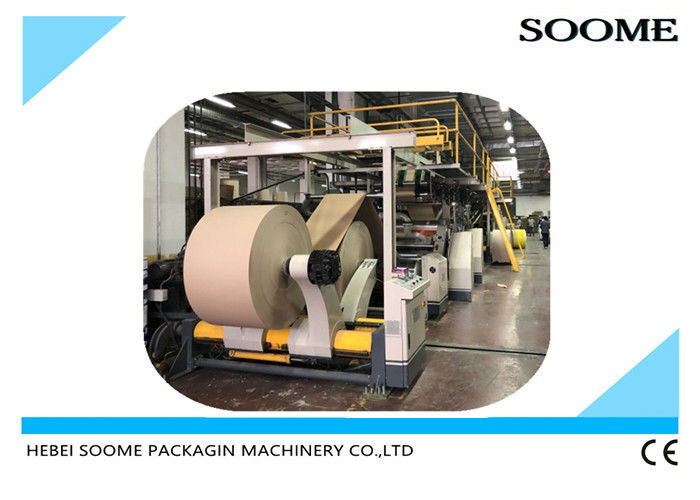

Hydraulic Shaftless Mill Roll Stand For Paper Roll Corrugated Cardboard Machine

Hydraulic Shaftless Mill Roll Stand For Paper Roll Corrugated Cardboard Machine



SOOME Corrugated carton box two color flexo printing die cutting making machine established in 1995. Specialized in developing and manufacturing the automatic, high speed, precise and good quality corrugated machines. We provide the whole dry-end solution for corrugated production line. Facing the fierce competition in corrugated packing field, our company adopt three concepts " mechanotronics" " intelligent operation" and "simple usage". We developed several new high speed automatic machines which improved the competition ability of our customers.We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy. Our products ever sold to Italy, Argentina, India, Pakistan, Germany, Egypt, Vietnam and so on.Wish we unite in a concerted effort for the beautiful future !



Specification:



Max. working width	2500mm
Min. working width	1200mm
Max. paper mill diameter	φ1500mm
Min. paper mill diameter	φ400mm
Max. Support weight	V5B2.5T/V6B3.5T
Main axis	V5Bφ242mm/V6Bφ270mm
Max working pneumatic pressure:	0.6-0.9Mpa
Length of track for carry paper mill	V5B6000mm/V6B9000mm



Electric shaftless mill roll stand :



 This machine used for corrugated carton production line

1. Effective working width : 400 -1850mm

2. Single arm max load weight: 1.8 ton

3. Symmetrical structure may also install two original paper, tube bundle is kept for paper assignments, paper lift, clamp, loosen, and move, adopt electric shift control.

4. Each motor is equipped with a friction clutch, so that in case of overload idling sprockets slipping, effectively protect machine and motor role.

5. Paper tension is adjusted by pneumatic brake or manual brake, top with tapered tip or expansive top.

Disc brake and automatically bulge style chuck.

6. Each shaftless feeder rail bracket with two sets, both on paper trolley: trolley fitted with guide wheels on paper, you can stesdily push the paper in place. Rails using the 12th channel and guide post weld on paper using 12mm car.Welded steel, paper feed rail length 4500mm.



Hydraulic mill roll stand:



This machine used for corrugated carton production line

1. Effective working width : 800-2500mm

2. Single arm max load weight: 3 ton

3. Symmetrical structure may slao install two original paper, tube bundle is kept for paper assignments.

4.Adopt hydraulic drive, can complete base paper lifting, clamping , loosen, move on .

5. Adopt pneumatic tension adjust base paper tension and automatically bulge style chuck.

6. Tension control equipment with pneumatic brake, also can connect with automatic paper splicer to achieve quick paper supply.



1. Clamping , moving right-left, arms up-down and paper roll revolve is motorized operated.

2. Supporting two paper rollers in the meantime, one is working, and another is for spare part.

3. Adopt multipoint braking system.

4. Adopt toothed chucks.

5. Including track and trolley for carry paper mill,electric trolley can be choosed.
