| Certification: | CE | Name: | Cardboard Product Line |
|---|---|---|---|
| Usage: | Cardboard | Function: | Corrugated Cardboard Making |
| Speed: | 250m/min | Automatic Grade: | Automatic Grade |
| Voltage: | 220/380/440V | Condition: | New Condition |
| Type: | 3&5&7 Ply High Speed Corrugated Cardboard Production Line | Driven Type: | Electric |
| Packaging Type: | Film | Power: | 400kw |
| High Light: | 1800mm corrugated board production line,5ply corrugated board production line,250m/min corrugated board production line |
||

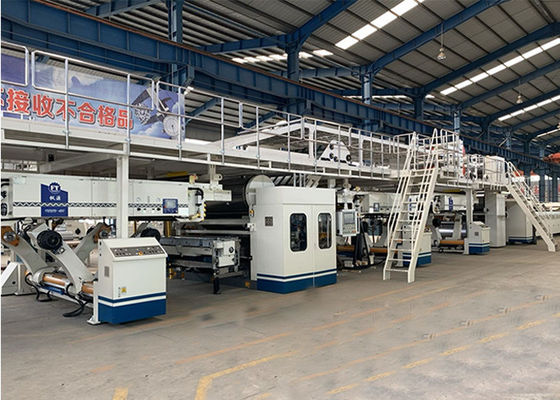

JS Brand 2ply/3ply/5ply Used Corrugated Cardboard Production Line
Use for corrugated paperboard making machine
Second hand high speed corrugated line
|
specification |
Equipment name |
UN IT |
QT Y |
|
Remark |
|
ZJ-V6B |
Hydraulic shaftless mill roll stand |
a |
7 |
Corrugated Board Production Line |
Spindle ￠270mm, hyperbolic heavy rocker, toothed chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle. |
|
YXC |
Hydraulic pressurePap er system |
a |
14 |
Corrugated Board Production Line |
Double groove width 10m. guide rail length and the ground level, on the double position paper design, hydraulic clamp for paper, paper unloading hydraulic push rod save manpower, hydraulic motor traction feeding trolley. |
|
JZJ |
Automatic splicer |
a |
7 |
Corrugated Board Production Line |
Automatic splicer keep corrugating cardboard assembly line uninterrupted work,Reduce paper consumption,Greatly improve productivity.Maximum speed 250m/min |
|
RG-1-1000 |
Top paper preheat cylinder |
a |
3 |
Corrugated Board Production Line |
roller ￠1000mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
|
RG-1-1000 |
Core paper preheat cylinder |
a |
3 |
Corrugated Board Production Line |
roller ￠1000mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
|
SF-500A |
Multi-casset te positive pressure single facer |
a |
3 |
Corrugated Board Production Line |
Main corrugating roller ￠500mm,corrugating roller group flute quick change.corrugated roller with spraying tungsten carbide dealing.with maintenance-free airbag loading,PLC automatic control glue, HMI touch screen, Breaks automatic parking relief. |
|
DY-C |
Electric hydraulic roller change forklift |
set |
1 |
Corrugated Board Production Line |
Large capacity battery, power walking, hydraulic lift, centralized control. |
|
RG-4-1060 |
Triple preheater |
a |
1 |
Corrugated Board Production Line |
roller ￠1060mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
|
GM-30 |
Double glue machine (heavy type) |
a |
1 |
Corrugated Board Production Line |
Glue roller diameter 320mm.Frequency motor drive, PLC control. Glue quantity PCL automatic adjustment,HMI touch screen display. |
|
TQ-I |
Conveyor bridge |
set |
1 |
Corrugated Board Production Line |
200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension.Electric correction. |
|
XG-JP |
Automatic correction |
set |
１ |
Corrugated Board Production Line |
No power correction model save energy.High precision sheet correction. Paper width change does not require any adjustment Full width infrared detection curtain.Reduce paper waste generated tear.reduce the waste of paper edge not to precision. |
|
DQD |
Ear cut machine |
set |
1 |
Corrugated Board Production Line |
Cut off bad cardboard when start working, when slit change order cut the sides automatically,make the waste come into the suction opening automatically. |
|
SM-E2 |
Double facer |
set |
1 |
Corrugated Board Production Line |
Rack 400 mm GB channel,Chrome hot plate600 mm *20pieces,Entrance ¢ 400mm hot cylinder of top paper speed raised temperature,16groups whole contact plate design construction.PLC automatic control press plate.Up and down with automatic correction, temperature display, frequency motor.Adopt PID automatic temperature control system, link with raw pipe three layers, five layers automatically control the number of temperature hot plates, high efficiency and energy saving |
|
NCBD |
NC thin blade slitter scorer |
a |
2 |
Corrugated Board Production Line |
Tungsten alloy steel, seven knives twelve lines, zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.Closed electric control box, plus air conditioning dehumidification |
|
NC-30D |
Double NC cutter helical knives |
a |
1 |
Corrugated Board Production Line |
Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.Closed electric control box, plus air conditioning dehumidification |
|
NC-DL |
Double Automatic large down stacking machine |
a |
1 |
Corrugated Board Production Line |
Five sections of the high-strength belt conveyor, frequency loop control,automatic points precision, row single-cycle 20 seconds,stacking length1800mm, HMI touch screen. |
| ZJZ | Automatic Glue station | set | 1 | Corrugated Board Production Line | Customers -owned pipeline . Glue configuration is composed by carrier tank,main tank,storage tank, |
Main Structure and Features
Quick-roll-change cartridge device, enhances stability and reduces roll change time
Vibration is reduced due to lower-located corrugating roll, which improves running stability
Tungsten carbide corrugating rolls ensure formation strength at high speed, improving machine stability and extending the roll life.
Lower-located fluting unit with hydraulic locking
The quick-roll-change cartridge device is driven by hydraulic motor. It makes roll positioning accurately without damage.
Pneumatic engaging/disengaging to steam joints during cartridge change. Quick pins locking and composed seals realize favorable change and reliable sealing.
Self-circulating glue feeding system, glue-level inspecting device prevents overflow.
Motorized glue dams adjustment for different web widths
Motorized adjustment for glue quantity. Automatic speed-related glue quantity control with digital readout. Manual adjustment is also available. Multi-formula option system is open for operators.
Automatic web breakage detection function
Applicator roll, 30 LPI, hard chrome-plated and ground
Pressure roll, doctor roll as well as liner and medium pre-heating rolls, top quality forged steel, also hard chrome-plated and ground
Main bearings, lubricated with high-temperature grease, provide outstanding sealing performance and reliable lubricating
The standard flute height (A=4.7, B=2.65, C=3.7, E=1.6) and flute profile UV unless marked. Special fluting requirements can be customized.
PLC control
Variable frequency control system
Extra cartridge with cart is individually equipped.
Main Technical Data
Available width: 2200mm
Temperature range: 160~2000C
Compressed air pressure: 0.4~0.9MPa
Steam pressure:1.0~1.2MPa
Corrugating roll change time: 15～30min
Available paper width: Max. 2200mm, Min. 1200mm
Options
Motorized cart for cartridge conveying
Steam trap to be Armstrong (USA)
Main bearings to be NSK
Digital readout for corrugating/application rolls and corrugating/pressure rolls gap adjustment
PID automatic temperature control on major rolls
Automatic glue width adjustment and digital readout
Water cooling glue pan designed for South East Asia climate
CIP glue application roll cleaning system
OPTION: SZC-CA Rail and Hydraulic Carriage Main Structure and Features
Hydraulic reel feeding system
Hydraulic power is integrated to mill roll stand, no individual design
Wide rail and carriage controls the heavy load stability, favorable for core alignment to different diameter reels.
Middle cover of the rails can be dismantled for easy maintenance
Easy reel feeding with assistance of overturn reel squaring device
Rail length and dual carriages can be customized up to site space or logistic demand.
Ground scale is equipped for web edge alignment
Carriage over-range protection is available
Main Technical Data
Rail size: 9000X420
Carriage size: 1200X420
Hydraulic motor: 5.5KW
Contact Person: Luke Liu
Tel: 18031770751
Fax: 86-0317-7800709
