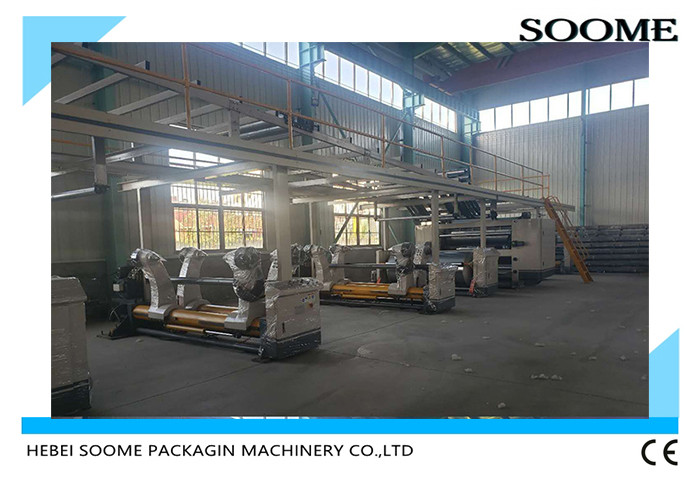

7 Ply 2200mm 400kw Corrugated Cardboard Production Line

7 Ply 2200mm 400kw Corrugated Cardboard Production Line

  • 7 Ply 2200mm 400kw Corrugated Cardboard Production Line
  • 7 Ply 2200mm 400kw Corrugated Cardboard Production Line
  • 7 Ply 2200mm 400kw Corrugated Cardboard Production Line
  • 7 Ply 2200mm 400kw Corrugated Cardboard Production Line
  • 7 Ply 2200mm 400kw Corrugated Cardboard Production Line
  • 7 Ply 2200mm 400kw Corrugated Cardboard Production Line
  • 7 Ply 2200mm 400kw Corrugated Cardboard Production Line
7 Ply 2200mm 400kw Corrugated Cardboard Production Line
Product Details:
Place of Origin: Hebei China
Brand Name: Soome
Certification: CE
Model Number: SM-2200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: contrat
Packaging Details: film or plastic
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2set per year
Contact Now
Detailed Product Description
Name: Cardboard Product Line Usage: Cardboard Making
Function: Corrugated Cardboard Making Speed: 250m/min
Automatic Grade: Automatic Voltage: 220/380/440V
Certification: CE Condition: New Condition
Type: 3&5&7 Ply High Speed Corrugated Cardboard Production Line Driven Type: Electric, Mechanical
Packaging Type: Film Power: 400kw
Highlight:

2200mm corrugated cardboard production line

,

7ply corrugated cardboard production line

,

400kw corrugated cardboard production line

Second Hand 7 ply 2200mm Corrugated Paperboard Production Line

Use for corrugated paperboard making machine

Second hand high speed corrugated line



specification



Equipment name



UN IT



QT Y



Remark



ZJ-V6B

Hydraulic shaftless mill roll

stand



a



7



Corrugated Paperboard Production Line

Spindle ¢270mm, hyperbolic heavy rocker, toothed chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle.





YXC



Hydraulic pressurePap er system





a





14





Corrugated Paperboard Production Line

Double groove width 10m. guide rail length and the ground level, on the double position paper design, hydraulic clamp for paper, paper unloading hydraulic push rod save manpower, hydraulic motor traction

feeding trolley.



JZJ



Automatic splicer



a



7



Corrugated Paperboard Production Line

Automatic splicer keep corrugating cardboard assembly line uninterrupted work,Reduce paper consumption,Greatly improve productivity.Maximum

speed 250m/min



RG-1-1000

Top paper preheat cylinder



a



3



Corrugated Paperboard Production Line

roller ¢1000mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of

360°.



RG-1-1000

Core paper preheat cylinder



a



3



Corrugated Paperboard Production Line

roller ¢1000mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of

360°.





SF-500A



Multi-casset te positive pressure single facer





a





3





Corrugated Paperboard Production Line

Main corrugating roller ¢500mm,corrugating roller group flute quick change.corrugated roller with spraying tungsten carbide dealing.with

maintenance-free airbag loading,PLC automatic control glue, HMI touch screen, Breaks automatic

parking relief.





DY-C

Electric hydraulic roller change

forklift





set





1





Corrugated Paperboard Production Line



Large capacity battery, power walking, hydraulic lift, centralized control.



RG-4-1060



Triple preheater



a



1



Corrugated Paperboard Production Line

roller ¢1060mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of

360°.





GM-30

Double glue machine

(heavy

type)





a





1





Corrugated Paperboard Production Line



Glue roller diameter 320mm.Frequency motor drive, PLC control. Glue quantity PCL automatic adjustment,HMI touch screen display.



TQ-I

Conveyor bridge



set



1



Corrugated Paperboard Production Line

200mm main beam channels, independent inverter motor drive pull paper feed, adsorption

tension.Electric correction.





XG-JP





Automatic correction





set











Corrugated Paperboard Production Line

No power correction model save energy.High precision sheet correction. Paper width change does not require any adjustment

Full width infrared detection curtain.Reduce paper

waste generated tear.reduce the waste of paper edge not to precision.



DQD

Ear cut machine



set



1



Corrugated Paperboard Production Line

Cut off bad cardboard when start working, when slit

change order cut the sides automatically,make the waste come into the suction opening automatically.









SM-E2









Double facer









set









1









Corrugated Paperboard Production Line

Rack 400 mm GB channel,Chrome hot plate600 mm

*20pieces,Entrance ¢ 400mm hot cylinder of top paper speed raised temperature,16groups whole contact plate design construction.PLC automatic control press plate.Up and down with automatic correction, temperature display, frequency motor.Adopt PID automatic temperature control system, link with raw pipe three layers, five layers automatically control the number of temperature hot plates, high

efficiency and energy saving





NCBD



NC thin blade slitter scorer





a





2





Corrugated Paperboard Production Line

Tungsten alloy steel, seven knives twelve lines, zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.Closed electric control box,

plus air conditioning dehumidification



NC-30D

Double NC cutter helical knives



a



1



Corrugated Paperboard Production Line

Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.Closed electric control box, plus air

conditioning dehumidification





NC-DL

Double Automatic large down stacking

machine





a





1





Corrugated Paperboard Production Line

Five sections of the high-strength belt conveyor, frequency loop control,automatic points precision, row single-cycle 20 seconds,stacking length1800mm, HMI touch screen.
ZJZ Automatic Glue station set 1 Corrugated Paperboard Production Line Customers -owned pipeline . Glue configuration is composed by carrier tank,main tank,storage tank,



7 Ply 2200mm 400kw Corrugated Cardboard Production Line 07 Ply 2200mm 400kw Corrugated Cardboard Production Line 1

7 Ply 2200mm 400kw Corrugated Cardboard Production Line 2

★This portion of the main frame with channel, beam, angle and so connected together.

★Both sides are equipped with safety barriers and security herringbone pedal operation plane is equipped

with safety ladder, ensure staff safety and ease of operation.

★Independent frequency motor lift mechanism, PVC conveyor belt, single watt cardboard wavy rule stable.

★All roller surface after grinding hard chrome plating.

★Vacuum tension control, suction tube 5-inch, plus regulating valves, air flow infinitely adjustable.

★Electric correction device II sets shutter correction double guide column positioning, screw drive, fast and accurate positioning, walking steadily.

★Bridge over the auxiliary high-strength composite sheet, smooth, durable, low friction, reducing cardboard transport resistance.



technical parameter :

1,working width:2500mm

2,operation direction: left or right(Determined in accordance with customer plant) 3,highest height:4700mm 4,working speed:300m/min

roller diameter parameters:

1,upper paper roller and tensioning roller diameter: ¢130mm 2,Conveying roller diameter: ¢180mm

3,over paper roller and guide paper roller diameter:¢111mm 4,On paper towing shaft diameter:¢110mm

1,single facer corrugated paper lifting motor: 4KW (frequency ) 380V 50Hz Continuous (S1) working standard

Bridge adsorption fan: 3KW 380V 50Hz Continuous (S1) working standard
adjust cardboard wide motor: 250W   380V 50Hz short(S2)working standard
