| Place of Origin: | Hebei China |
| Brand Name: | Soome |
| Model Number: | SM-2200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | contrat |
| Packaging Details: | film or plastic |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2set per year |
| Certification: | CE | Name: | Corrugated Cardboard Product Line |
|---|---|---|---|
| Usage: | Corrugated Cardboard Making | Function: | Corrugated Cardboard Making |
| Speed: | 250m/min | Automatic Grade: | Automatic Grade |
| Voltage: | 220V/380/440V | Condition: | New |
| Type: | 3&5&7 Ply High Speed Corrugated Cardboard Production Line | Driven Type: | Electric, Mechanical |
| Packaging Type: | Film | Power: | 300kw |
| High Light: | corrugated cardboard production line,2.2m cardboard production line,300kw cardboard production line |
||

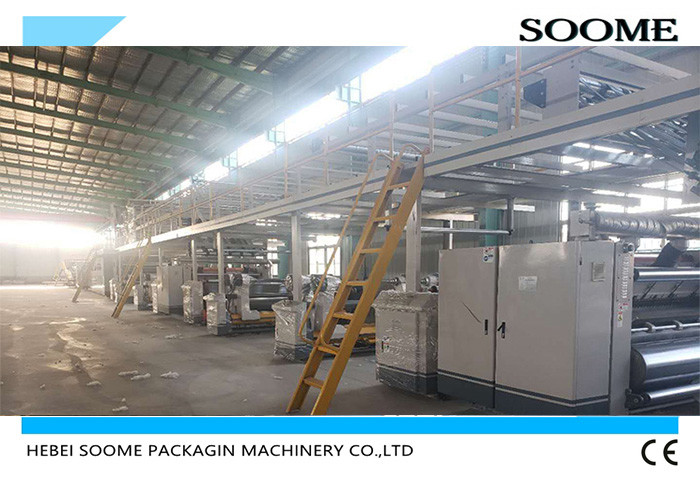

Used 2.2m High Speed Corrugated Cardboard Product Line
use for corrugated cardboard making machine
Second hand high speed corrugated line
|
specification |
Equipment name |
UN IT |
QT Y |
|
Remark |
|
ZJ-V6B |
Hydraulic shaftless mill roll stand |
a |
7 |
12 |
Spindle ￠270mm, hyperbolic heavy rocker, toothed chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle. |
|
YXC |
Hydraulic pressurePap er system |
a |
14 |
5 |
Double groove width 10m. guide rail length and the ground level, on the double position paper design, hydraulic clamp for paper, paper unloading hydraulic push rod save manpower, hydraulic motor traction feeding trolley. |
|
JZJ |
Automatic splicer |
a |
7 |
19 |
Automatic splicer keep corrugating cardboard assembly line uninterrupted work,Reduce paper consumption,Greatly improve productivity.Maximum speed 250m/min |
|
RG-1-1000 |
Top paper preheat cylinder |
a |
3 |
7.5 |
roller ￠1000mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
|
RG-1-1000 |
Core paper preheat cylinder |
a |
3 |
7.5 |
roller ￠1000mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
|
SF-500A |
Multi-casset te positive pressure single facer |
a |
3 |
166 |
Main corrugating roller ￠500mm,corrugating roller group flute quick change.corrugated roller with spraying tungsten carbide dealing.with maintenance-free airbag loading,PLC automatic control glue, HMI touch screen, Breaks automatic parking relief. |
|
DY-C |
Electric hydraulic roller change forklift |
set |
1 |
4.7 |
Large capacity battery, power walking, hydraulic lift, centralized control. |
|
RG-4-1060 |
Triple preheater |
a |
1 |
30 |
roller ￠1060mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
|
GM-30 |
Double glue machine (heavy type) |
a |
1 |
45 |
Glue roller diameter 320mm.Frequency motor drive, PLC control. Glue quantity PCL automatic adjustment,HMI touch screen display. |
|
TQ-I |
Conveyor bridge |
set |
1 |
51 |
200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension.Electric correction. |
|
XG-JP |
Automatic correction |
set |
１ |
28 |
No power correction model save energy.High precision sheet correction. Paper width change does not require any adjustment Full width infrared detection curtain.Reduce paper waste generated tear.reduce the waste of paper edge not to precision. |
|
DQD |
Ear cut machine |
set |
1 |
40 |
Cut off bad cardboard when start working, when slit change order cut the sides automatically,make the waste come into the suction opening automatically. |
|
SM-E2 |
Double facer |
set |
1 |
130 |
Rack 400 mm GB channel,Chrome hot plate600 mm *20pieces,Entrance ¢ 400mm hot cylinder of top paper speed raised temperature,16groups whole contact plate design construction.PLC automatic control press plate.Up and down with automatic correction, temperature display, frequency motor.Adopt PID automatic temperature control system, link with raw pipe three layers, five layers automatically control the number of temperature hot plates, high efficiency and energy saving |
|
NCBD |
NC thin blade slitter scorer |
a |
2 |
60 |
Tungsten alloy steel, seven knives twelve lines, zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.Closed electric control box, plus air conditioning dehumidification |
|
NC-30D |
Double NC cutter helical knives |
a |
1 |
140 |
Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.Closed electric control box, plus air conditioning dehumidification |
|
NC-DL |
Double Automatic large down stacking machine |
a |
1 |
144 |
Five sections of the high-strength belt conveyor, frequency loop control,automatic points precision, row single-cycle 20 seconds,stacking length1800mm, HMI touch screen. |
| ZJZ | Automatic Glue station | set | 1 | 30 | Customers -owned pipeline . Glue configuration is composed by carrier tank,main tank,storage tank, |
technical parameters:
1,Backstands action: full hydraulic operation Corugated Cardboard Product Line
2,the range of clamping paper:MAX2500mm MIN800mm Corugated Cardboard Product Line
3 ,clamping diameters : MAX￠ 2500mm MIN ￠ 350mm Corugated Cardboard Product Line
4 , Unilateral maximum load: the MAX.5000Kg Corugated Cardboard Product Line
5,Paper holder spindle diameter:￠270mm 6,Working air pressure(Mpa):0.4---0.8Mpa 7,working power:voltage 380V frequency 50Hz Corugated Cardboard Product Line
Hydraulic system parameters:
1,working pressure (Mpa):16---18Mpa Corugated Cardboard Product Line
2,hydraulic cylinder working range(lifting):￠125×440mm Corugated Cardboard Product Line
3,hydraulic cylinder working range(clamping /Traverse):￠80×1300mm Corugated Cardboard Product Line
4,hydraulic station motor power:4KW short (S2)working system rated voltage and frequency:380V 50Hz Corugated Cardboard Product Line
5,hydraulic station solenoid valve working voltage:220V 50 Hz Corugated Cardboard Product Line
structural feature:
On the double position paper on design, hydraulic clamp for paper, paper unloading hydraulic push rod save manpower, hydraulic motor traction feeding trolley Corugated Cardboard Product Line.
Track buried whole, the main frame of the 18th channel, beam and ¢ 20mm drawing bar welding, rail length 9000mm Corugated Cardboard Product Line.
Each paper Paper holder with both the car from both sides of the paper simultaneously Corugated Cardboard Product Line.
Preheat roller accord the pressure container national standards,and enclose the pressure container certificates and inspection certificate Corugated Cardboard Product Line.
Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable Corugated Cardboard Product Line.
Electric adjustment angle, and angle can rotation adjustment the preheat area in the range of 360° Corugated Cardboard Product Line.
