1800mm 3/5/7 Plys Corrugated Production Line

Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMWJ80-1800
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wrapped with wooden case or film.
Delivery Time 14 days after deposit.
Payment Terms L/C, T/T
Supply Ability 10 sets per month.
Product Details
Type Packaging Line Application Machinery & Hardware
Packaging Material Plastic, Wood Driven Type Electric
Automatic Grade Automatic Condition New
Voltage 220v/380v/440v Packaging Type Film
Warranty 1 Year Power 65-85kw
High Light

7 Plys Corrugated Production Line


5 Plys Corrugated Production Line


1800mm Corrugated Production Line

Leave a Message
Product Description

Long Working Life 1800mm 3/5/7 Plys Corrugated Paperboard Production Plant

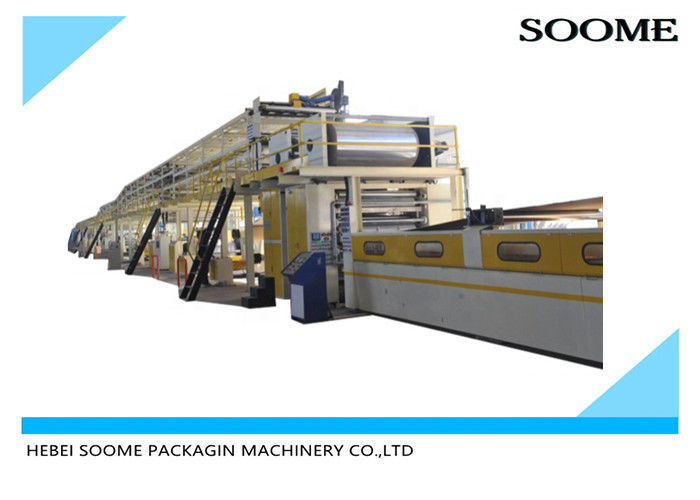

SOOME Packaging Machinery automatic 3/5/7 plys corrugated carton box making machine production line is suitable for the production of corrugated paper, cardboard boxes and cardboard. Widely used in cartons,packaging and other paper products. The 3/5/7plys corrugated paperboard production plant mainly consists of the following equipment: Mill Roll Stand, surface paper(core-paper) pre-heater, Single facer, Conveying Span Bridge, Glue Application Machine, Double Facer, Slitter Scorer, Cut-off, Conveyer and Stacker, Heating System, Air compression system and Glue Making System, etc.


2.Function and Characteristics

1) Hydraulic Mill Roll Stand

Max.diameter of raw paper: Ø2500mm.

Min.diameter of raw paper: Ø300mm.

Working width: 1400-2500mm.

The operation for this corrugated paperboard production plant of lifting up or lowering down, clamping, loosening, moving and centering of raw paper are all controlled through hydraulic pressure with fast paper feeding.

This corrugated paperboard production plant machine applies pneumatic braking for tension adjustment of raw paper and the clip head is designed to be taper or expansion type.

2) Electrical Mill Roll Stand

3) Single & Multi-roller Pre-heater

4) Pre-heater (Core paper)

The diameter of the pre-heater for the corrugated paperboard production plant are 900mm,1000mm for your choice.

The pre-heater with this corrugated paperboard production plant can adopts fixed style and adjust the surface of the wheel basing on the wearing.

Pre-heater of the corrugated paperboard production plant can do self-rotation to increase the effect of heat conducting with manual brake.

The pre-heater can adopt gear motor constant speed rotation, uneasy to break the paper for corrugated paperboard production line.

The pre-heater wheel is up to the standard of the national pressure vessel manufacturing with the certificate.

Electric adjusting the pre--heating area; the adjusting range is 60°-240° with the corrugated paperboard production plant.

The raw paper of the corrugated paperboard production plant can be moved correction to reduce breaking paper and increase the paper molding of the inspection certificate.

Working width: 1400-2500mm.

5) Single facer

Paper conducting style is fingerless vacuum absorption, which has been equipment with wind adjusting device.

Individual driving box and universal joint drive adopted to stop the force epicenter and improve the steadiness of the operation for the corrugated paperboard production plant.

Pneumatic control is equipped with glue roller, corrugation press and single-side conglutination.

Automatic glue supply system, electric separate serum system, adjusting breadth convenient and swift.

Electric adjusting the thickness of the gluing area, with number display (PLC auto adjusting glue system for choice).

Main bearing adopts lubricated by High temperature resistant grease with the corrugated paperboard production plant.

Corrugated roller adopts good quality chrome molybdenum steel making, after heating the hard is HRC55-60 and the surface is grinded and chrome plated.

The active force adopted frequency motor with frequency changer, can achieve to adjust speed and the back equipment at the same time.

It can adopt magic eye trace system, stop paper automatic ebb glue and stop the machine for this corrugated paperboard production plant.


Working width: 1400-2500mm.

6) Double layer over bridge

7) Triplex pre-heater

8) Gluing machine

Single layer, double layer and three layer are used in 3,5,7 ply production line.

High precision and chrome plated anilox roller, well-distributed glue and used up less glue.

Auto circle glue supply system to prevent the sinking of the glue with this corrugated paperboard production plant.

Free pre-heating system can speed up the glue pasting and improve the adhesive strength.

Pressing roll and pasting roll, pasting roll and gluing roll's gap electric adjusting.

Electric glue pasting space(GLUE-spread PLC for choice) with this corrugated paperboard production plant.

Press roller device is adopted to press paper and paste glue and press roller device is controlled to go up and down pneumatically.(press board for choice) with this corrugated paperboard production plant.

With external electric supply and glue pasting roller individual drive device.(self electric supply for choice)

Auto-control glue device and auto-check broken paper unit for choice with this corrugated paperboard production plant.

Max. Speed: 220m/min

Work width:1400-2500mm

9) Double facer

10) Main driver

11) CNC Thin Blade Slitter Scorer

The order adjustment of slitting blade and creasing wheel is independent servo controlled, fast, precise and reliable.

The slitting and creasing speed is variable-frequency controlled to realize the sync adjustment to the cardboard speed.

The creasing gap can be automatically sync-adjusted during order change with this corrugated paperboard production plant.

It is equipped with 8 colorful touch screen,convenient for operating and monitoring on site.

It is provided with communication interface to be on line with the central monitoring and managing system for auto order change and order management.

The auto deflection-correction device is optional to automatically track the deflection-correction operations of sheet edge and color mark with this corrugated paperboard production plant.

Technical parameters

Working width: 1800mm, 2200mm

Max.speed: 200 m/min

Min. Slitting width: 150mm

Min.creasing width: 0mm

Deflection-corrected range: 100mm

Deflection-corrected precision: 1mm

12) NC cutting machine

With single layer or double layer structure for choice

Adopts individual AC servo motor, AC servo motor controls cutter with high efficiency and high precision with this corrugated paperboard production plant.

Adopts PLC to display all kinds of production information which can be looked through, revised, added or canceled.

The computer can store many groups orders and can change specifications automatically.

The screw-knife is made of special material with less cutting force, high efficiency and long service life.

The drive box adopts oiled exact gear drive with little space, low noise and steady and steady transmission.

Output paper adopts individual motor drive; automatically follow the speed of this corrugated paperboard production plant.

The length of the cut-paper is 500mm-9999mm;cutting precision is ±1mm.

Max.speed: 200m/min

Working width:1400-2200mm.

13) Sackers-NCDM type computer horizontal verticalangle stacker

14) Glue making system

15) Pneumatic system

16) Steam recycling system

17) Electric System


3.Technical Parameters


Width of paperboard 1600mm
Design Speed 150m/min
Practical Speed 80-100m/min
Face Paper 100-250g/m2
Power 65-85kw
Voltage 220v/380v/440v





1800mm 3/5/7 Plys Corrugated Production Line 0
