| Place of Origin: | China |
| Brand Name: | SOOME |
| Certification: | CE |
| Model Number: | 2000 Type |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case or wrapping with plastic film |
| Delivery Time: | 15 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 per/mounth |
| Type: | Packaging Line | Voltage: | 220v/380v/440v |
|---|---|---|---|
| Application: | Machinery & Hardware | Warranty: | 1 Year |
| Color: | Customized Color | Max. Working Pneumatic Pressure: | 0.6-0.9Mpa |
| Max. Supporting Weight (One Side): | 3t | Pneumatic Source Pressure(Mpa): | 0.4---0.8Mpa |
| Max. Paper Mill Dia: | 2000mm | Main Shaft Dia: | Φ242mm |
| High Light: | 5Ply Hydraulic Mill Roll Stand,2200 Hydraulic Mill Roll Stand,0.8Mpa Hydraulic Mill Roll Stand |
||

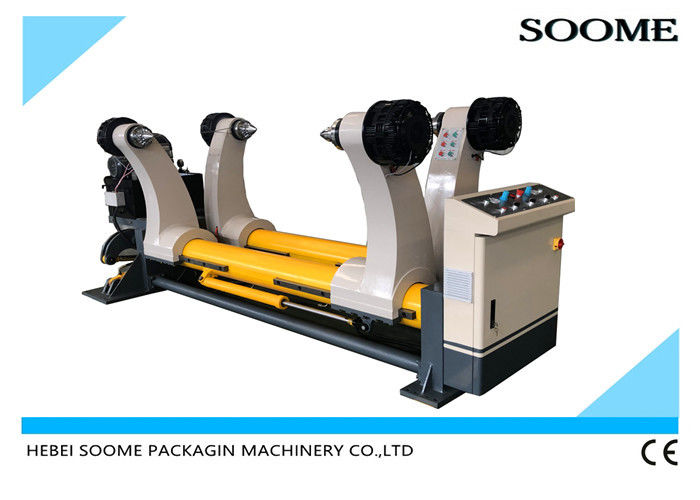

2200 Type 5 Ply Hydraulic Mill Roll Stand For Corrugated Carton Production Line
We are the professional manufacturer of corrugated carton production line with 20 years of manufacturing experience in DongGuang.Our main products are the complete corrugated carton production line, flexible printing slotting & die cutting machine, carton making and converting machine. The complete corrugated carton production Line is composed of hydraulic mill roll stand, high speed single facer, N.C slitter scorer machine, N. C cut-off machine, stacking as well as rotary slotting machine, folder gluer machine etc.
Our company has advanced technology, perfect design and reliable guarantee system for machines. Based on honesty and credit, we are committed to provide our customer with high quality products and favorable prices and best service. We welcome you to visit our company and give us your valuable guidance. The production process of the corruagted carton production line can be send it to the customer via video.
Electric shaftless mill roll stand :
This machine used for corrugated carton production line
1. Effective working width : 400 -1850mm
2. Single arm max load weight: 1.8 ton
3. Symmetrical structure may also install two original paper, tube bundle is kept for paper assignments, paper lift, clamp, loosen, and move, adopt electric shift control.
4. Each motor is equipped with a friction clutch, so that in case of overload idling sprockets slipping, effectively protect machine and motor role.
5. Paper tension is adjusted by pneumatic brake or manual brake, top with tapered tip or expansive top.
Disc brake and automatically bulge style chuck.
6. Each shaftless feeder rail bracket with two sets, both on paper trolley: trolley fitted with guide wheels on paper, you can stesdily push the paper in place. Rails using the 12th channel and guide post weld on paper using 12mm car.Welded steel, paper feed rail length 4500mm.
Hydraulic mill roll stand:
This machine used for corrugated carton production line
1. Effective working width : 800-2500mm
2. Single arm max load weight: 3 ton
3. Symmetrical structure may slao install two original paper, tube bundle is kept for paper assignments.
4.Adopt hydraulic drive, can complete base paper lifting, clamping , loosen, move on .
5. Adopt pneumatic tension adjust base paper tension and automatically bulge style chuck.
6. Tension control equipment with pneumatic brake, also can connect with automatic paper splicer to achieve quick paper supply.
Technial parameters:
| Max. Working Width | 2200mm |
| Min. Working Width | 900mm |
| Max. Paper Mill Dia | 2000mm |
| Main Shaft Dia | Φ242mm |
| Max. Working Pneumatic Pressure | 0.6-0.9Mpa |
| Max. Supporting Weight (One side) | 3T |
