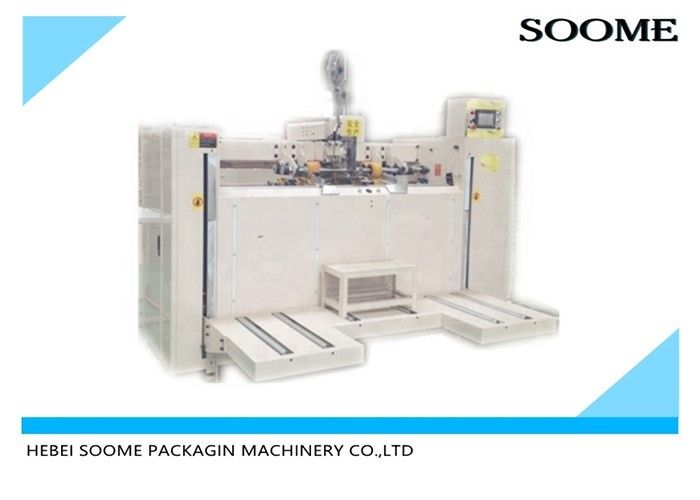

Single Piece Manual Folding Wire Flexible Carton Stitching Machine

Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMDXJ-3800
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details wooden case or film.
Delivery Time 14 days after deposit
Payment Terms L/C, T/T, MoneyGram
Supply Ability 40 sets per month
Product Details
Type Cardboard Stitching Application Machinery & Hardware
Driven Type Electric Usage Making Carton
Condition New Automatic Grade Automatic
High Light

flexible carton stitching machine


600 nails/min Carton Stitching Machine


corrugated box stitching machine

Leave a Message
Product Description

Carton Box Semi-Auto Single Piece Manual Folding Wire Stitching Machine



High speed, about 600nails/per minute. Operate easily, it does not require skilled personnel,more flexible,
Effective in reducing labor intensity, double servo drive,operation more convenient,less mechanical transmission part, so the failure rate I slower. A dual purpose machine, single and double sheet, irrgular carton, cartons without cover and bottoms can be nailed.


2.Features and Characteristics


1. Imported dual servo motors, high precision, decreased the mechanical driving parts and malfunction.

2. Touch screen control the parameters (nails distance, nails qty/type, back baffles), changing fast and convenient.

3. Back electrical baffle adopt stepper motor, accurate and fast.

4. The complete stitching head adopts special steel with precise processing.

5. Carton sizes and nails distance changing time need 1 minute, save more time.

6. Can stitch intensive nails, single nail, double rows nail, finish in one time.

7. Front paper feeding part is automatic counting, settled with photoelectric sensor, can lift up automatically when feed paper.

8. Last section has automatic counting function, finished cartons can be piled as per the pre-set qty (1~99) and convey out for easy packing.

9. Will warn automatically when the brass wires finished.

10. Max. speed:600 nails/min.


3.Technical Parameters


Max length of board 3800mm Min length of carton 250mm
Min length of board 1600mm Max height of carton 2000mm
Max width of board 3000mm Min height of carton 200mm
Min width of board 250mm Max width of nail tongue 40mm
Min slotting depth 50mm Max stacking height 350mm
Max slotting depth 290mm Size of machine 2850*1030*2000mm
Max width of carton 650mm Weight 1.5
Min width of carton  200mm Max speed(nails/min) 600
Max length of carton 850mm Nails 1-99
