Corrugated Cardboard Specifications Cardboard Production Line Single Face Corrugated Cardboard

Place of Origin China
Brand Name Soome
Certification CE
Model Number SCX-A
Minimum Order Quantity 1 set
Price contact
Packaging Details plastic film
Delivery Time 180 days
Payment Terms L/C, T/T, Western Union
Supply Ability 12 set per year
Product Details
Packaging Material Plastic,Wood Warranty CE
Power 260-380KW Name Corrugated Board Face Paper Production Line
Usage Making Corrugated Cardboard Product Name Automatic Corrugated Carton Packing Machine
Function High Efficiency Color Or According To Your Request
High Light

corrugated paperboard production line


carton production line

Leave a Message
Product Description

Corrugated Cardboard Specifications Cardboard Production Line Single Face Corrugated Cardboard


Max. Working Width 2200mm
Min. Working Width 900mm
Max. Paper Mill Dia 1500mm
Main Shaft Dia Φ242mm
Max. Working Pneumatic Pressure 0.6-0.9Mpa
Max. Supporting Weight (One side) 3T
Pneumatic Source Pressure(Mpa) 0.4---0.8Mpa

Corrugated Cardboard Specifications Cardboard Production Line Single Face Corrugated Cardboard 0

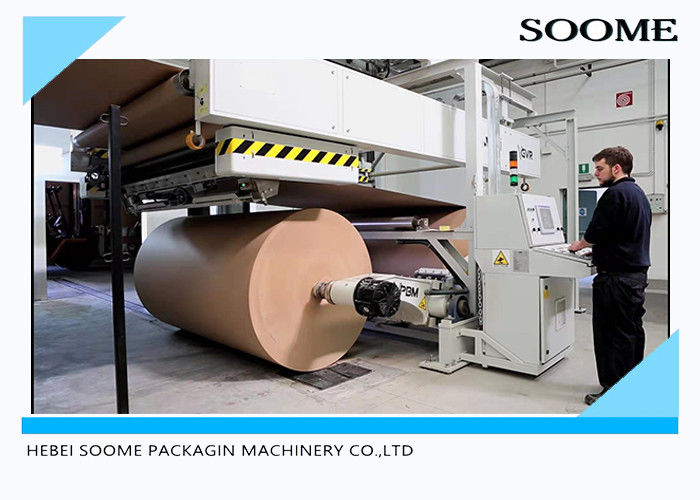

Mill roll stand

 (YZJ2-2500 type. paper up and down,paper clip arm adopt hydraulic drive. it can proceed clamp, loose and move left and right at same time, double point pneumatic brake,expansion chuck,the hydraulic station valve is Taiwan brand.)


Single facer

(KDW3-2500 type, Inner vacuum suction type, universal coupling drive, diameter of corrugated roller is 360mm, big and small roller design, the surface spray tungsten carbide,fast change corrugated roller within 20 minutes, adopt electric trolley to load corrugated rollers into single facer, locked by pneumatic. Glue isolation is controlled by PLC, gluing roller can run independently when single facer stop, the quantity of glue adjust automatically following the speed or manual. )


Surface paper pre-heater

MY1-2500 , the diameter is 1100mm. The machine is electric adjustment for the heating area, inverted steam trap is Taiwan brand.)


Core paper heater

 (XY1-2500, the diameter is 1100mm . The machine is electric adjustment for the heating area , inverted steam trap is Taiwan brand.)


Three layer pre-heater

 (DY1-2500, the diameter is 1100. The machine is electric adjustment for the heating area, inverted steam trap is Taiwan brand.)


Two layers pasting machine

(TJ2-2500 , it adopts pressure roller pasting , the pressing paper roller adopts electric adjustment with pneumatic control for the upper and lower. The quantity of the glue and the pressing paper gap adopt electric adjustment, with the touch screen shows the quantity of the glue, the glue quantity adopt auto control, It is equipped with breaking paper device and independent variable frequency motor drives each layer.)


Two layers over bridge conveyor

 The breaking paper automatic detection device and two sets of control device with one is on the bridge, the other ison the ground.


Double facer

It adopts concentrated pressing roller to make sure of the moulding quality. It is automatic hydraulic up and down, the pressure can be adjusted in three parts with the pneumatic adjustment.The heating plate display temperature with the panel , the cotton tape adopts the pneumatic to adjust the up cotton belt tension. the up cotton belt adopt automatic correction and with the manual adjustment for the under cotton belt tension. the main motor adopts frequency motor.


Main drive unit

(ZCD2-2500,the main motor adopt invertor motor with variable frequency conversion control)


Slitter machine

(2500 type, five slitters and eight socrers. It adopts precise ball screw to drive and the linear guide orientation, computer control and automatically arrange the order. Positioning accuracy is± 0.5 mm,lines pressing type with electric conversion,computer control automatic sharpening, the whole machine electric correction. the slitter and scorer shaft adopt inverter control. automatic synchronization operation.


Pneumatic transmit paper frame

GZJ-2500 Pneumatic transmit paper frame,automatically transmit the paper after slitter scorer machine to cut off machine by up and down layers


Double Layers Computer Rotary Cutting Off Machine

(SHQ2-2500 type,Double layers rotary cutting off blades, adopt AC servo motor from Italy. Multiple orders processing function, can change manually or automatically. Feeding and outputting board by frequency control,automatic tracking the speed of corrugation line, cutting off length 400-9999mm. PLC System is from Taiwan.


Double Layers Computer Counting Stacker

(SDM2-2500 type, Two layers of stacking, multiple belts longitudinal transportation in each layer, driven by frequency motor, automatic tracking the speed of corrugation line, vertical transport sheets by electric motor. Sheets stacking table is controlled segmented pneumatic, sheets baffle is adjusted automatically to adapt the length of sheets. Counting, transporting, stacking are controlled by PLC system, max length of sheets are 3000mm.


The steam system

The steam pipe and the rotary heating connector adopt flexible metal tube to connect. The machine is equipped with pressure monitoring table. It can adjust the steam pressure to control the working temperature, the steam trap adopt Taiwan brand.)


Glue making system

(the main glue barrel, the carrier glue barrel and glue storage barrel is one set. the main glue barrel adopts electromagnetic motor to control. The single facer and the pasting glue machine adopts independent glue barrel . Each equipment with glue, glue supply to them circularly, and the level is controlled automatically .


Air compression system

(it adopts 1.0 m³ air collector pot and the air filter to make up a air compression station , the air compression is provided by the customer.


The electric system

it is equipped with the usual working condition display board, the production and speed shows all the time . The speed of the whole line adjusts synchronously. The main power adopts variable frequency motor to control.


Trolley and rail

SZ-2500 trolley and rail, the rail is 6 meters length.
