Corrugated Cardboard Cartons Corrugated Cardboard Production Line Corrugated Board Box

Basic Information
Place of Origin: China
Brand Name: Soome
Certification: CE
Model Number: SCX-FSB
Minimum Order Quantity: 1 set
Price: contact
Packaging Details: plastic film
Delivery Time: 160 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8 set per year
Detail Information
Warranty: 1 Year Power: 260-380KW
Name: High Speed 3 5 7 Ply Corrugated Cardboard Production Line Usage: Making Corrugated Cardboard
Product Name: Corrugated Cardboard Production Line Function: High Efficiency
Color: Or According To Your Request
High Light:

corrugated paperboard production line

,

corrugated box production line


Product Description

Corrugated Carton Production Line Corrugated Cardboard Production Line Double Corrugated Cardboard

Parameter:


Max. Working Width2200mm
Min. Working Width900mm
Max. Paper Mill Dia1500mm
Main Shaft DiaΦ242mm
Max. Working Pneumatic Pressure0.6-0.9Mpa
Max. Supporting Weight (One side)3T
Pneumatic Source Pressure(Mpa)0.4---0.8Mpa

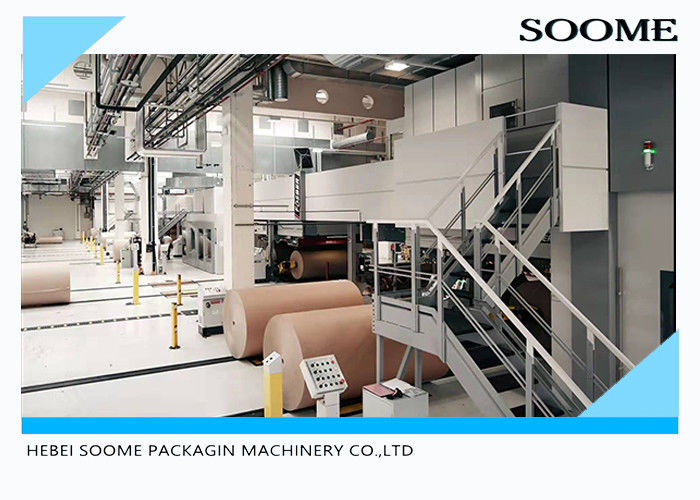

Corrugated Cardboard Cartons Corrugated Cardboard Production Line Corrugated Board Box 0
Pos. 1

Reel Stand ODM* equipped with air ventilated brakes and solid chucks
Reel Feeding ODM*
- 2 reel tracks, each 9 m travel way
- one motorized trolley per track

Pos. 2
including web tension control DUAL CONTROL paper break detection

including web tension control DUAL CONTROL paper break detection
paper breaks at speeds up to 120 m/min

automatic splice release at pre-set paper length

Pos. 3
1 Steady Facer

- tungsten coated
- peripheral heating of corrugating rolls
- one manual cassette trolley for quick flute changes
- Heavy Duty pressure roll to suit all standard board grades above 90 g/m2
- hydraulic control for corrugating roll pressure individually adjustable per side
- “Soft Touch Control” for applicator roll by completely self-adjusting hydraulic system
- fully retractable glue unit for easy access and quick cleaning
- automatic glue gap control in regard to machine speed
- full size steam shower chest with drain and quick stop function
- PLC control with touch screen and process data indication
1 Inclined conveyor up to the bridge
- with AC drive energy refeeding
- with automatic wrap adjustment
- with AC drive energy refeeding
- with automatic wrap adjustment
1 Width-related glue dam positioning

1 Additional cassette module equipped with one set of E-flute including chrome coated corrugating rolls, vacuum connection and cleaning finger bar; peripheral heating of corrugating rolls + Cassette trolley, manually or motor driven (option)

Pos. 5
1 Simplex Bridge ODM* consisting of :
Steel construction with steel catwalk on operator side, duplex bridge drive and horizontal conveyors
1 bridge brake with pneumatic brake



Pos. 6
1 Double Preheater 900mm ODM*
- operator control and display integrated in the Glue Unit GU-180 operating panel
- with AC drive energy refeeding
- with automatic wrap adjustment

Pos. 7
1 Simplex Glue Unit GU-180
- with individual servo drives
- integrated touch panel

Pos. 8

- pre-set loading pressure from full load to free floating depending on board combination
- automatic lifting of edge bars to prevent extensive belt wear when running small width papers

Pos. 9
1 Rotary Shear RD-180 RD-180 for normal order change

- 30 kW A.C. drive
- max. cutting speed 180 m/min.
1 Synchro Cut triggered cut at order changes for max. 0.5 m order change waste


Pos. 10
1 Slitter Scorer

SR-180 - scorer, scorer, slitter
- for 5 outs
- trim tube positioning
- Disc-Cut system, cut from bottom side
- Swing Change for uninterrupted web during order change
1 Air conditioning unit for machine side switch cabinets
1 3-in-1-profile (male – female, male – male, male – male offset)


Pos. 11

1 Transfer Tables, Simplex, in stainless steel construction between Rotary Shear / Slitter Scorer and Slitter Scorer / Cutoff
1 Protection devices for SR-230 and HQ-230

Pos. 12
1 Simplex High Speed Cutoff HQ-180
1 Double roll infeed for improved pulling of heavy boards

Pos. 13
1 Automatic Simplex Stacker US-180
- chamber length: 3,600 mm - stack height : 1,800 mm
- plastic belt cross conveyor
- air conditioning unit
Pos. 14

CORRUGATOR CONTROL SYSTEM
1 Duplex Bridge Level Control BLC with light barrier detection
1 Parallel operating screen
