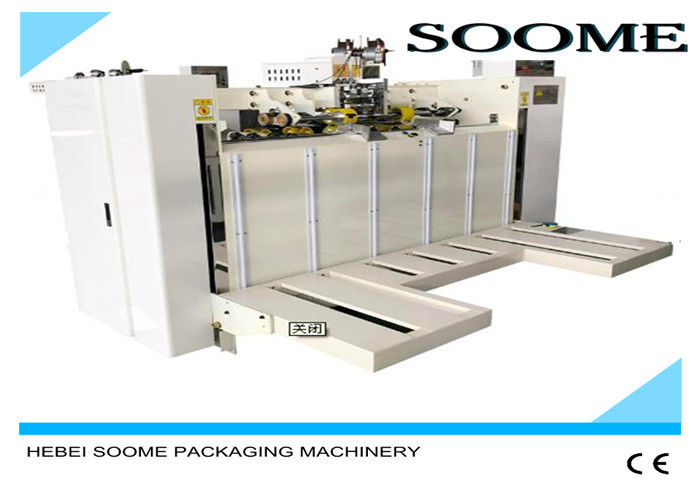

Smooth Sealing Carton Box Making Machine , Safety Box Stitch Sewing Machine

Place of Origin Made In China
Brand Name SOOME
Certification CE
Model Number SMDX-DP-2000
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Wapped With Film
Delivery Time 1 Month
Payment Terms L/C, T/T, Western Union
Supply Ability 50 Sets/Month
Product Details
Condition New Automatic Grade Semi-Auto
Driven Type Electric Warranty 1 Year
Precision 1MM Weight 3T
High Light

corrugated box stitcher


carton stitching machine

Leave a Message
Product Description

Smooth Sealing Carton Box Making Machine , Safety Box Stitch Sewing Machine




The nail box machine is one of the post processing equipment of the carton. The principle of the machine is the same as the principle of the common stapler, but the nail box machine is used as a pad for the carton. This series of products have the advantages of lightness, easy operation, good wear resistance, smooth sealing, safety and firm, and can reduce the strength of labor and improve work efficiency. It is widely used in the sealing of various cartons and calcium plastic boxes which need heavy articles or not easy to use sticky tape.


Detailed Information


1. The semi automatic nail box locomotive can reach four hundred nails per minute, and the paper carrier automatically rises to maintain the height of the paper to the personnel, and automatically drops after the paper table is delivered. The electronic control system is controlled by PLC PLC, and the control system is stable and easy to maintain. There are single nail, double nail and reinforcing nail for the selection of nail, easy installation without special basic work, one minute quick size double change, automatic counting of paper feeding section and bundling of bundles.
2. The technology of carton packaging machinery is constantly developing, and the requirements for the corrugated production line are getting higher and higher, such as the printed pattern, the density of the nail box machine. Therefore, the automatic / semi automatic nail box machine is also more applied in the carton factory. Compared with the manual nail box machine, the automatic / semi-automatic nail box machine is not only efficient in production, but also keeps the nail box evenly spaced and beautiful. The main difference between the automatic nail box machine and the semi-automatic nail box machine lies in the automation of paper feeding. The delivery paper of the automatic nail box machine is folded by the paper feeding device and sent to the nail box for the nail box; and the semi automatic pin box machine is folded and sent by the artificial cardboard.
3. To achieve the above goal, the transformation of technical equipment in carton industry is an important aspect, which will provide opportunities for carton machinery and equipment enterprises. In the economically developed areas, the small and medium-sized enterprises are transforming and strengthening the post processing equipment, removing the original paperboard small equipment, reconfiguring and strengthening the processing equipment according to the market business volume, and fundamentally break the "big and all", "small and complete" backward mode, so that the quality of the carton is improved in an all-round way.


Main features


1. Imported dual servo motors, high precision, decreased the mechanical driving parts and malfunction.

2. Touch screen control the parameters (nails distance, nails qty/type, back baffles), changing fast and convenient.

3. Back electrical baffle adopt stepper motor, accurate and fast.

4. The complete stitching head adopts special steel with precise processing.

5. Carton sizes and nails distance changing time need 1 minute, save more time.

6. Can stitch intensive nails, single nail, double rows nail, finish in one time.

7. Front paper feeding part is automatic counting, settled with photoelectric sensor, can lift up automatically when feed paper.

8. Last section has automatic counting function, finished cartons can be piled as per the pre-set qty (1~99) and convey out for easy packing.

9. Will warn automatically when the brass wires finished.

10. Max. speed:600 nails/min.


Electric systerm Machinery systerm Technical Guid
Servo AC drive Mitsubishi Stitching head Zhuhai Speed 500-600Nails/min
Servo Motor Mitsubishi synchronous pulley Foshan Precision 1mm
PLC OMRON Head reducer Xinbao Start Method Sensor or foot switch
Japan Japan
Contactor Shili Gear reducer Zhejiang Stitching model Single piece or double piece
Relay Schneider synchronous belt Zhejiang sanwei Power 6kw
Touch screen Siemens —— —— Weight 3000kg
Magnetic valve YDK —— —— —— ——
