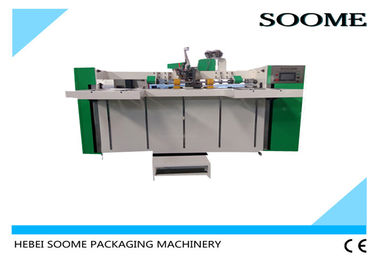

Horizontal Carton Box Stitching Machine Manual Feeding Nailing To Hold Heavy Products

Horizontal Carton Box Stitching Machine Manual Feeding Nailing To Hold Heavy Products

  • Horizontal Carton Box Stitching Machine Manual Feeding Nailing To Hold Heavy Products
  • Horizontal Carton Box Stitching Machine Manual Feeding Nailing To Hold Heavy Products
  • Horizontal Carton Box Stitching Machine Manual Feeding Nailing To Hold Heavy Products
Horizontal Carton Box Stitching Machine Manual Feeding Nailing To Hold Heavy Products
Product Details:
Place of Origin: Cangzhou, China
Brand Name: SOOME
Certification: CE
Model Number: SMDX-DP-2800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 25-30days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30sets per month
Contact Now
Detailed Product Description
Application: For Stapling / Nailing Of Corrugated Cartons Speed: 600 Nails / Min.
Size: 2500 / 2800 / 3000 Or As Customer Need Process Board Qty: Single Pc / Double Pcs
Control System: Touch Screen Control Motor: Double Servo Motors
Nails Qty: Single Nail / Double Nails / Strengthen Nails Electrics Brand: Schneider / Omron / CHINT / WEINVIEW
Warranty: One Year Machine Size: 3150x1030x2000mm
High Light:

corrugated box stitcher

,

carton stitching machine

Horizontal Carton Box Stitching Machine Manual Feeding Nailing To Hold Heavy Products



I. General introduction



1. Stitching machine is one of the carton processing machine in the last part. Manual feeding of sheets, use copper wire to staple through the top stitching head. Therefore, the corrugated cardboard can be folded and closed into a carton for packing.



2. The cartons with stitching nails is more strong to hold heavy products. So most use for big and thick cartons. While for small boxes mostly use folder gluer.



II. Main features



1. Imported dual servo motors, high precision, decreased the mechanical driving parts and malfunction.

2. Touch screen control the parameters (nails distance, nails qty/type, back baffles), changing fast and convenient.

3. Back electrical baffle adopt stepper motor, accurate and fast.

4. The complete stitching head adopts special steel with precise processing.

5. Carton sizes and nails distance changing time need 1 minute, save more time.

6. Can stitch intensive nails, single nail, double rows nail, finish in one time.

7. Front paper feeding part is automatic counting, settled with photoelectric sensor, can lift up automatically when feed paper.

8. Last section has automatic counting function, finished cartons can be piled as per the pre-set qty (1~99) and convey out for easy packing.

9. Will warn automatically when the brass wires finished.

10. Max. speed:600 nails/min.



III. Technical parameters



Max.Size(A+B)X2 3800mm Min. Length A 250 mm
Min. size(A+B)X2 1600mm Max. Height D 2000 mm
Max. size (C+D+C) 3000mm Min. Height D 200mm
Min. size (C+D+C) 250mm Max. Width of nail tongue E 40 mm
Min. Cover C 50mm Max. Stacking height 350mm
Max. Cover C 290mm Width of machine 2850x1030x2000mm
Max. Width B 650 mm Weight of machine(T) 1.5
Min. Width B 200mm Max. speed (nails/min) 600
Max. Length A 850mm Nails 1-99



Horizontal Carton Box Stitching Machine Manual Feeding Nailing To Hold Heavy Products 0



IV. Machine photos



Electrics brand: Schneider, Omron, CHINT, WEINVIEW



Horizontal Carton Box Stitching Machine Manual Feeding Nailing To Hold Heavy Products 1

Horizontal Carton Box Stitching Machine Manual Feeding Nailing To Hold Heavy Products 2
