Electrical Adjustment Single Facer Corrugated Machine Flute Forming Machine

Place of Origin Cangzhou, China
Brand Name SOOME
Certification CE
Model Number SMDM-320x1800
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Wrapped with film
Delivery Time 30-50days after deposit
Payment Terms T/T, Western Union, L/C
Supply Ability 25sets per month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Application Corrugated Packaging Field For Making Flute Design Speed 150m / Min.
Economic Speed 120m / Min. Working Width 1800mm
Flute Shape A / C / B / E / F Flute Roller Diameter 320mm
Corrugation Roller Material Alloy Coated With Tungsten Carbide Vacuum Suction Type Outer Suction
Glue Width Electrical Adjustment Driving Cardan Joint Driving
High Light

corrugated paperboard production line


carton production line

Leave a Message
Product Description

Electrical Adjustment Single Facer Corrugated Machine Flute Forming Machine


I. General Introduction


This machine is used in corrugated cardboard production line. It is the heart of the corrugated line for pressing flute / corrugation on the base paper then glue the flate surface / core paper together with the corrugated flute paper to make them into cardboard.


II. Parameters of Main Parts


Item Diameter (mm) Material
Upper & lower corrugated roller Φ280
Pressure Roller Φ290 45# seamless steel pipe, quenched
Glue Fixing Roller Φ120 20# seamless steel pipe
Pre-heating Roller Φ400 20G steel


III. Structural Features


1. It adopts wind adsorption for paper guiding to keep flute stability at high speed.

2. The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish flute rolling through vacuum box by fan.

3. The width of suction slot of lower corrugated roller is not more than 2.0-2.5mm, able to reduce the stripe mark on single side corrugated cardboard.

4. It adopts universal joint transmission to separate the vibration source, which makes the maintainability higher, the transmission more stable and the operation more reliable.

5. The reduction gear box adopts oil bath lubrication and closed gear transmission for vibration reduction.

6. It adopts auto-cycle glue supply and pneumatic control glue supply and return, making it be characterized by buffering effect.

7. The gluing roller surface is treated with special mesh nicking and chrome-plating.


IV. Raw materials and Bought-in Components


Base of drive parts: welded by channel from Tangshan

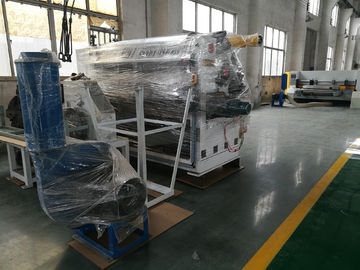

V. Packaging and loading


Electrical Adjustment Single Facer Corrugated Machine Flute Forming Machine 0Electrical Adjustment Single Facer Corrugated Machine Flute Forming Machine 1


VI. Company introduction


Hebei Soome Packaging Machinery is one of the professional manufacturer of corrugated carton machinery in north of China which dates from 1995.


We are specialized in developing and producing thin blade slitter scorer, cutting machines and folder gluer machine for corrugated cardboard, provide the whole dryend solution of production line. And we also manufacture carton production line, which is composed of hydraulic mill roll stand, pre-heater, single facer,stacker as well as printing die cutting machine and laminator, etc.


We also have the patent and our special thin blades for Slitter Scorer and other high quality accessories for corrugated carton machine.


The enthusiasm on cooperating with clients all over the world made us develop high quality machinery with reasonable price for you. We are always providing our best service after sales to get the long term cooperation with customer.


Expect to work with you in the near future!
