High Speed Single Ply Corrugated Cardboard Making Machine With Resin Sand Casting

Place of Origin Made In China
Brand Name SOOME
Certification CE
Model Number SMPL-320
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Wrapped With Film
Delivery Time 30 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 Sets/Month
Product Details
Type Packaging Line Warranty 1 Year
Speed 80-120 M/Min Color Customized
Voltage 380v 50Hz Material Steel
High Light

corrugated box production line

,

carton production line

Leave a Message
Product Description



High Speed Single Ply Corrugated Cardboard Making Machine With Resin Sand Casting



Summarize



The single facer is one of the important equipment of corrugated cardboard production line.The molding quality of corrugated cardboard is related to the correct use and maintenance of the single facer machine. The single facer machine produces the mechanical equipment of corrugated core paper-the special designation of corrugated paper in paperboard.In corrugated packaging industry, it is known as the heart of corrugated cardboard production line.



Machine Details



1. Adopt hood suction structure,matched high pressure powerful fan. Gas supply and electrical control cabinet to focus on the same operation, the operating side full cover closed.

2. High quality resin sand casting,wall thickness 200mm.Adopt independent gear box, Universal joint transmission structure.

3. Glue roller unit structure with the overall relocation,Maintenance can sway the machine at the overall maintenance,improve the working efficiency.

3. The humidity control apparatus equipped with a spray, so flute type to maintain good stability of deformation, avoid dry.

4. Glue department using integrated slide structure,Glue roller surface after grinding engraved with 25 lines and pit-style textured hard chrome plating.

5. Active force variable frequency motor drive, energy efficient, low failure rate.

6. Amount of glue size with electric adjustment, touch screen display and operation of the encoder transmission coating gap, high accuracy.

7. Power and operating parts with a safety net to ensure the safety of personnel in the operation of machinery.



Model SMPL-320S
Working width

1400 mm,1600 mm,1800 mm,

2000 mm,2200mm,2500mm or customized

Heating way Electric heating way
Operate direction Left or right according to customer’s factory
Designed speed 120m/min
Economic running speed 70-100m/min
Temperature range 160—200℃
Steam pressure 0.8—1.3Mpa
Air source 0.4—0.8Mpa
Flute type A,B,C,D,E,F,UV UVV

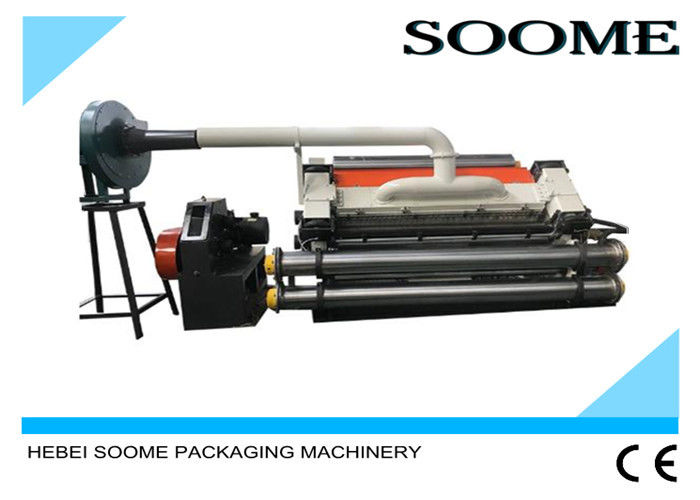

High Speed Single Ply Corrugated Cardboard Making Machine With Resin Sand Casting 0
