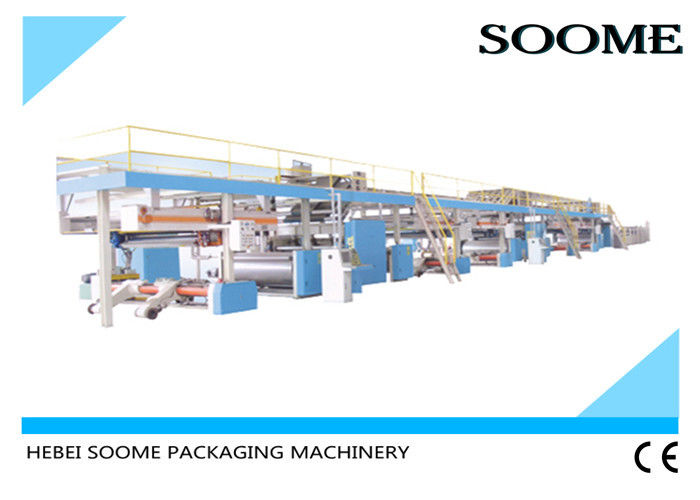

3 5 7 Ply Corrugated Cardboard Production Line , Sheet Board Making Machines
| Place of Origin | Cangzhou, China |
|---|---|
| Brand Name | SOOME |
| Certification | CE |
| Model Number | SMPL |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Wrapped with film |
| Delivery Time | 2.5-3months after deposit |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 20sets per year |
Product Details
| Usage | Production Line For Producing Corrugated Board | Working Width | 1400-2500mm |
|---|---|---|---|
| Cardboard Layers | 2 / 3 / 5 / 7ply As Customer Need | Flute Type | A / C / B / E Flute As Your Need |
| Design Speed | 120m/min. | Economic Speed | 80-100m/min. |
| Automation | Automatic | Engineer Service | Engineer Can Install And Train Overseas |
| Voltage | 220 / 380 / 415 / 400 V | Warranty | One Year |
| High Light | corrugated box production line,carton production line |
||
Product Description
3 5 7 Ply Corrugated Cardboard Production Line , Sheet Board Making Machines
I. General introduction
This line is the special equipment for corrugated board production.It mainly includes paper holder,single facer,conveyor bridge,glue machine,double facer,slitter,cut-off,stacker,and steam(or oil)heating system and glue preparing and supplying system.We offer corrugated lines of advanced,medium and simple level,for single wall,double wall and triple wall board production,with speeds varying from40 m/min to 200 m/min.,widths available from 1400mm to 2500mm.
II. Line composition
|
Design speed: 120m/min. Economic speed: 100m/min. for 3-layer sheet 80m/min. for 5-layer sheet |
||||
| No. | Name | Size | Configuration | Qty. |
|
1
|
ES-B Electric Mill Roll Stand | Φ1400mm | Welding model, with expansion clip and pneumatic brake | 5 |
| Rails & Trolley | Standard | 10 | ||
| 2 | SF-DW10S Single Facer | Φ280mm | With alloy steel flute rollers, variable-frequency motor, with gluing width electrically adjusted | 2 |
| 3 | TO-B Dual-layer Overbridge | Adsorbed type and deviation electrically corrected | 1 | |
| 4 | PH-B Single-roller Pre-heater | Φ600mm | With wrap angles electrically adjusted | 4 |
| 5 | PH-B Three-roller Pre-heater | Φ600mm | With wrap angles electrically adjusted | 1 |
| 6 | PM-C Dual-roller Pasting Machine | Φ210mm | With shaft loading | 1 |
|
7
|
DF-C Double Facer | 30″standard channel and hot plate 600mm×12pcs | With intensive pressure roller, pressure shaft hydraulic lifting, 2 piece of cotton belts, universal joint drive, cooling part: 4m | 1 |
| 8 |
Electrical type online slitter
|
1400mm model |
4blades 6scorers, electrical blades, manual scorers |
1 |
| 9 | SC-B Straight-knife Cut Off | Φ188mm | Standard | 1 |
| 10 | RF-A Square Output Machine | Standard | 1 | |
| 11 | Glue Making System | Standard | 1 | |
|
12 |
Air Source System |
Steam Tank 0.6m³ |
Standard | 1 |
| Air Storage System | With pressure meter and air-water separator | |||
III. FAQ
1. Q: Are you the trader or manufacturer?
A: We are the manufacturer with export qualification.
2. Q: Do you make OEM?
A: Yes, we can do.
3. Q: Where are your factory located in ?
A: We are in Dongguang town, Cangzhou city, Hebei ,China.
4. Q: Where is the nearest airport of factory ?
A: The nearest airport is in Tianjin,Jinan and Beijing. It take 4 hours from Beijing to Dongguang by car.
5. Q: Where is the nearest high-speed train station? How long from high speed train to factory ?
A: Cangzhou West station is the nearest one,from Beijing to Cangzhou ,take 1 hour.
6. Q: What is your business process?
A: Talking about clients requirements, confirm machines,make sales contract,pay for deposit, supplier arrange production, finish producing machines,buyer test machines, buyer pay for the balance payment,supplier load and ship machine.
7. Q: How to control machine quality ?
A: 1. Our company have strict quality control system from production to delivery since we already established for 23 years.
2. All material are environmental protection,non-pollution.
3. We have professional technician for supervising to production.
4. Have professional department to examine about every production process.
8. Q: Engineer can go abroad for debugging machine?
A: Our engineers can go abroad for debugging machine,buy need buyer to bear the engineers round trip ticket,room and board, 100usd/day for salary.
