Single Ply Corrugated Cardboard Production Line Electric Control 380V 50Hz

Single Ply Corrugated Cardboard Production Line Electric Control 380V 50Hz

  • Single Ply Corrugated Cardboard Production Line Electric Control 380V 50Hz
  • Single Ply Corrugated Cardboard Production Line Electric Control 380V 50Hz
Single Ply Corrugated Cardboard Production Line Electric Control 380V 50Hz
Product Details:
Place of Origin: China Hebei Dongguang
Brand Name: SOOME
Certification: CE
Model Number: SMDM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden or plastic * 20”container or Shipping LCL
Delivery Time: 25 days
Payment Terms: L/C, T/T
Supply Ability: 30 set / 3 months
Contact Now
Detailed Product Description
Color: Customized Usage: Making Corrugated Cardboard For Production Line
Warranty: 12 Months Working Speed: 80m/min
Design Speed: 100m/min Size: 1400/1600/1800/2000
High Light:

corrugated paperboard production line

,

corrugated box production line

Single Ply Corrugated Cardboard Production Line Electric Control 380V 50Hz


Model

Name

Unit

Qty

Remark

SMDW-1600

Single facer

set

1

Main corrugated roller ¢280mm, material 48CrMo alloy steel, treated with chrome. Adopt independent gearbox, cardan joint structure. Main frequency converter motor.

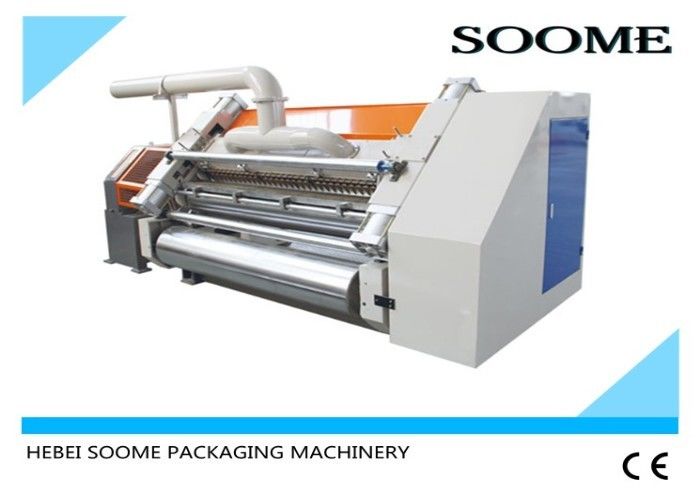

SMDW-1600 Vacuum suction type single facer

Structure features:

1.  Adopt cover suction structure, equipped with high pressure strong power fan. Indraft equipped with silencer, air supply and the electric control converged into the same cabinet, need to further than 1.5m from the host, the operation part is closed by the whole cover.
2. Cast iron structure of wallboard, thickness is 130mm.
3. The corrugated roller material is 48CrMo alloy steel, tempering, medium-frequency hardening, surface grinding, main corrugated roller diameter is ¢ 280mm, surface hardness above HRC58. Key parts bearings of corrugated roller, pressure roller use ZWZ heat-resistant bearings.
4. Pressure roller ¢ 284mm, surface grinding and chromate finish; Up-down moving controlled by air cylinder, material is medium carbon steel #45, thermal refining ( with buffer device).
5. Supplying and withdrawing glue both controlled by pneumatic, glue spreader roller diameter ¢215mm, engraved 25lines after surface grinding, then hard chrome plating treated, glue scrapping roller surface grinding and chromate finish.
6. Corrugated roller, pressure roller material is good brand, with the limiting device. Pressing air cylinder is ¢ 160mm.
7. Pre-heating roller adopt ¢ 320mm seamless steel pipe.

Technical parameters:

1. Working width: 1600mm Operation direction: left or right as your need.
2. Design speed: 80m/min Temperature range: 160—200℃
3. Air source: 0.4—0.9Mpa Heating method: steam heating

Diameter of rollers:

1. Corrugated roller dia.: ¢280mm Pressure roller dia.:¢284mm
2. Glue spreader dia.: ¢215mm Pre-heater dia.: ¢320mm

Power motors parameters:

1. Main drive motor: 7.5KW nominal voltage: 380V 50Hz continuous (S1) working form
2. Suction motor: 7.5KW nominal voltage: 380V 50Hz continuous (S1) working form

Main purchased parts and material:


ItemBrand or OriginMaterial model
WallboardSelf-madeHT200
Transmission caseHebeiSteel welded
Rotating joint and metal hoseTengzhou
Main drive motorHengshui, Hebei7.5KW adjustable-speed motor
BearingsHRB/ZWZ
Mounted bearingsFive rings in Zhejiang
High pressure fanShanghai Yingfa
Air cylinderZhejiang
Electromagnetic valveZhejiang
ContactorCNINT or DELIXI



Single Ply Corrugated Cardboard Production Line Electric Control 380V 50Hz 0
