Chrome Plated Corrugated Cardboard Production Line Rated Max Load 3000kg

Place of Origin Made In China
Brand Name SOOME
Certification CE
Model Number SMDW
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Wapped With Film
Delivery Time 2 Months
Supply Ability 50 Sets/Month
Product Details
Condition New Driven Type Electric
Color Customized Voltage 220V / 380V
Material Cast Iron Application Machinery & Hardware
High Light

corrugated box production line


carton production line

Leave a Message
Product Description

Chrome Plated Corrugated Cardboard Production Line Rated Max Load 3000kg

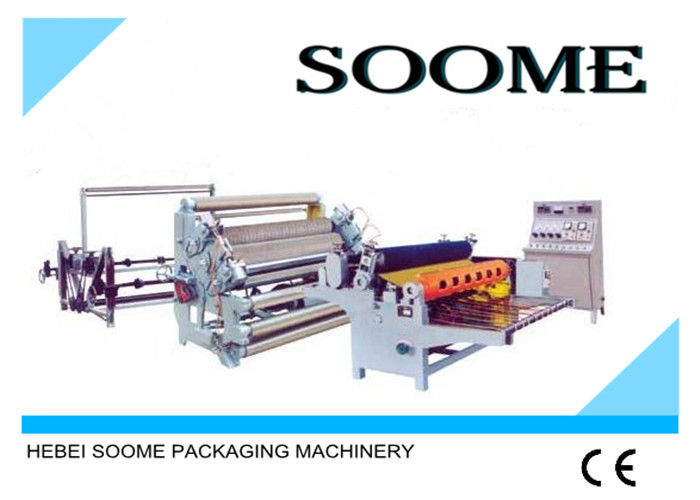

Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.




1. Cover vacuum suction.
2. Corrugating roll is made of high quality alloy steel 48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.
3. No gear transmission.
4. Glue roll is lifted and lowered pneumatically.
5. Independent glue clean device and electric glue-separate board to control the width of glue.1.Manually regulate or electrically regulate the display device.
6. Lubricated by high temperature lubricate grease.
7. Surface of all dancing rolls and preheating rolls is grinded and chrome-plated.
8. Pressure roll is medium- frequency quenched and chrome-plated.
9. Width:1600mm~2000mm.
10. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.


Hydraulic Mill Roll Stand


Technical Parameters


Base paper diameter:Ø400mm-Ø1500mm

Max. load: 3000kg

Main shaft dia. : Ø 215mm


Hydraulic System Parameters


Working pressure(MPa): 12-16 MPa

Hydraulic cylinder scope(swing): Ø 100mm×460mm

Hydraulic cylinder dia.(clamp):Ø 63mm×720mm


Structure And Features


Symmetrical structure can install two bundles base paper, to change paper with non-stop.

Adopt hydraulic drive, can make the base paper lift, clamp, loosen, move and center.

Head of paper clamping part with mechanical expansion design.

Tension control adopt pneumatic brake, manual control and also can be on-line controlled together with paper receiving part.


Raw Material And Origin


Principal axis of holder and arm lock: high quality seamless steel pipe Origin: Chengdu

Wallboard of two sides:Q235A welded sheets Origin: Handan

Arm lock: HT200 casting Origin: Hebei

Electric elements: CHINT/Schneider

Girder connected box iron: Tangshan


Type 1600mm 1800mm 2000mm
Speed 80-200m/min
Standard flute U,V,E flute
Standard specification A,B,C,E,F
Size 3300*1300*1700mm 3550*1300*1700mm 3800*1300*1700mm
Chrome Plated Corrugated Cardboard Production Line Rated Max Load 3000kg 0
