2300 2 Colors Express Carton Box Printing Die Cutting Machine 160pcs/Min

Basic Information
Place of Origin: China
Brand Name: SOOME
Certification: CE
Model Number: SMYS-2300
Minimum Order Quantity: 1 Set
Price: Contact
Packaging Details: Wooden case or plastic film;1*20'Container
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 20 Sets/Month
Detail Information
Feeder Type: Lead Edge Automatic Wallboard Thickness: 40mm
Min.feeder Paper: 210*400mm Max.feeder Paper: 920*2150mm
Printing Roller Diameter: 288mm Voltage: 380V Or As You Need
Colors: 1-6 Colors Adjusted Phase: Electric Type
High Light:

2300 mm printing die cutting machine

,

2 colors printing die cutting machine

,

express box die cut printer machine


Product Description

2300 2 Colors 160pcs/min Express Carton Box Printing Die Cutting Machine



Function:



1 . Machine by paper feeding, printing, can complete three-layer, five-layer corrugated board printing, and other processes.

2 . Wall panel 40 mm after intermediate frequency tempering internal stress, increased wall panel density, hardness, strength, toughness, and conduction properties, artificial aging treatment, large machining center in pairs processing, high strength, high precision.

3 . The transmission system is all forged by gear transmission 45 and processed by quality adjustment and refined tooth shaving process

4 . Bearing using C&U, Harbin, and other international famous brand bearings, one by one inspection, qualified standards into storage.

5 . Main unit clutch electric with alarm bell, continuous ring warning when clutch, ensure operator safety.

6 . Phase memory.

7 . Main motor frequency conversion start, motor using frequency conversion motor, DELIXI frequency converter. Electrical appliances using Schneider, and other famous brand products.

8 . Pneumatic components: pneumatic components using DELIXI and other famous brand products, diaphragm pump using Wuhan JINCHANGJIANG brand products.

9 . The ink on this machine is uniform, the ink quantity is controllable, prevents the ink overflow, ensures the ink road outside clean, sanitary.



Parameter



No. Item Parameter
1. Design speed 180pcs/min
2. Economy speed 150pcs/min
3. Max.feeder paper size 2100mm×900mm
4. Max.printing size 2000mm×920mm
5. Min.feeder paper size 350mm×200mm
7. Paper thickness 3-10mm
8. Standard plate thickness 7.2mm
9. Accuracy of printing sets ±0.5 mm
10. Slotting accuracy ±1.5 mm

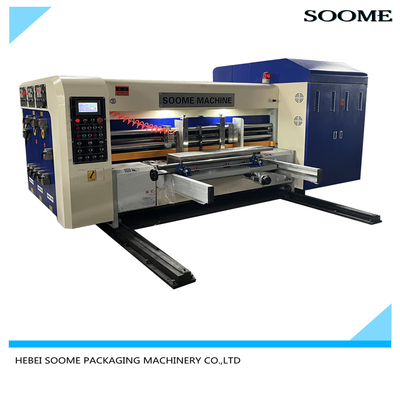

2300 2 Colors Express Carton Box Printing Die Cutting Machine 160pcs/Min 0



2300 2 Colors Express Carton Box Printing Die Cutting Machine 160pcs/Min 12300 2 Colors Express Carton Box Printing Die Cutting Machine 160pcs/Min 2
