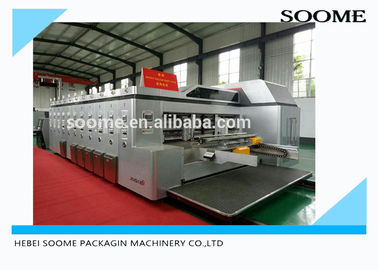

High Definition Flexo Printer Slotter Die Cutter Vuccum Transfer Paper Machine

High Definition Flexo Printer Slotter Die Cutter Vuccum Transfer Paper Machine

Feeder Unit (1 group)

1. Automatic 4 shaft lead edge feeder (China Brand)
2. Light-pressure type lead edge paper feeder can reduce the pressure and damage to cardboard.
3. Suitable to three or five layers corrugated board, including E corrugated board.
4. The size of board on each section, guarantee the ability of vacuum force, make the cardboard more accurate.
5. Leading edge paper feeder mechanism can reduce the blocking phenomenon greatly in the process of cardboard feeding.
6. Normal feeding and Skip feeding.
7. Polyurethane materials, feed wheel friction force is big, long durability.
8. Suction fan auxiliary feeding, to ensure smooth into curved board, air volume can be adjusted according to the size of board on each section, guarantee the ability of vacuum force, make the cardboard more accurate.
9. Electrical adjustment of the baffles left-right moving.
10. Dual rollers for paper feeding (4rolls 2groups), upper feeding rollers made up of solid steel coated by wear-resisting rubber, with hardness of 30 HV.

1. Feeding rubber rollers fast changing structure.
2. With dust removal brush and vacuum cleaner, dual cleaning device assured the paper clean, improved the printing quality, and reduced the edition cleaning times.
3. Walking drive shaft equipped with torque limiter, avoid machine crashing.
4. Frequency converter controls the air volume of suction. And correctly adjusted by sectional knob.
5. Touch screen and buttons can be adjusted by dual system operation.

Printing unit (4 groups)

1. Three colors Flexo Printer group.
2. Top print collar transfer system.

1. The anilox LPI 200 - 250LPI or as per your need.
2. Full format plate groove, suitable to standard version of the article, fast printing plate changing.
3. Assemble and disassemble of the edition, pedal switch of electric control the reversing.
4. Printing roller version transverse move by electric, scope is 15mm.
5. Pneumatic diaphragm pump, stable ink supplying, simple operation and maintenance.
6. Main drive gears with material 20CrMoTi alloy steel, after tempering and high-frequency quenching, gear grinding. Gears thickness 60mm, hardness 60~65.
7. The printing plate inserted into the plate slot is adjustable, which is able to adjust its tightness by lock gear. So that it improves the accuracy of loading.
8. Loading and unloading the printing plate could be controlled by the foot pedal switch.
9. The entire printing plate slot is fit for 3x9mm printing plate hang-up bar.
10. Equipped with Emergency button for loading and unloading the printing plate.
11. The delay function is adopted for feeding system automatically lifting the anilox/ceramics rolls.
12. Planetary gear structure with 360º precisely adjustable for printing register.
13. The printing register and printing reference are computerized with order management.
14. Fix register is pneumatically controlled by brake.
15. Structure. When the units are opening or registering, Brake will active and stop the machine running to keep the print plate position.
16. Ink control system adopted with alarm light and buzzer.
17. Touch screen and buttons can be adjusted by dual system operation.
18. Direct motor for inking anilox and rubber roll.
19. Has foot pedal on each unit for easier phase adjustment and printing plate installation.

NC slotter unit (1 group)

1. Creaser wheel wrapped with high quality polyurethane, cooperate with the pre-creaser wheel, assure the cardboard will not burst.
2. Space between creaser wheel and pre-pressing wheel is adjusted by manual with fast self-locking function, scope 0~11mm.
3. Touch screen and buttons can be adjusted by dual system operation. Can complete slot box is high, the phase, the knife plate, creaser and pre-creaser axial movement, etc.
4. Width of slotter knife is 7.5mm, with alloy steel material, after heat treatment and grinding.
5. Knife plate and creaser both move synchronously by electric, all adopt the ball.
6. Screw and ball screw matched with linear guide shaft, moving more flexible and accurate.
7. Carton height in lengthways and carton length / width in transverse adjustment can be adjusted in touch screen computerized synchronously at the same time and also can be electrical by buttons 2 methods.
8. Gaps between feeding rollers up and down are electrical adjustment.
9. Pneumatic brakes, it will limit the machine drive when the machine is separated, can keep the gears original fixed position.
10. With waste scraps stripper and conveyor.
