|Place of Origin:||Cangzhou, China|
|Minimum Order Quantity:||1set|
|Packaging Details:||Wrapped with film|
|Delivery Time:||50-60days after deposit|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||10sets per month|
|Printing Method:||Flexo Printing||Usage:||For Corrugated Carton Printing Die Cutting|
|Printer Units:||1 / 2 / 3 / 4 / 5 Colors, As Customer Need||Machine Color:||As Customer Need|
|Machine Speed:||120pcs/min||Cardboard Thickness:||2-11mm|
|Printing Plate Thickness:||7.2mm||Slotter Knives Diameter:||700mm|
|Machine Size:||As Customer Need||Voltage:||As Customer Need|
carton flexo printer slotter die cutter,
4color flexo printer slotter die cutter,
4 color printing slotter die cutting machine
Mini printer slotter die cutter machinery for making small carton boxes
I. General introduction
The flexo printing machine has many different configurations and combination. This one is small size machine specially for making mini boxes like pizza box, wine box, express boxes, etc.
Before customer inquire the machine, need offer his maximum and minimum sheet size or box size, then see which kind of flexo suitable. Can make as per customer requirements.
II. Technical parameters
|Max. machine speed||150pcs/min.|
|Economic speed (pcs/min)||120pcs/min.|
|Inner wallboard width (mm)||2000|
|Max. Paper size (mm)||1800x600|
|Printing area (mm)||1700x600|
|Min. Paper size (mm)||450x170|
|Printing roller diameter (mm)||￠210|
|Min. Carton height (mm)||60|
|Max. carton height (mm)||300|
|Slotting size (mm)||Positive||80x80x80x80|
|Max. die cutting size (mm)||1700x500|
III. Printer unit (2 groups)

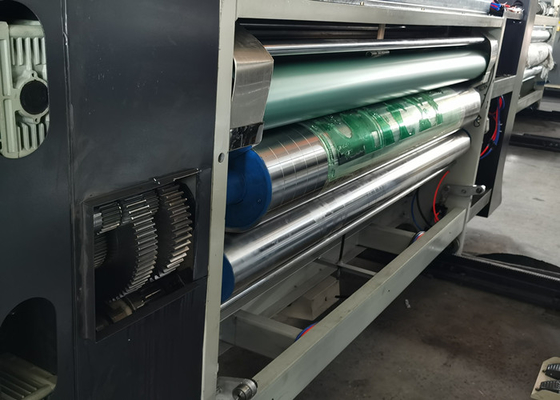

1. Printing roller
1)Outer diameter: Ø210mm,seamless steel pipe, with surface grinding, hard chrome plating.
2)Printing roller made of high quality steel, with surface grinding and hard chrome plating.
3)Dynamic balancing correction, stable operation.
4)Ratchet wheel fixed rolled shaft.
5) Install & uninstall printing edition controlled by electric.
2. Printing pressing roller
1) Seamless steel pipe, with surface grinding, hard chrome plating.
2) Dynamic balancing correction, stable operation.
3) Automatic locking on adjustment of pressing roller space, adjust scope is 0-11mm.
4) Automatic return to zero device, decrease the paper waste.
3. Anilox roller
1)With surface grinding on the steel pipe, pressing checkered, chrome plating.
2)Dynamic balancing correction, stable operation.
3)Cooperated with pneumatic lifting device.
4) Matched with surpass clutch, distribute and clean the ink more easily.
IV. Slotter unit (1group)
1. Sizes adjustment
1) Slotter knives adjustment has two ways: one can input sizes into the touch screen, press start to change in lengthways and left right at the same time. Another can adjust by electrical buttons to move one by one.
2) Carton height, carton length and width are all electrical adjustment.
