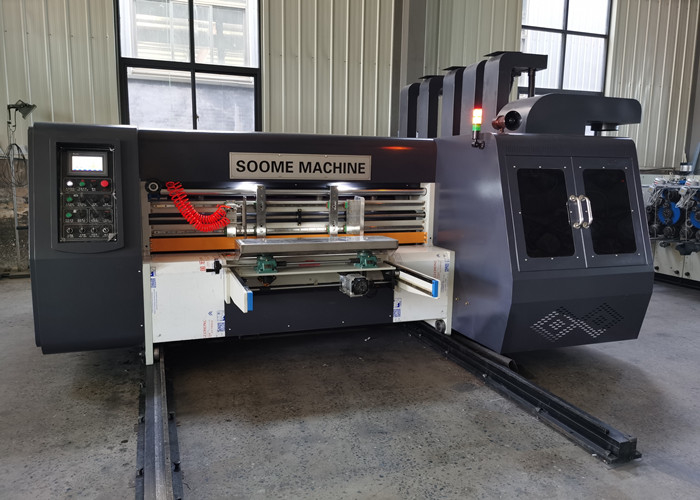

5 Color Flexo Printing Slotting Die Cutting Machine Small Pizza Box Packaging
| Place of Origin | Cangzhou, China |
|---|---|
| Brand Name | SOOME |
| Certification | CE |
| Model Number | 2000x3400 |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | Wrapped with film |
| Delivery Time | 50-60days after deposit |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 10sets per month |
Product Details
| Printing Method | Flexo Printing | Usage | For Corrugated Carton Printing Die Cutting |
|---|---|---|---|
| Printer Units | 1 / 2 / 3 / 4 / 5 Colors, As Customer Need | Machine Color | As Customer Need |
| Machine Speed | 120pcs/min | Cardboard Thickness | 2-11mm |
| Printing Plate Thickness | 7.2mm | Slotter Knives Diameter | 700mm |
| Machine Size | As Customer Need | Voltage | As Customer Need |
| High Light | 5color flexo printing slotting die cutting machine,cartons flexo printing slotting die cutting machine,5 color printer slotter die cutter |
||
Product Description
Small box printing slotting diecutting machine, pizza box packaging machinery
I. General introduction
This is a kind of flexo printing machine for corrugated cardborad printing slotting diecutting machine. These are the front procedures of colorful cartons forming.
The flexo printing machine has many different configurations and combination. This one is small size machine specially for making mini boxes like pizza box, wine box, express boxes, etc.
Before customer inquire the machine, need offer his maximum and minimum sheet size or box size, then see which kind of flexo suitable. Can make as per customer requirements.
II. Technical parameters
|
Specs. |
Unit |
Model 300x2300
|
|
Inner wallboard width |
mm | 2300 |
|
Max. Paper size |
900x2000 | |
|
Max. Diecutting area |
mm | 900x1900 |
|
Max. Paper size (skip feeding) |
mm | 900x2000 |
|
Max. Printing area |
mm | 900×1900 |
|
Min. Paper size |
mm |
230x450 |
|
Thickness of printing plate |
mm | 7.2 |
|
Design speed |
sheets/min | 150 |
|
Economic speed |
sheets/min | 120 |
|
Main motor power |
KW | 45 |
|
Total power |
KW | 47 |
|
Overdye precision |
mm | ±0.75 |
|
Slotting/diecutting precision |
mm | ±1.5 |
III. Printer unit(2 groups)
1. Printing roller
1)Outer diameter: Ø288mm,seamless steel pipe, with surface grinding, hard chrome plating.
2)Printing roller made of high quality steel, with surface grinding and hard chrome plating.
3)Dynamic balancing correction, stable operation.
4)Ratchet wheel fixed rolled shaft.
5) Install & uninstall printing edition controlled by electric.
2. Printing pressing roller
1) Seamless steel pipe, with surface grinding, hard chrome plating.
2) Dynamic balancing correction, stable operation.
3) Automatic locking on adjustment of pressing roller space, adjust scope is 0-11mm.
4) Automatic return to zero device, decrease the paper waste.
3. Anilox roller
1)With surface grinding on the steel pipe, pressing checkered, chrome plating.
2)Dynamic balancing correction, stable operation.
3)Cooperated with pneumatic lifting device.
4) Matched with surpass clutch, distribute and clean the ink more easily.
