1624 Type CE Flexo Printer Slotter Die Cutter Machine For Carton Box

Basic Information
Place of Origin: Hebei province China
Brand Name: SOOME
Certification: CE
Model Number: 1624 Type
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: wooden case packaging or wrapping with plastic film
Delivery Time: 40 days after deposit
Payment Terms: T/T, , L/C
Supply Ability: 100 per/mounth
Detail Information
Max Machine Design Speed: 150 Pieces/min Max Feeding Size (L * W): 1600mmx2400mm
Max Die Cutting Size: 1600*2400mm Min Die Cutting Size: 450mmx750mm
Condition: New Warranty: 1 Year
Machine Weight: 6800 KG Voltage: 220V/380V/440V
High Light:

ce flexo printer slotter die cutter

,

1624mm flexo printer slotter die cutter

,

1624mm printing slotting die cutting machine


Product Description

1624 Type Flexo Printer Slotter Die Cutter Machine For Carton Box



Machine introduction:



1. Flexo printer slotter die cutter machine for carton box adopt the automatic lead edge paper feeding system, higher precision in feeding,higher speed,longer feeding lifetime can reach 10000pcs/h, precision is ±0.5mm.
2. Flexo printer slotter die cutter machine is adjustable to satisfy the paper feeding air volume.The front baffle is manual adjusted, the side baffles are electrical adjusted.
3. Flexo printer slotter die cutter machine has the rubber groove on the paper guiding rollers, avoid the damage of paper, increased the accuracy of feeding.
5. The electrical adjustment of back baffle has the digital facility function, adjust exactly and conveniently.
6. Flexo printer slotter die cutter machine roller is made from high quality steel,balancing correction and hard chrome plating,the
7. Die Cutter Machine die roller thickness is 30mm.The wallboard is made from quality cast iron in large processing center production, thickness is 50mm.The automatic grinding mechanism of soft rollers improve the usage of glue sheath and can grind 3 or 4 times. adopt Germany Depair anvil blanket, can die cut 10 million times. Mechanical left or right movement of soft rollers about 40mm, can make the abrasion of blanket average.



Technical parameters:



Model

1600*2400mm type

Max machine design speed

150 pcs/min

Max machine working speed 120 pcs/min

Max feeding size (L * W)

1600mmx2400mm

Min feeding size (L * W)

450mmx750mm

Die cutting size 450*750mm

















Main structure and features:



1.  Flexo printer slotter die cutter machine the paper feeding shafts adopt rubbure roller with knurling, the pressure adjustment adopt eccentric wheels adjustment, left-right eccentric wheels pressure can be adjusted synchronously.

2. The sheet pushing plate adopt left right two sides baffles and back guard to fix the sheets, can avoid the above sheet moving malpostion when feeding the bottom sheet which will bring the wrong slotting. The baffles can fix different quality sheets, make sure the machine can feed in more steadily.

3. Flexo printer slotter die cutter machine adopt electrical planetary gear phase adjustment to adjust the sheets size, can adjust directly without machine stop.

4. The rotary diecutter can die cut different shape cartons.

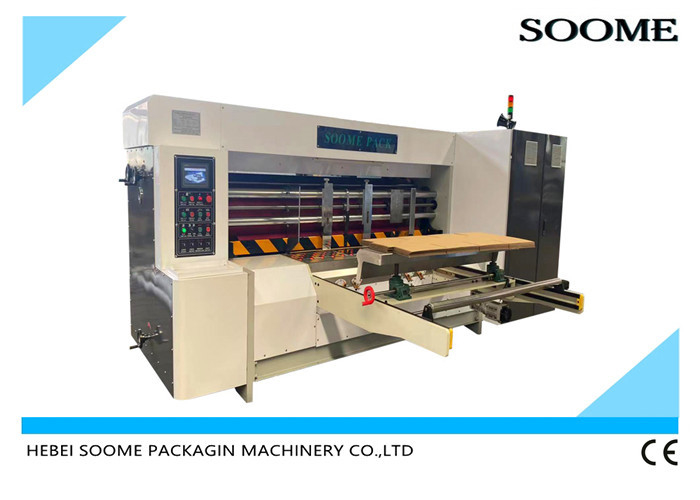

1624 Type CE Flexo Printer Slotter Die Cutter Machine For Carton Box 0

























































1624 Type CE Flexo Printer Slotter Die Cutter Machine For Carton Box 1
