300x2300mm Printing Slotting Die Cutting Machine Small For Mini Box

Basic Information
Place of Origin: Cangzhou, China
Brand Name: SOOME
Certification: CE
Model Number: 2000x3400
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wrapped with film
Delivery Time: 30-60days after deposit
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10sets per month
Detail Information
Printing Method: Flexo Printing Usage: For Corrugated Carton Printing Die Cutting
Printer Units: 1 / 2 / 3 / 4 / 5 Colors, As Customer Need Machine Color: As Customer Need
Machine Speed: 120pcs/min Cardboard Thickness: 2-11mm
Printing Plate Thickness: 7.2mm Slotter Knives Diameter: 700mm
Machine Size: As Customer Need Voltage: As Customer Need
High Light:

300x2300mm printing slotting die cutting machine

,

small printing slotting die cutting machine

,

mini box flexo printer slotter machine


Product Description

300x2300mm Small flexo printer slotter diecutter for mini box



I. General introduction



This is a kind of flexo printing machine for corrugated cardborad printing slotting diecutting and stacking. These are the front procedures of colorful cartons forming.



First, this machine use waterbase ink to print different patterns and words on the sheets as per customer's requirements. Second, offer special oil to cover the sheets surface. Third, dry the sheets via UV ray to let the boards drying. Forth, slotter part cut the slot on board and crease lines for folding. Fifth, cut out different shapes or holes or hand holes on the board as per customer need. The last step of this machine is to stacking the boards together into piles for easy delivery and packing.



II. Complete performance



1. Computerized can store the common orders, fast order changing, easy to operate.

2. All the driving roller are high quality steel, hard chrome plating, surface grinding.

3. The wallboard is 60mm thick wrought iron, after deal with the internal stress then processed with CNC machining center.

4. Painting technology: the parts will be treated with the procedure derusting-phosphating-paint spraying-stoving varnish to make the painting with rust proof,hard surface, and durable.

5. The complete machine with alarm bell, will be always warning in the walking time, can keep the worker safe.

6. Each unit equipped with emergency switch inside, can stop each unit moving inside to assure the inner operator safe.

7. Spraying lubrication with dual oil pump automatic circulatory system, oil level balancer to keep the oil level balance.



All the draught fans for main motor, feeder, printer, glazer, drier units adopt frequency converter to control the air volume, adjust more exactly, make sure the feeding smoothly, can save more electricity and cost.



III. Technical parameters



Specs.

Unit



Model 300x2300





Inner wallboard width

mm 2300



Max. Paper size

  900x2000



Max. Diecutting area

mm 900x1900



Max. Paper size (skip feeding)

mm 900x2000



Max. Printing area

mm 900×1900



Min. Paper size

mm

230x450



Thickness of printing plate

mm 7.2



Design speed

sheets/min 150



Economic speed

sheets/min 120



Main motor power

KW 45



Total power

KW 47



Overdye precision

mm ±0.75



Slotting/diecutting precision

mm ±1.5



IV. Slotting unit



1. Single shaft with dual cutter. Electric adjust the carton height with high precision.



1)Creaser and pre-creaser,above crease wrapped with optimal rubber will not damage the paper. Creaser shaft and lower knife shaft are more thicker and heavier.

2) Creaser, pre-creaser, cutter holder move together by NC controller. All electrical and computerized adjustment.

3) Spacing adjustment of creaser and pre-creaser adopt self-locking mechanism, scope is 0-11mm.

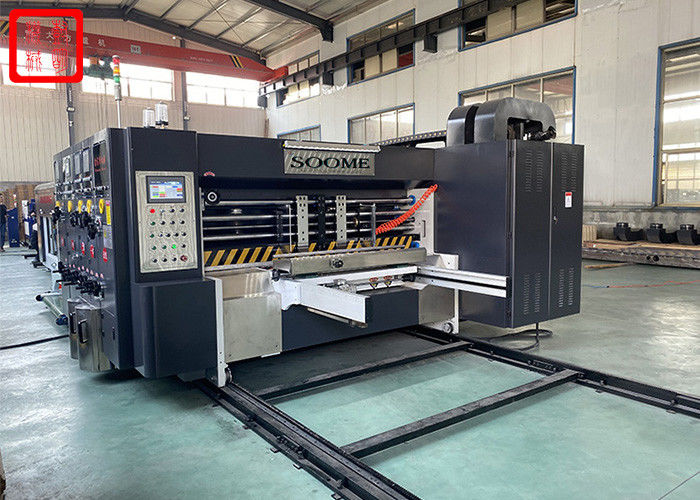

300x2300mm Printing Slotting Die Cutting Machine Small For Mini Box 0
