1224 Corrugated Carton Box 4 Color Printer Slotter Die Cutter

China HEBEI SOOME PACKAGING MACHINERY CO.,LTD certification
China HEBEI SOOME PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

1224 Corrugated Carton Box 4 Color Printer Slotter Die Cutter

large.img.alt
large.img.alt
video play

Large Image :  1224 Corrugated Carton Box 4 Color Printer Slotter Die Cutter

Product Details:
Place of Origin: Made In China Hebei
Brand Name: SOOME
Certification: CE
Model Number: SMYS
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Contact
Packaging Details: Wooden case or plastic film;3*40' Container
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Supply Ability: 10 Pcs/month
Detailed Product Description
Design Speed: 260 Pcs/min Color: 2 4 6 8 Colors
Use: Making Corrugated Cardboard Feature: High Efficiency And Energy Saving
Printing Plate Thickness: 7.2mm Paper Thickness: 2-11mm
Max.feeding Size: 1200*2400mm Min.feeding Size: 300*600mm
High Light:

corrugated 4 color printer slotter die cutter

,

flexo 4 color printer slotter die cutter

,

4 color printing slotter die cutting machine



4 Colors 1224 Flexo Printer Slotter Die Cutter Machine For Corrugated Carton Box



Whole machine character



1 . It adopts the computer to control the storage order with changing the lists quick and

convenient

2 . All of the transmission gears and rollers adopt good quality steel with heat treatment and

grinding.

3 . All of the units marches with alarm ringing , each unit sets a sudden stop switch to ensure

the safety of the operator.

4 . The balance device of the engine oil

5 . All drive rollers are high quality steel, hard chrome plated, surface grinding

6 . The wall plate is high quality steel, which is processed by CNC machining center after stress removal

7 . Paint spraying process: before painting, parts through the de-rusting - phosphating - spray - paint - baking paint, so that the paint rust, hard surface, paint more durable

8 . All of the units marches with alarm ringing , each unit sets a sudden stop switch to ensure

the safety of the operator.

9 . Machine with large screen display table, display the machine printing speed (by pcs/hour), convenient for operating personnel in different directions machine is easy to see the running speed of the machine.

10 . Lubricating oil automatic balancing device to keep all units of lubricating oil on the same horizontal line

11 . The computer control system can store up to 999 orders.

12 . Automatic zero function



Technical parameters:



NO. Parameter name Unit model
1 Design speed Piece/min 260
2 The maximum size feeding paper mm 1200x2400
3 The minimum size feeding paper mm 300x600
4 The maximum size of feeding paper by partition mm 1500x2400
5 The maximum size of printing area mm 1200x2360
6 Printing precision mm ±0.5
7 Standard plate thickness mm 7.2
8 Printing paperboard thickness range mm 2-11
9 Printing roller adjustment degree 360°
10 Printing roller lateral adjustment mm ±10
11 Slotting precision mm ±1
12 Minimum slotting distance(opposite direction) mm 230x65x230x65
13 Maximum slotting depth mm 300



































Part list:



No Name Brand
1 Roller HEBEI
2 Anilox roller HAILI from Jiangsu
3 Bearing of cylinder and roller NSK
4 Other bearing Domestic
5 Elect parts Schneider
6 PLC Omron
7 Encoder Automics Korea/SICK GERMAN
8 Touching screen MCGS
9 Ink pump(single direction) CHANGJINA From Wuhan
10 Die-cutter pad MAXDURA Taiwan
11 converter DELTA
12 Solenoid valve AIRTAC
13 Air blower Ouguan blower
14 Glue machine servo motor LESHENGHE
15 Glue machine motor TECO Qingdao
The air source provide by the customer

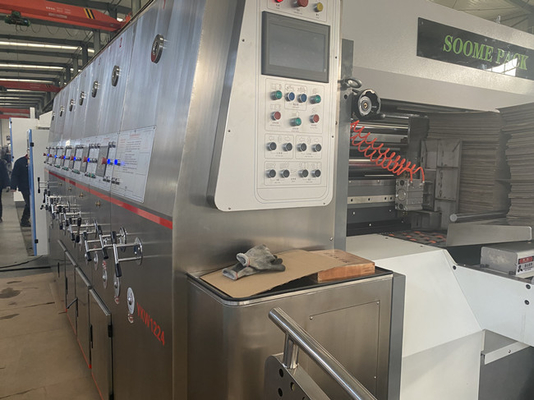

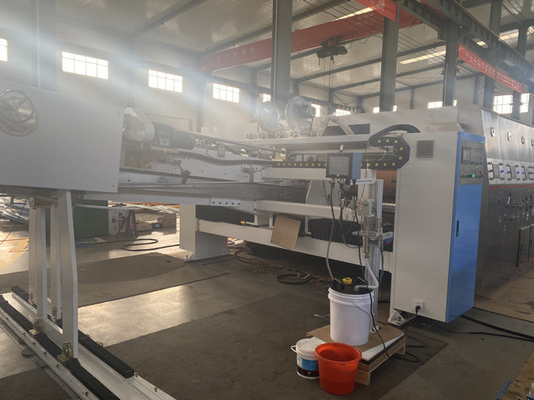

1224 Corrugated Carton Box 4 Color Printer Slotter Die Cutter 01224 Corrugated Carton Box 4 Color Printer Slotter Die Cutter 11224 Corrugated Carton Box 4 Color Printer Slotter Die Cutter 2
