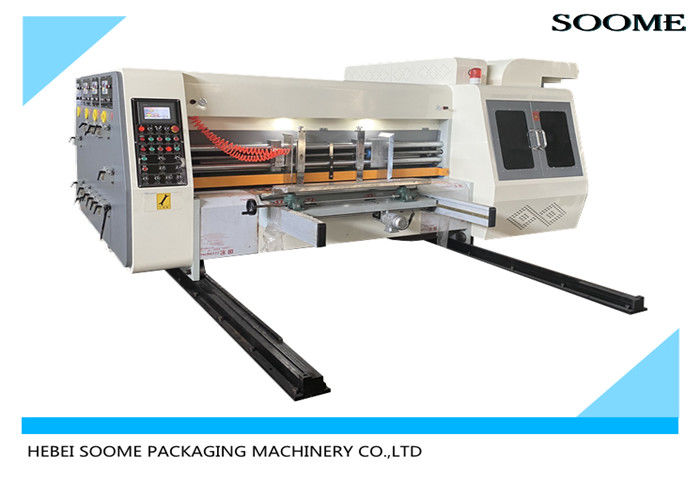

1 Color 180pcs/Min Automatic Flexo Printer Slotter Die Cutter For Small Carton Box
| Place of Origin | Made in China |
|---|---|
| Brand Name | SOOME |
| Certification | CE |
| Model Number | SMYS-920 |
| Minimum Order Quantity | 1 Set |
| Price | Contact |
| Packaging Details | Wooden case or plastic film,1*20' Container |
| Delivery Time | 45 Days |
| Payment Terms | T/T |
| Supply Ability | 10 Sets/month |
Product Details
| Economic Speed | 180pcs/min | Max. Feeding Size | 900x2100mm |
|---|---|---|---|
| Min. Feeding Size | 350*200mm | Max. Printing Size | 920x2100mm |
| Paper Thickness | 3-10mm | Standard Plate Thickness | 7.2mm |
| Color | 1-6 Colors | Usage | Printing Small Carton Box |
| High Light | 180pcs/min flexo printer slotter die cutter,automatic flexo printer slotter die cutter,1 color printer slotter die cutter |
||
Product Description
1 color 180pcs/Min Automatic Flexo Printer Die Cutter For Small Carton Box
Carton printing machine is a printing equipment that can print the required text, pattern and other information onto the surface of the carton body. It generally includes plate loading, ink coating, imprint, paper feeding and other processes. Carton printing generally has single printing, printing with grooving/die-cutting, printing with grooving/die-cutting, sticking boxes and linkage production lines, etc.
Main technical parameters
| No. | Item | Parameter |
| 1. | Design speed | 180pcs/min |
| 2. | Economy speed | 160pcs/min |
| 3. | Max.feeder paper size | 2100mm×900mm |
| 4. | Max.printing size | 2000mm×920mm |
| 5. | Min.feeder paper size | 350mm×200mm |
| 6. | Paper thickness | 3-10mm |
| 7. | Standard plate thickness | 7.2mm |
| 8. | Accuracy of printing sets | ±0.5 mm |
| 9. | Slotting accuracy | ±1.5 mm |
Function
1 . Machine by paper feeding, printing, can complete three-layer, five-layer corrugated board printing, and other processes.
2. Wall panel 40 mm after intermediate frequency tempering internal stress, increased wall panel density, hardness, strength, toughness, and conduction properties, artificial aging treatment, large machining center in pairs processing, high strength, high precision.
3 . The transmission system is all forged by gear transmission 45 and processed by quality adjustment and refined tooth shaving process
4 . Bearing using C&U, Harbin, and other international famous brand bearings, one by one inspection, qualified standards into storage.
5 . Main unit clutch electric with alarm bell, continuous ring warning when clutch, ensure operator safety.
6 . Phase memory.
7 . Main motor frequency conversion start, motor using frequency conversion motor, DELIXI frequency converter. Electrical appliances using Schneider, and other famous brand products.
8 . Pneumatic components: pneumatic components using DELIXI and other famous brand products, diaphragm pump using Wuhan JINCHANGJIANG brand products.
9 . The ink on this machine is uniform, the ink quantity is controllable, prevents the ink overflow, ensures the ink road outside clean, sanitary.
