700gsm Corrugated Cardboard Folding Gluing Machine Full Auto Bottom Lock

Basic Information
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: SMQA-HGJ-1200
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case or film
Delivery Time: 14 days after deposit
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 25 sets/month
Detail Information
Type: Automatic Bottom Lock Fold Glue Machine Condition: New
Brand Name: SOOME Color: Customized
Driven Type: Electric And Pneumatic Place Of Origin: Hebei, China
High Light:

700gsm corrugated folding gluing machine

,

700gsm cardboard folding gluing machine

,

corrugated box folder gluer machine


Product Description

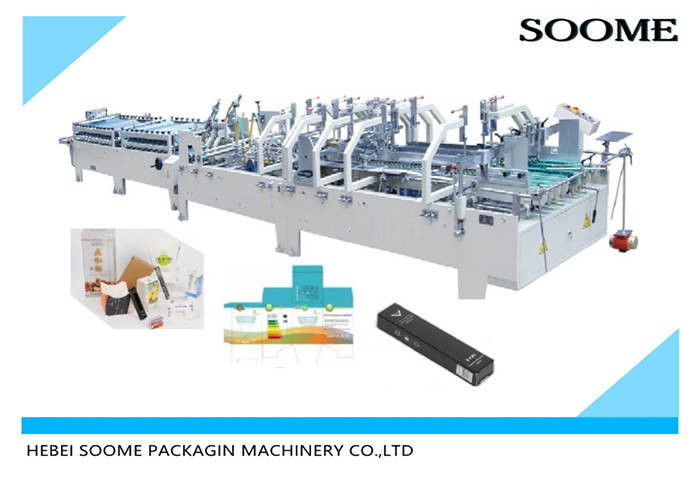

700gsm Corrugated Cardboard Full-Auto Bottom Lock Folding Gluing Machine

1. Summarize



SMQA-HGJ-1200 Full-auto Bottom Lock Folding Gluing Machine is specially designed for large straight line box, large pre-fold box and large crash lock bottom box. Its feeding width can be up to 1000mm. Larger sized folding section will increase the folding and gluing accuracy, and thus decrease the trumpet mouth box forming on the older generation model. Upper belt can be adjusted separately, and thus for E corrugated box, the trumpet mouth box forming phenomena will also be decreased. Its motor can be separately independently and makes the collecting effect better. It is ideal equipment for large box packing factories.



2. Features and Functions



1). The partial paper feeding adopt the monomer structure,it is extremely convenient to movethe assemble and disassemble.
2). Adopt the integral sealde glue box,so as to make glue not easyto evaporate,move conveniently.
3). The move row adopts the two-way screw rod to adjust,fast and simple.
4). The transmission adopts the synchronous belt and mast top,accurate,ensure to paste box perfect quality.
5). Pre-folded function can develop the production efficiency,forma complete set with the automation packing.
6). The press and delivery part can move front and back,so as to provide the convenience to wine box and long box.
7). The photoelectricity countand automatic kick board are assort ,accurate and convenience.



3. Technical Parameters



Line speed: 0~280m/min continuous tunable
Application of paper: 210~700g/m2 paperboard
Paste box basic form: Either side folds, either sides pre-fold, and crash lock bottom
Paper feeding: Auto continuous feeding
Reverse mode: 1st, 2nd and 4th line can do fold 180°, 3rd line 135°
Use adhesive: Cold glue
Power required: 6Kw, AC380V
Weight: 3000kg
Outer size: 10500×1300×1300mm
Counting range: 0~999999 (automatic counting)

700gsm Corrugated Cardboard Folding Gluing Machine Full Auto Bottom Lock 0

700gsm Corrugated Cardboard Folding Gluing Machine Full Auto Bottom Lock 1

700gsm Corrugated Cardboard Folding Gluing Machine Full Auto Bottom Lock 2
