3 5 7 Ply Carton Folder Gluer Machine Corrugated Box Semi Auto

Place of Origin Hebei Province China
Brand Name SOOME
Certification CE Certification
Model Number SMZX-BZD-2800
Minimum Order Quantity 1 set
Price negotiation
Packaging Details wooden case and filling with plastic film
Delivery Time 24 after depoist
Payment Terms L/C, T/T, Western Union
Supply Ability 100 per/mounth
Product Details
Speed 60m/min Feeding Way Semiautomatic
Warranty 1 Year Weight 2150 Kg
Condition New Packaging Type Cartons,Case,Film
Max. Size (L+W) X 2 2800mm Driven Type Electric
After-sales Service Provided Online Support Machine Size 3800*1900*1700 Mm
High Light

7 ply carton folder gluer machine

,

automatically count carton folder gluer machine

,

3ply semi automatic folder gluer machine

Leave a Message
Product Description

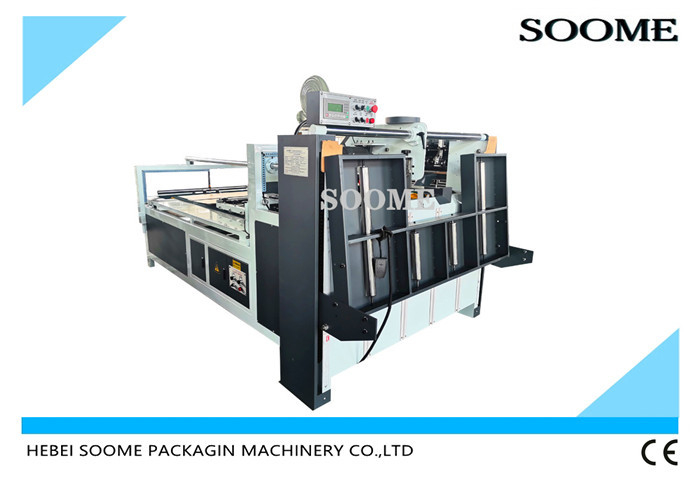

SM-2800 Type Semi-Auto Folder Gluing Machine Used For Corrugated Carton

Main Structure:


The semi-automatic glue box machine is a new type of environmental protection equipment for carton production in recent years. It is mainly used for carton bonding and abandoning the traditional copper nail binding method, which improves production efficiency and good product quality. Main frame structure: frame, lifting workbench, front section conveying device, front section correction device, middle section conveying device, middle section pressing device, finished side output device.



Technical parameters:



SMZX-BZD-2800
Max. Size (L+W) x 2 2600mm/2800mm
Min. Size (L+W) x 2 340mm
Max. Size (W+H) x 2 1515mm
Min. Size (W+H) x 2 260mm
Feeding pile height 1000mm
Motor power 4kw
Machine length 5300mm
Machine weight 2150kg
Machine speed 0-75 m/min



Use and Caracteristics:


1. Simple and reliable operating system.
2. Novel and smooth overall design.
3. Fast size conversion.
4. Can automatically count, package settings.
5. The width of the carton plus the minimum can be about 240mm.
