SPHX-2200B Two Piece 2000pcs/H Folder Gluer Corrugated Carton Making Machine

Place of Origin China
Brand Name SOOME
Certification CE
Model Number SPHX-2200B
Minimum Order Quantity 1 set
Price negotiation
Packaging Details wooden case with plastic film
Delivery Time 24 days after depoist
Payment Terms L/C, T/T, Western Union
Supply Ability 20 set per/mounth

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage 380V/400V/415V Or Others Machine Power 4.5/6/8KW
Condition New Driven Type Electric
Warranty 1 Year Max Feeding Size(mm) 1100*1100mm
Min Paper Feed Size(mm) 450*320 Machine Speed 0-2000pcs/h
High Light

2000pcs/h corrugated folder gluer machine


servo motor carton folder gluer machine


two piece corrugated folder gluer machine

Leave a Message
Product Description

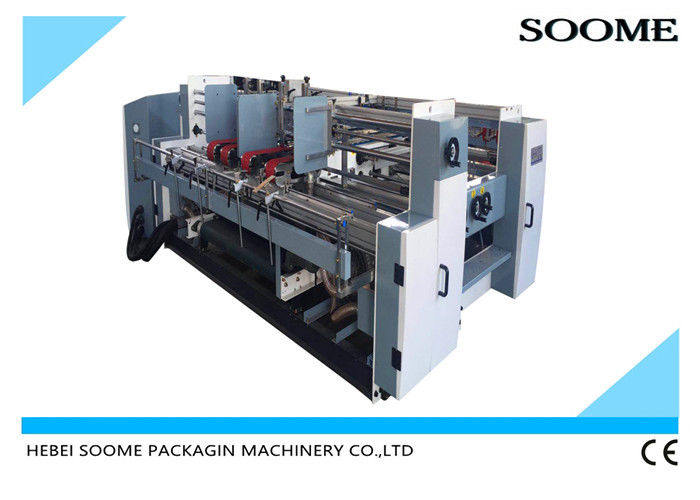

SPHX-2200B Two Piece Folder Gluer Corrugated Carton Making Machine Factory


The paper feeding system is equipped with strength suction paper feeding , can transport single , double pieces paperboard . In the double feed mode , the lift and right of paper feed wheels have independent servo driving device to cooperate with the action of bonding part , no matter whether he cardboard on the left and right sides reaches the paper feeding wheel on the other side of the paper feeding part to stop the paper feeding.

When the adhesive department is making double sheets carton box molding , two sheets can be coated with glue(middle hot melt glue ) .

Three parts pneumatic positioning , the upper pneumatic pressing , the two pieces is adhesive into one , adhesive is firm . The pressure paperboard department is the final molding structure . After the gluing into one piece , it can be folded into shape by manually . Meanwhile pressing the lines for the carton box , and the tile line of the cross problems to be corrected manually, into the bottom of the machine from the surface of the pressing belt to complete the final molding.


Equipment introduction:


1. The machine wall panel adopts 45# original flat 12mm high hardness steel plate and is processed by CNC surface grinder to ensure the precision of the work-piece; the main structure is connected by 140# I-beam, and the rest is connected by aluminum profile, thus ensuring the machine Stability; the sprocket is made of 45# material and then quenched by high frequency to extend its service life

2. The main motor power is 2.2KW, the pressing motor power is 550W, controlled by the inverter, and can be adjusted at will; the clamping is 2 sets of 1KW servo motor, the clamping length and speed can be adjusted arbitrarily, making the cardboard intermediate counterpart more accurate

3. The intermediate drive system is driven by a 2.2KW Mitsubishi geared motor, and there is also an electromagnetic clutch and electromagnetic brake as a backup drive


Main spare parts:


Main spare parts list
Name Specification Quantity Origin / brand
Main motor 0.75 kw 1set Huisheng
Pressing motor 0.4 kw 1 set Huisheng
Adhesive motor 120w 250 w 1 set Oute chuangdong
Air motor 2,2kw 2 sets Shanghai
Bearing     Wanxiang Zhangjiakou
Linear optical axis     Shun yang Tianjin
Belt     Xibeike Xiamen


Main Components Brand:


Canzghou zhaoli Semi automatic pasting box machine configuration list
Spare parts name Brand Certification standard
PLC Omron , Japan CE/UL
PLC expansion module Omron , Japan CE/UL
Touch screen WEINVIEW Tiawan CE/UL
Photoelectric switch Omron , Japan CE/UL
Proximity switch Omron , Japan CE/UL
Contactor SHIHLIN Taiwan CE/UL
Breaker SHIHLIN Taiwan CCC/CE/U
Servo INVT China CE/UL
Transducer Japan CE/UL
Terminal strip Chint China CCC
Temperature controller China Brand CCC
Intermediate relay Schneider France CCC
Pressure spring thermocouple China Brand CCC
Button switch Schneider France CCC
Switch power supply MEANWELL Taiwan CCC


Functional features:


Front Feeding Part

1. Set two cardboard stacking parts to store two sheets of AB cardboard, which is beneficial to improve production efficiency;The following suction structure, two 3.0KW horizontal vortex suction pumps, greatly enhance the strength of suction, which is beneficial to Improve conveying accuracy and stability

Middle Part of the Paper Feeding

2. The butt joint is fixed and bonded by cold and heat. The hot melt adhesive plays a role in shaping,the cold glue acts as a bonding. It can be said to be double-bonded, which eliminates the opening of a single hot melt adhesive due to seasonal changes,the phenomenon that the glue and the food box burst into the cold storage hot melt adhesive; the four sides of the cardboard block are positioned, the positioning is accurate, and the precision is high

Rear Folding Part

3. Adopting manual folding, effectively solves the problem that the die-cutting indentation and corrugation position are not well determined, and the carton stick size is effectively controlled

4. This machine can be operated by two people:The first person is responsible for loading the paper and packing the sticky cardboard boxes.In the latter stage, one person is responsible for folding the cardboard into the press belt, which is easy to operate and easy to use.
