Auto PLC Flexo Printing Machine For Corrugated Carton Packing

Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMYS-GZ-2800
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details wooden case or film.
Delivery Time 14 days after deposit
Payment Terms L/C, T/T, MoneyGram
Supply Ability 16 sets per month
Product Details
Product Name Lead Edge Feeder Flexo Printer Slotter Die Cutter Driven Type Computer Adjustment
Type Flexo Printer Slotter Die Cutter Function For Printing Slotting Die Cutting
Keywords Flexo Printing Machine Voltage 220V/380V/440V
Automatic Grade Automatic
High Light

flexo printing machine for corrugated carton


corrugated carton flexo printing machine


PLC flexo printing machine

Leave a Message
Product Description

High Performance For Corrugated Carton Packing Auto Flexo Printing Machine

1. Summarize


This auto flexo printing machine adopts manual sheets supplying, vacuum suction type automatic lead edge feeding. It could finish corrugated paperboard printing, slotting, corner cutting, edge slitting, creasing, and other functions at the same time. Electrical carton height adjustment, equipped with ruler for easy size checking. The phase of slotting adjustment device is planetary gears design, adopting electrical adjustment in 360 degree. Above slotting knives and down knife holders and creasers can move left-right synchronously manually by professional tools. It is easy and convenient in using and maintenance, small and delicate, specially for small cartons printing slotting and forming.


2. Features and Functions


1)Multiple function control with touch screen and PLC, reliable system, low failure rate, simple operation.

2)This machine with the function of automatic zero, auto version adjustment, memory recovery, paper skip feeding, auto lifting & falling edition, etc.

3)Machine clutch controlled by electric, set with alarm bell.

4)Pneumatic interlocking device.


5) Leading edge paper feeder mechanism can reduce the blocking phenomenon greatly in the process of cardboard feeding.

6) Main motor is controlled by variable frequency converter, power saving, low noise.

7) Suction fan auxiliary feeding, to ensure smooth into curved board, air volume can be adjusted according to the size of board on each section, guarantee the ability of vacuum force, make the cardboard more accurate.

8) After stop using manual adjustment, baffle, baffle around electric clearance adjustment.

9) Polyurethane materials, feed wheel friction force is big, long durability.

10) Suitable to three or five layers corrugated board, including E corrugated board.

11) Matched with dust cleaning brush, above suction dedusting fan, assured the paper clean, improved the printing quality, reduced the edition cleaning times.


12) Printing phase adopt NC control 360°adjustment(running & stop both adjustable).

13) Transverse phase adopt NC controller, control scope is 15mm.

14) Printing roller adopt NC phase adjustment, auto zero, high precision on edition adjustment.

15) Printing roller adopt frequency converter phase adjustment, return to zero and edition adjustment fast, precise.

16) Automatic restoration system after the printing edition cleaning.

17) Vapour-pressure type diaphragm pump with stable ink supply and easy maintenance.

18) Ink filter screen, impurity filtration.


19) Computerized die cutter unit can control the sizes in touch screen.

20) Equip with the waste scraps output conveyor.

21) Axial direction auto circulation translation.

22) Equipped with linear compensation device, with average diecutting of rubber mat.

23) Rubber roller, diecutting roller: Computer dynamic balancing correction, surface grinding, hard chrome plating.

24) With pneumatic lifting device, protect the rubber mat.


3. Technical Parameters


Max sheet size(mm) 1800/2000*800 1800/2200*1000 2500*1200/1400/1600 2800*1200/1400/1600
Max speed(pcs/min) 250 200 160/150/120 150/140/120
Min sheet size(mm) 650*270 650*270 650*330/350/400 650*330/350/400
Cardboard thickness 2-10 2-10 2-12 2-12
Print plate depth(mm)
Max die cutter area(mm) 1700/1900*750 1700/2100*930 2400*1150/1310/1550 2700*1150/1310/1550

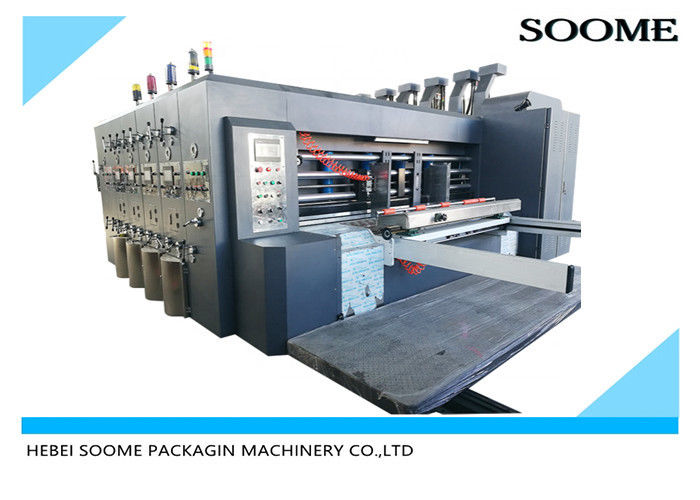

Auto PLC Flexo Printing Machine For Corrugated Carton Packing 0
