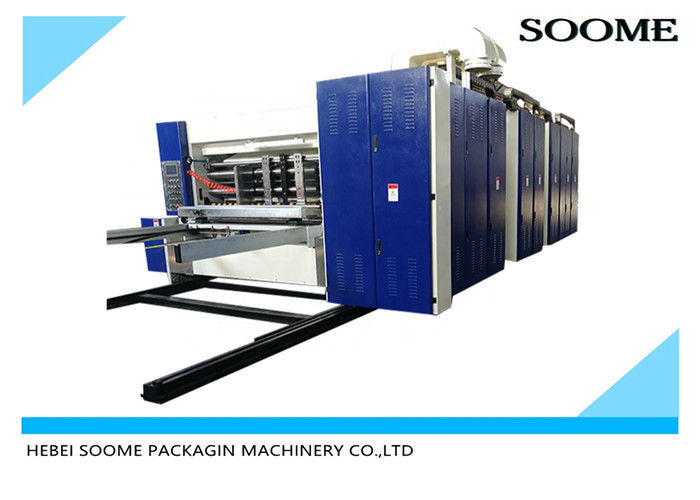

180pcs/Min Corrugated Board 4 Colour Flexo Printing Machine
Application | Printing And Processing Corrugated Paperboard | Product Name | Automatic Feeding Printing Machine |
---|---|---|---|
Plate Type | Flexo Plate | Color | Customer's Request |
Condition | New | Voltage | 220V/380V/440V |
High Light | 180pcs/min 4 colour flexo printing machine,corrugated 4 colour flexo printing machine,corrugated 4 color flexo printing machine |
180pcs / Min High Quality Corrugated Board 4 Colors Flexo Printing Machine
1.Summarize
1. Auto 4 colors printer NC slotter rotary diecutter vibrator stacker
2. Design speed: 180pcs/min. Economic speed: 150pcs/min.
3. Wallboard inner width: 2800mm. Wallboard thickness: 60mm. Printing roller diameter: 600mm. Max. sheet size:1800x3000mm. Min. sheet size: 600x700mm.
4. Feeder unit: Computerized control, can store order, with display can see working condition of stacker.
5. Printer unit: Haili metal anilox roller + rubber roller, with fast printing plate changing device-hanging groove.
6. Slotter unit: all computerized control of sizes adjustment synchronously.
7. Vibrator: with blower and side output conveyor, electrical moving on rails.
8. Gears material: 20CrMoTi.
9. Electrics brand: Siemens buttons / Delta / CHINT. Thermal overload.
2. Features and Characteristics
1. Corrugated board 4 colors flexo printing machine adopts auto computerized machine, it is of easy operation.
2. Color touch screen design, save 999 groups orders. Intelligent order's input, inquiry, delete and zero-clearing.The automatic / manual adjustment of phase, management of the parameters, up and down the plate, auto/semi-auto inking, automatic display of production and speed, and setting of the quantities.
3. All the drive rollers adopted high quality steel materials, hard chromium plating and the surface treated by lapping finish. The drive gears adopt high quality alloy steel, after heat treatment and lapping finish.
4. Interval of all the rollers is adjusted by high precise worm box. With three disk handle seat, convenient and swift for the corrugated board 4 colors flexo printing machine.
5. Motorized electric numerical adjust the axial and vertical movement of the knife seat and height of the carton.
6. Speed difference compensation system is equipped with Die cutting unit, Axially conjunct moving of the cam type soft roller is 40mm, uniform wear and tear, raise the occupation of the gum cover, save the cost.
3. Technical Parameters
Max sheet size(mm) | 1800/2000*800 | 1800/2200*1000 | 2500*1200/1400/1600 | 2800*1200/1400/1600 | |
Max speed(pcs/min) | 250 | 200 | 160/150/120 | 150/140/120 | |
Min sheet size(mm) | 650*270 | 650*270 | 650*330/350/400 | 650*330/350/400 | |
Cardboard thickness(mm) | 2-10 | 2-10 | 2-12 | 2-12 | |
Printing plate depth(mm) | 7.2 | 7.2 | 7.2 | 7.2 | |
Max die cutter area(mm) | 1700/1900*750 | 1700/2100*930 | 2400*1150/1310*1550 | 2700*1150/1310/1550 |
