Huge Corrugated Cardboard Flexo Printer Slotter Die Cutter 120pcs/Min

Place of Origin Cangzhou, China
Brand Name SOOME
Certification CE
Model Number 2034
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Wrapped with film
Delivery Time 30-60days after deposit
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10sets per month
Product Details
Printing Method Flexo Printing Usage For Corrugated Carton Printing Die Cutting
Printer Units 1 / 2 / 3 / 4 / 5 Colors, As Customer Need Machine Color As Customer Need
Machine Speed 120pcs/min Cardboard Thickness 2-11mm
Printing Plate Thickness 7.2mm Slotter Knives Diameter 700mm
Machine Size As Customer Need Voltage As Customer Need
High Light

cardboard flexo printer slotter die cutter


huge corrugated flexo printer slotter machine


flexo printer slotter die cutter 120pcs/min

Leave a Message
Product Description

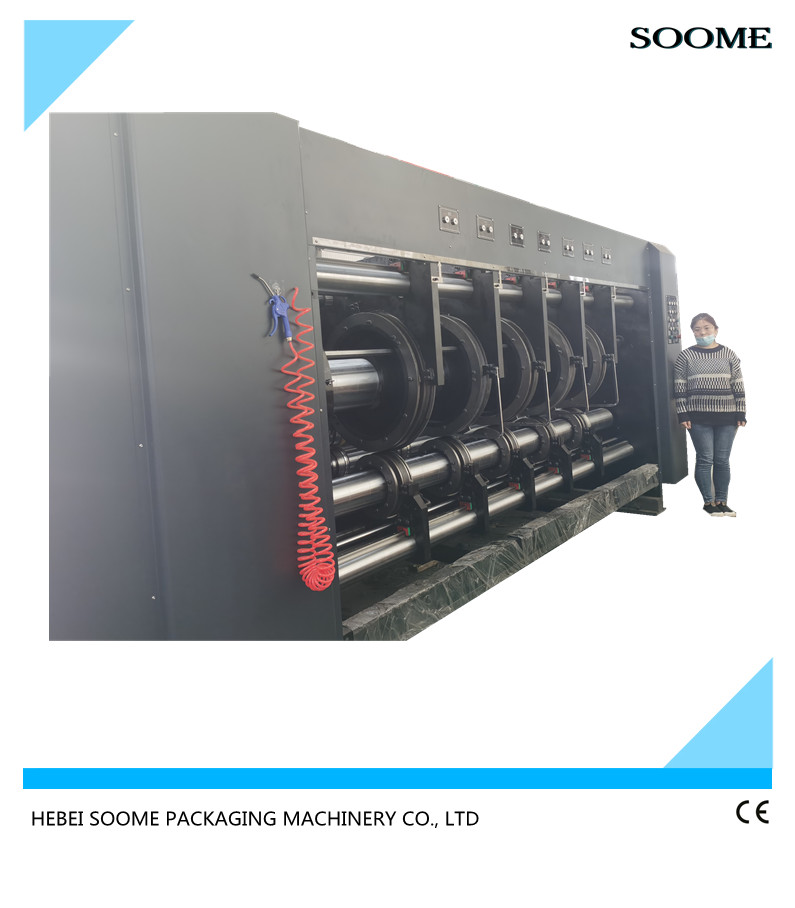

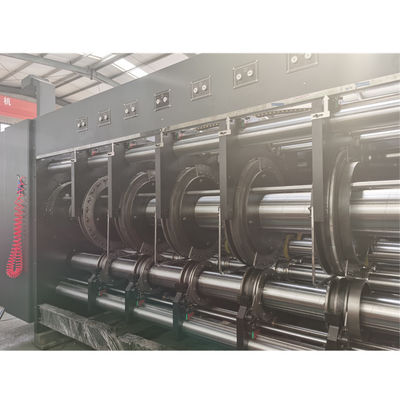

2034 Huge corrugated cardboard printing slotting machine, big cartons making machinery


I. General introduction


This is a kind of flexo printing machine for corrugated cardborad printing slotting diecutting and stacking. These are the front procedures of colorful cartons forming.


First, this machine use waterbase ink to print different patterns and words on the sheets as per customer's requirements. Second, offer special oil to cover the sheets surface. Third, dry the sheets via UV ray to let the boards drying. Forth, slotter part cut the slot on board and crease lines for folding. Fifth, cut out different shapes or holes or hand holes on the board as per customer need. The last step of this machine is to stacking the boards together into piles for easy delivery and packing.


II. Complete performance


1. Computerized can store the common orders, fast order changing, easy to operate.

2. All the driving roller are high quality steel, hard chrome plating, surface grinding.

3. The wallboard is 60mm thick wrought iron, after deal with the internal stress then processed with CNC machining center.

4. Painting technology: the parts will be treated with the procedure derusting-phosphating-paint spraying-stoving varnish to make the painting with rust proof,hard surface, and durable.

5. The complete machine with alarm bell, will be always warning in the walking time, can keep the worker safe.

6. Each unit equipped with emergency switch inside, can stop each unit moving inside to assure the inner operator safe.

7. Spraying lubrication with dual oil pump automatic circulatory system, oil level balancer to keep the oil level balance.

8. The stored orders in the computer system can reach 999 (Main controlled computer on the slotter operation side).


All the draught fans for main motor, feeder, printer, glazer, drier units adopt frequency converter to control the air volume, adjust more exactly, make sure the feeding smoothly, can save more electricity and cost.


III. Technical parameters





Model 2034



Inner wallboard width

mm 3400


Max. Paper size



Max. Diecutting area

mm 1800x3200


Max. Paper size (skip feeding)

mm 2250x3300


Max. Printing area

mm 2000×3200


Min. Paper size



(complete sheet printing)


Thickness of printing plate

mm 7.2


Design speed

sheets/min 150


Economic speed

sheets/min 120


Main motor power

KW 45


Total power

KW 240





Overdye precision

mm ±0.75


Slotting/diecutting precision

mm ±1.5



mm 7000x5600x3000


IV. Slotting unit


1. Single shaft with dual cutter. Electric adjust the carton height with high precision.


1)Creaser and pre-creaser,above crease wrapped with optimal rubber will not damage the paper. Creaser shaft and lower knife shaft are more thicker and heavier.

2) Creaser, pre-creaser, cutter holder move together by NC controller. All electrical and computerized adjustment.

3) Spacing adjustment of creaser and pre-creaser adopt self-locking mechanism, scope is 0-11mm.
