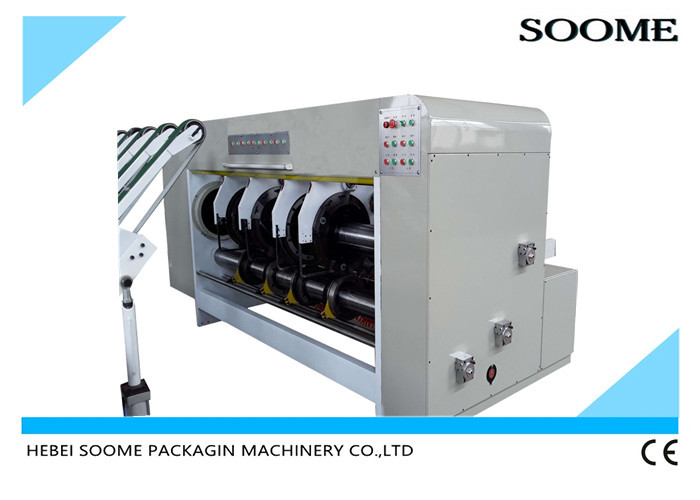

Lead Edge Feeder 10m/Min Corrugated Flexo Printer Slotter Machine

Lead Edge Feeder Corrugated Cardboard Slotter Plant Flexo Printer Slotter Die Cutter

Summarize:



This slotter die cutter machine wall board material is casting iron, thickness 40mm, will not be out of shape. Spot facing work adopt high precision display processing, center distance of holes can reach 0.01mm.

Helical tooth gears on main drive which adopted 45# steel, treated with gear shaving with high precision facility, closed spray lubrication system, put oil before run the machine, can lower down the noise, decrease the abrasion of gears, and prolong the lifetime of gears. This printer slotter die cutter machine all bearings use HRB brand. Corrugated board cutting machine adopt electrical counter, can control the paper qty exactly. Corrugated board cutting machine use good quality electrics of Chinese famous brand.



1. Upper slotting shaft:external diameter156mm, upper slotter holder:external diameter 388mm,geared ring adopt globular graphite material,It’s wear-resisting.

2. Lower slotter shaft:110mm, slotting knife:width 7mm

3. Corner cutter holder: width 50mm. The slotting knife holder and creasers move in transverse direction synchronously.



Corrugatd board cutting machine adjust 4 slotting knives by manual together to change the slotting depth together, finish the carton height adjustment in one time together.

Manual transverse moving of 4 slotting knives separately. Knives and creasers left-right moving together.

This printer slotter die cutter machine provides various functions such as electric adjustment of the paper feed section, automatic air suction, paper feeding, cutting, creasing, grooving and beveling. Ventilation wells, hand hole devices and trimming knife holders can be arbitrarily removed when needed

Three sets of slotting, one set of chamfering, two-component paper, four sets of pressing lines; adjustment of shaft and roller type hard chrome polishing treatment;gear lubrication using lubricating oil circulation system to reduce noise and extend gear life

PLC adjustment box height, synchronous traverse, inverter control motor, electric phase.360 degree electric adjustment of the position of the shaper cutter (ie phase), quick adjustment, improve work efficiency and reduce waste; four sets of tools for the height of the carton can simultaneously Manual adjustment

Electric traverse adjustment to adjust the indentation, the spacing between the left and right slots, ensure the two accurate (no dislocations) and reduce waste through the four wheels operated simultaneously

Equipped with electronic counter, preset order quantity, planned production, convenient quantity statistics

Can be installed with punching device



Technical index:



Item	SZ-1600
Max Board Size	1600×2500mm
Min Board Size	400×640mm
Max Slotting Depth	400mm
Slotting Width	7.5mm
Min Side Size	60mm
Min Front Size	260mm
Max Processing Capacity(sheets/min)	110pcs/min
Main Motor Power	5.5kw
Dimensions	3100×3800×2020mm
Weight	6500kg
