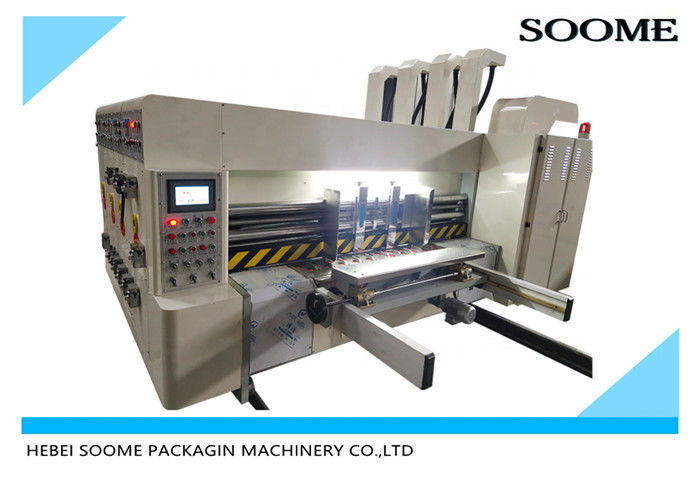

1-10mm Thick Fruit And Food Carton Box Flexo Printer Slotter Die Cutter

1-10mm Thick Fruit And Food Carton Box Flexo Printer Slotter Die Cutter

  • 1-10mm Thick Fruit And Food Carton Box Flexo Printer Slotter Die Cutter
  • 1-10mm Thick Fruit And Food Carton Box Flexo Printer Slotter Die Cutter
  • 1-10mm Thick Fruit And Food Carton Box Flexo Printer Slotter Die Cutter
1-10mm Thick Fruit And Food Carton Box Flexo Printer Slotter Die Cutter
Product Details:
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: SMYS-TB-2300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case or film.
Delivery Time: 14 days after deposit
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Product Name: Lead Edge Feeder Flexo Printer Slotter Die Cutter Condition: New
Driven Type: Manual Adjustment Type: Flexo Printer Slotter Die Cutter
Function: For Printing Slotting Die Cutting Color: Customer's Request
Keywords: Flexo Printing Machine Voltage: 220V/380V/440V
Place Of Origin: Hebei, China Automatic Grade: Semi-Automatic
Highlight:

1mm flexo printer slotter die cutter

,

10mm flexo printer slotter die cutter

,

carton box flexo printer slotter machine

1-10mm Thick Fruit And Food Carton Box Flexo Printer Slotter Die Cutter

1. Summarize



This flexo printer slotter die cutter machine adopts manual sheets supplying, vacuum suction type automatic lead edge feeding. Can finish corrugated cardboard printing, slotting, corner cutting, edge slitting, creasing, etc functions at the same time. Electrical carton height adjustment, equipped with ruler for easy size checking. The phase of slotting adjustment device is planetary gears structure, adopt electrical adjustment in 360 degree. Above slotter and down knife holders and creasers can move left-right synchronously manually by professional tools. It is easy and convenient in using and maintenance, small and delicate, specially for small cartons printing slotting and forming.



2. Features and Functions



1. The paper feeding shafts adopt rubbure roller with knurling, the pressure adjustment adopt eccentric wheels adjustment, left-right eccentric wheels pressure can be adjusted synchronously.

2. The sheet pushing plate of the flexo printer slotter die cutter adopt left right two sides baffles and back guard to fix the sheets, can avoid the above sheet moving malpostion when feeding the bottom sheet which will bring the wrong slotting. The baffles can fix different quality sheets, make sure the machine can feed in more steadily.
3. The slotting holders adopt globular graphite to process, the slotting knives for this flexo printer slotter die cutter adopt tooth type semicircle knives to remove paper waste, after slotting, the sheets will move to slitting shafts, the edge slitting knives will cut the two edge of board more tidily and smoothly. (Remark: install the creasers and edge slitting knives on the same shaft for easy adjustment.)
4. After the cardboard slotting, corner cutting, creasing lines, edge slitting finished, the cardboard will be output by the paper guiding shafts. The machine equipped with variable frequency governor can adjust machine speed as you need.
5. The flexo printer slotter die cutter adopt electrical planetary gear phase adjustment to adjust the sheets size, can adjust directly without machine stop.
6. The rotary diecutter for this flexo printer slotter die cutter can die cut different shape cartons. Without the slotting rings.



3. Technical Parameters



Model Model 2000
Max Machine Speed 100-120piece/min
Max Feeding Size(L*W) 1850*950mm
Width of Printing Roller 1700mm
Min Feeding Size(L*W) 470*250mm
Min Slotting Interval 140*40*140*40mm














1-10mm Thick Fruit And Food Carton Box Flexo Printer Slotter Die Cutter 0
