Place of Origin: | Hebei Province China |
Brand Name: | SOOME |
Certification: | CE Certification |
Model Number: | SMZX-BZD-2800 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | wooden case and filling with plastic film |
Delivery Time: | 24 after depoist |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 per/mounth |
Speed:: | 60m/min | Feeding Way:: | Semiautomatic |
---|---|---|---|
Automatic Grade: | Semi-Automatic | Warranty: | 1 Year |
Weight:: | 3000kg | Condition:: | New |
Packaging Type: | Cartons,Case,Film | Max. Size (L+W) X 2: | 2800mm |
Driven Type: | Electric | After-sales Service Provided: | Online Support |
Highlight: | semi auto folder gluer machine,corrugated carton folder gluer machine,corrugated carton folding gluing machine |
Usage and Features:

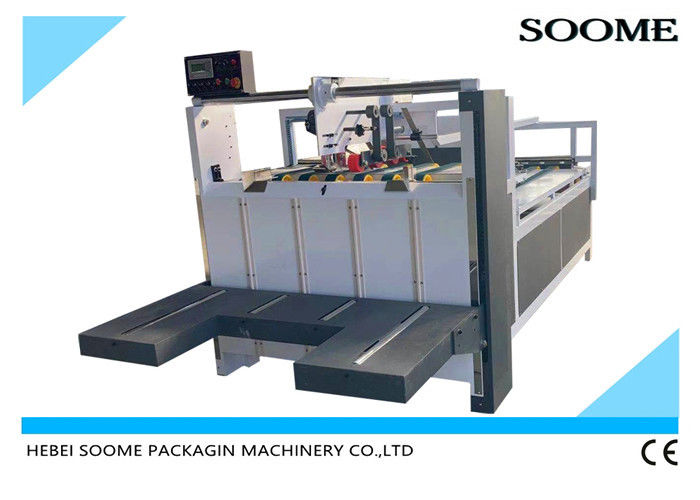

This Semi-auto folder gluer machine is suitable to various kinds of corrugated cartons folding gluing. Easy to operate and learn, no need experienced workers. Order changing fast within one minute.
The minmum. width and height of finished box can reach to 260mm which is a good choice for carton manufacturer.
Main structure:
This semi-auto folder gluing machine composed of main machine frame, 2 small conveyor frames.
Main machine frame:
Semi-auto folder gluing machine frame, ascend and descend worktable, front part convey equipment, front part correction equipment, middle part convey equipment, middle part press together equipment, finished product side output equipment, electrical controlling device.
Electric elements and material:
Semi-auto folder gluing machine adopted imported electrics, Simens electric appliance, Omron optoelectronic switch, TOKY counter, Taiwan Mingwei switch power supply.
Belt Model:
Feeding Belt:L1100mm×W100mm×Thickness 4mm×4 pcs
Conveying Belt:L 2520mm×W 40mm×Thickness 5mm×4 pcs;
Pressing Belt:L 4905mm×W 1030mm×Thickness 2mm×1pcs;L 5890mm×W 1030mm×Thickness 2mm×1pcs
1. The main drive is driven by a chain. The sprocket consists of 5 points, 20 teeth, Ø35 and Ø30, and 17 teeth, Ø55.
Medium wheel 14 tooth Ø35 medium wheel 30 teeth Ø30, 4 points 20 teeth Ø22 20 teeth Ø38 3 points 21 teeth Ø25 32 teeth Ø12 14 teeth Ø22
The above sprocket wheels are made of 45# material and then quenched by high frequency to extend their service life.
2. This folder gluing machine main motor power is 2.2KW, the compression motor power is 550W, which is controlled by the inverter respectively, and can be adjusted at will; the clamping is 2 1KW servo motors, the clamping length and speed can be adjusted freely, making the cardboard intermediate counterpart more accurate.
3. The paper feeding section adopts suction and paper feeding, and two sets of 3.0KW horizontal vortex suction pump greatly enhance the strength of suction, thus ensuring the stability of paper conveying. The paper feeding section feeds paper by two 1KW servo motors, and feeds paper. Adjust the length and length to ensure the accuracy of paper feeding.
4. The intermediate drive system is driven by a 2.2KW Mitsubishi geared motor, and there is also an electromagnetic clutch and electromagnetic brake as a backup drive.
5. Gluing part: The middle butt part is fixed by cold and heat. The hot melt adhesive plays a role in shaping. The cold glue acts as a bonding. It can be said to be double-bonded, eliminating the single hot melt adhesive bond due to seasonal changes. The phenomenon of cracking of the rubber and the food box as soon as it enters the cold storage hot melt adhesive.
6. Intermediate shaping part: the left and right sides are clamped by servo motor. The clamping adopts high-speed bass ball screw and special slider sliding to ensure the sensitivity and accuracy of clamping, and also extend its service life and ensure the shape of the cardboard. Accurate and greatly improve the yield of the carton.
Technical parameters:
SMZX-BZD-2800 | |
Max. Size (L+W) x 2 | 2600mm/2800mm |
Min. Size (L+W) x 2 | 340mm |
Max. Size (W+H) x 2 | 1515mm |
Min. Size (W+H) x 2 | 260mm |
Feeding pile height | 1000mm |
Motor power | 4kw |
Machine length | 5300mm |
Machine weight | 2150kg |
Machine speed | 0-75 m/min |
