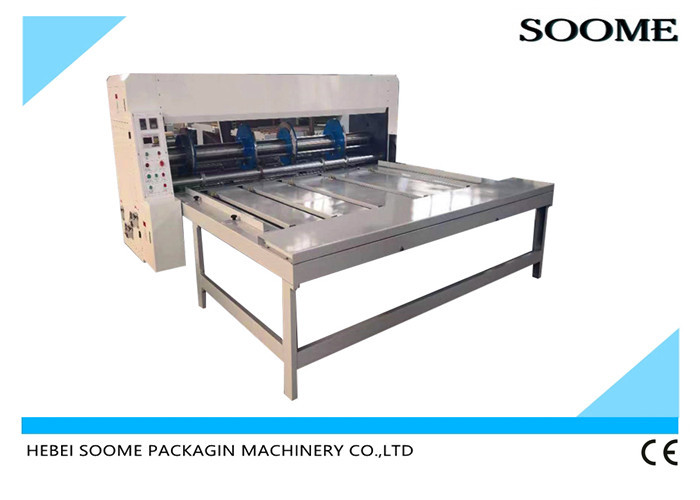

100m/Min Carton Slotting Corrugated Board Cutting Machine

  • 100m/Min Carton Slotting Corrugated Board Cutting Machine
  • 100m/Min Carton Slotting Corrugated Board Cutting Machine
Place of Origin Hebei Province China
Brand Name SOOOME
Certification CE Certification
Model Number 1200/2400 1450/2600 1600/2600
Minimum Order Quantity 1 set
Price negotiation
Packaging Details wooden case with plastic film
Delivery Time 24 after depoist
Payment Terms L/C, T/T, Western Union
Supply Ability 50 per/mounth
Product Details
Condition New Packaging Type Cartons,Case,Film
Warranty 1 Year Voltage 220V/380V/440
Design Speed 100-80m/min Usage Carton Slotting
Automatic Grade Automatic Machine Max Speed 80-100 Pieces/min
Min Height Of Box (H) 70mm Weight 2000KG
High Light

slotting Corrugated Board Cutting Machine

,

carton Corrugated Board Cutting Machine

,

100m/min Corrugated Board Cutting Machine
Leave a Message
Product Description

Corrugated Carton Slotting Machine Corrugated Board Cutting Machine

Summarize:



This corrugated board cutting machine wall board material is casting iron, thickness 40mm, will not be out of shape. Spot facing work adopt high precision display processing, center distance of holes can reach 0.01mm.

Helical tooth gears on main drive which adopted 45# steel, treated with gear shaving with high precision facility, closed spray lubrication system, put oil before run the machine, can lower down the noise, decrease the abrasion of gears, and prolong the lifetime of gears. Corrugated board cutting machine all bearings use HRB brand. Corrugated board cutting machine adopt electrical counter, can control the paper qty exactly. Corrugated board cutting machine use good quality electrics of Chinese famous brand.



1. Upper slotting shaft:external diameter156mm, upper slotter holder:external diameter 388mm,geared ring adopt globular graphite material,It’s wear-resisting.

2. Lower slotter shaft:110mm, slotting knife:width 7mm

3. Corner cutter holder: width 50mm. The slotting knife holder and creasers move in transverse direction synchronously.

 Corrugatd board cutting machine adjust 4 slotting knives by manual together to change the slotting depth together, finish the carton height adjustment in one time together.

Manual transverse moving of 4 slotting knives separately. Knives and creasers left-right moving together.



Technical index:







No.



Item

                      1600x2400
           1



Economic speed

40-60pcs/min
           2



Max. Feeding size

                     1600mm×2400mm
          3



Max. Printing size

                      1600mm×2400mm
          4



Suitable paper thickness

                             1-10mm
          5



Inner wallboard width

                             2400mm
          6



Knives outer diameter

                            Ø530mm































100m/Min Carton Slotting Corrugated Board Cutting Machine 0

















































































100m/Min Carton Slotting Corrugated Board Cutting Machine 1
