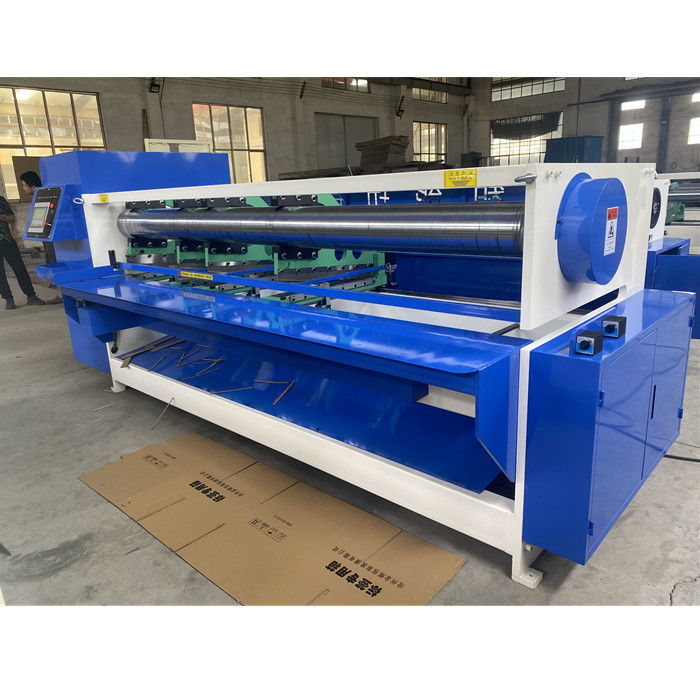

Automatic Intelligent Slitter Cutter For Big Board , Corrugated Sheet Corner
| Place of Origin | Cangzhou, China. |
|---|---|
| Brand Name | SOOME |
| Certification | CE |
| Model Number | SMQJ |
| Minimum Order Quantity | 1set |
| Price | 4200-9000USD/SET |
| Packaging Details | Wrapped with film |
| Delivery Time | 20-30 working days after receiving deposit. |
| Payment Terms | T/T, L/C, Western Union |
Product Details
| Application | Corrugated Carton Field | Usage | For Sheet Slotting And Corner Cutting |
|---|---|---|---|
| Feeding | Manual Type | Adjustment | Intelligent By Computer |
| Motor | Servo Motors Control | Voltage | 220/380/415V |
| High Light | intelligent slitter cutter,corrugated sheet corner slitter cutter |
||
Product Description
Automatic slotter for big board, intelligent corrugated sheet corner cutter
I. Performance features
1. Touch screen control, convenient, safe, fast and accurate.
2. No need experience, new workers can operate.
3. Servo motor control, adjustment time 3s is enough, exact and fast adjustment.
4. Fully automatic order adjustment.
5. No need adjust the positioning baffle.
6. Can adjust the next order without stop the machine host.
7. Intelligent machine adjustment, can decrease the harm to users in maximum.
II. Specifications
|
Model |
Min. Slot depth |
Max. Slot depth |
Min. Slot distance between knife 1-4 |
Max. Slot distance between knife 1-4 |
Max. Slot distance between knife 1-3 |
| FM2548 | 30mm | 430mm | 400mm | 2200mm | 2080mm |
| FM3048 | 30mm | 430mm | 400mm | 2700mm | 2580mm |
| FM3548 | 30mm | 430mm | 400mm | 3200mm | 3080mm |
| FM2570 | 30mm | 650mm | 400mm | 2200mm | 2080mm |
| FM3070 | 30mm | 650mm | 400mm | 2700mm | 2580mm |
| FM3570 | 30mm | 650mm | 400mm | 3200mm | 3080mm |
III. Main parameters
| Name | Parameter | Name | Parameter |
|
Work speed |
About 50pcs/min. |
Min. Slot depth |
30mm |
|
Touch screen display |
Easy to learn and operate |
Max. Slot depth |
430 / 650mm |
|
Servo motor |
INVT |
Min. Knife distance |
120mm |
|
Low voltage apparatus |
Schneider |
Cutter positioning precision |
±0.5mm |
| PLC |
Schneider |
Blade size |
480 / 700mm |
|
Frequency inverter |
Schneider |
Blade material |
Steel blade(special treatment, more durability) |
|
Rack |
Helical rack design, smaller error. |
Suitable sheet thickness |
2-12mm |
|
Main motor driving |
Belt driving, steady, lower noise |
Machine weight |
1800 / 2800kgs |
|
Feeding way |
Manual feeding |
Main motor power |
2.2kw |
|
Machine size (LxWxH) |
3400(3900)x1450x1650mm |
Total power |
5.3kw |
IV. Machine detailed photo
